ODF 19 Inch Rack
Model: 1U ODF 19-Inch Rack Mount MTP/MPO Patch Panel
With 19-Inch ODF Frame and 96 Fiber-Optic Cables for MPO/LC Connectivity
- Product Introduction
ODF 19 Inch Rack

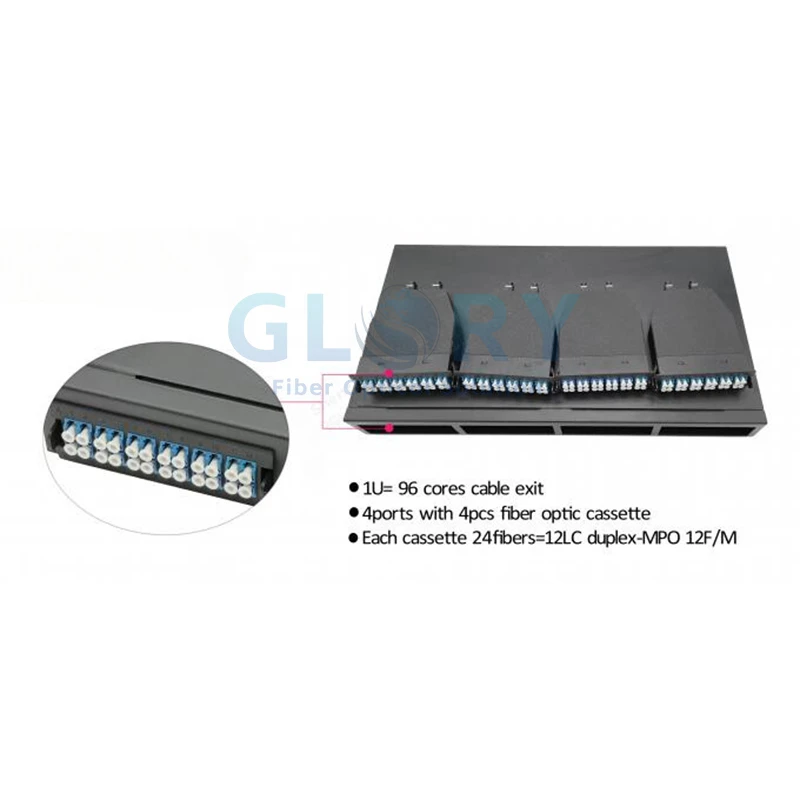

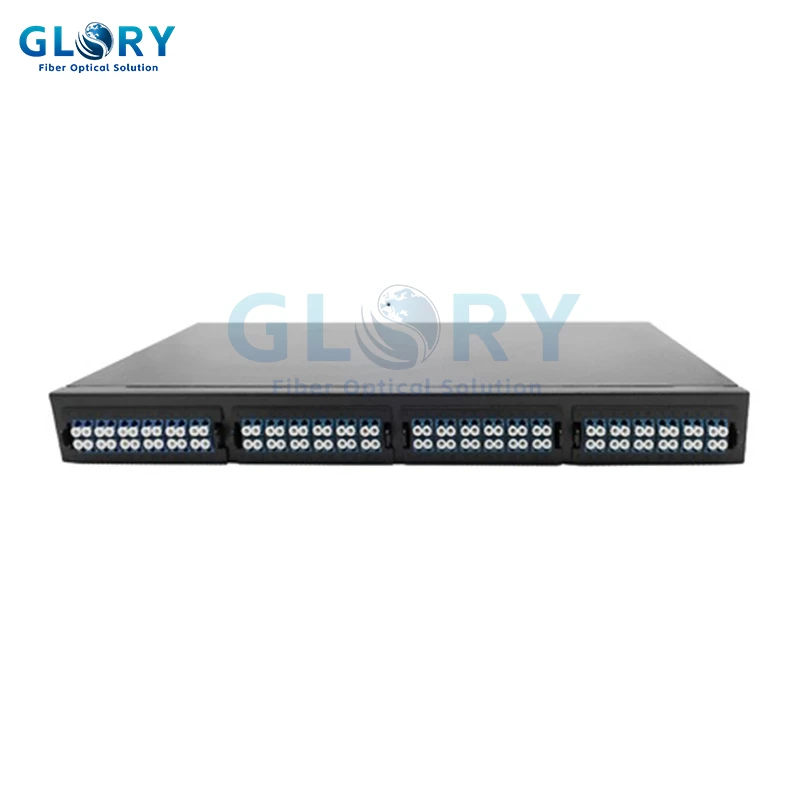

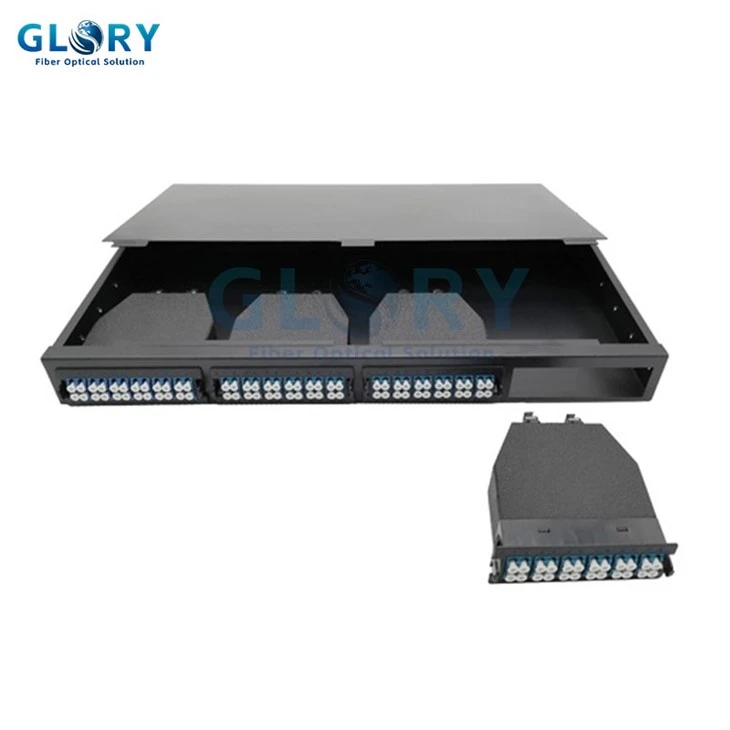

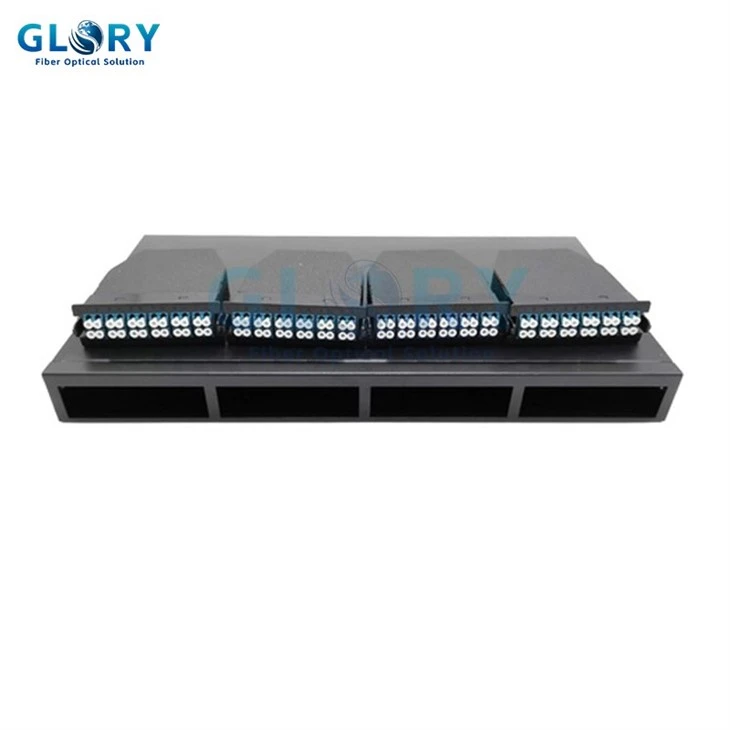

MPO/MTP ODF 19-Inch Rack - Max hold up to 4 MPO/MTP cassettes in a 19" rack-mount enclosure, 1U height. The patch panel is constructed from cold-rolled steel with a sprayed surface finish. The 4 cassettes are easy to insert and remove by hand; no screws are needed. It provides an integrated solution for MPO/MTP data center applications, combining mixed fiber connection, storage, and management in one unit. Blank panels are included for unused ports within the patch panel. The 19-inch mounting brackets are adjustable, allowing the panel to be set further back in cabinet mounting frames. Panels in 1U, 2U, 3U, and 4U heights are available for fiber expansion.
Specifications：
|
MODEL |
GL-1U-4LGX/MPO ODF 19 Inch Rack |
|

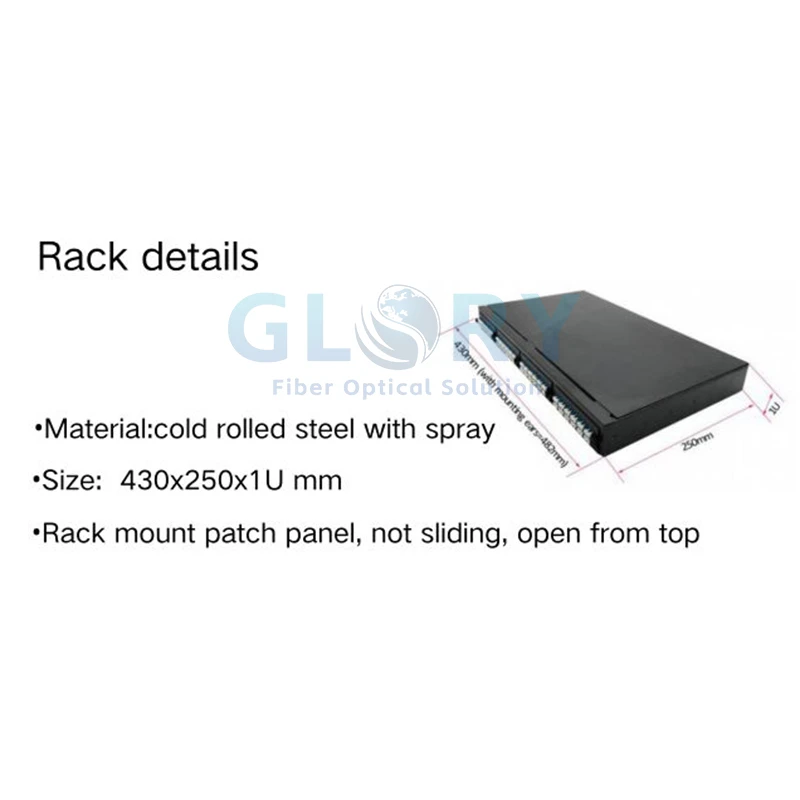

Dimension (mm) |
430x250x1U |
|
Material |
Cold rolled steel |
|
Cable ports |
4 input, 96 output |
|
Max capacity |
96 Fibers |
|
Cassette qty |
4 pieces |
|
Cassette capacity |
24 fibers |
|
Connector type |
LC duplex coupler |
|
Color |
black |
Features of ODF 19 Inch Rack：
• Easy to install and operate
• 19'' standard structure
• Rack mount in ODF frames
• Available for installation of FC/SC/ST/LC adapters
• FTTX and FTTH solutions
Applications:
- Data communication applications
- Data Centre infrastructure
- Storage Area Network-Fiber Channel
- Emerging 40 and 100Gbps Protocols compatible
More details：
• 1U rack mount patch panel, suitable for all 19 inch rack mount optical distribution frame, use mounting ears at both sides to fix on ODF.

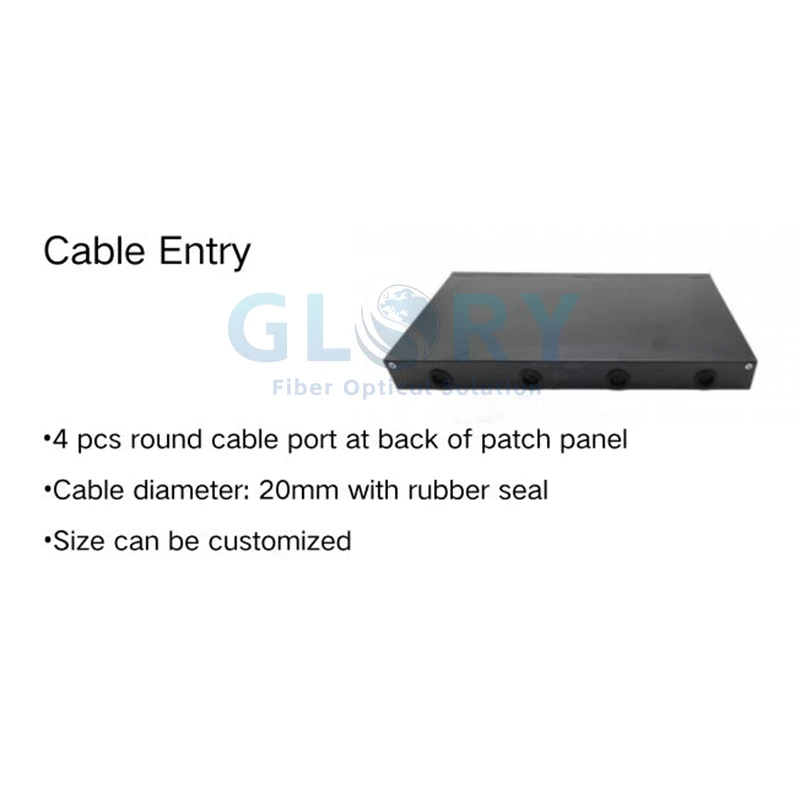

• Cable entry quantity and the cable diameter can be customized on customer request, all port will be configurated with rubber seals for dust proof.
• Each patch panel is 96cores fiber optic pigtails distribution in front, meet large capacity for data center network application.

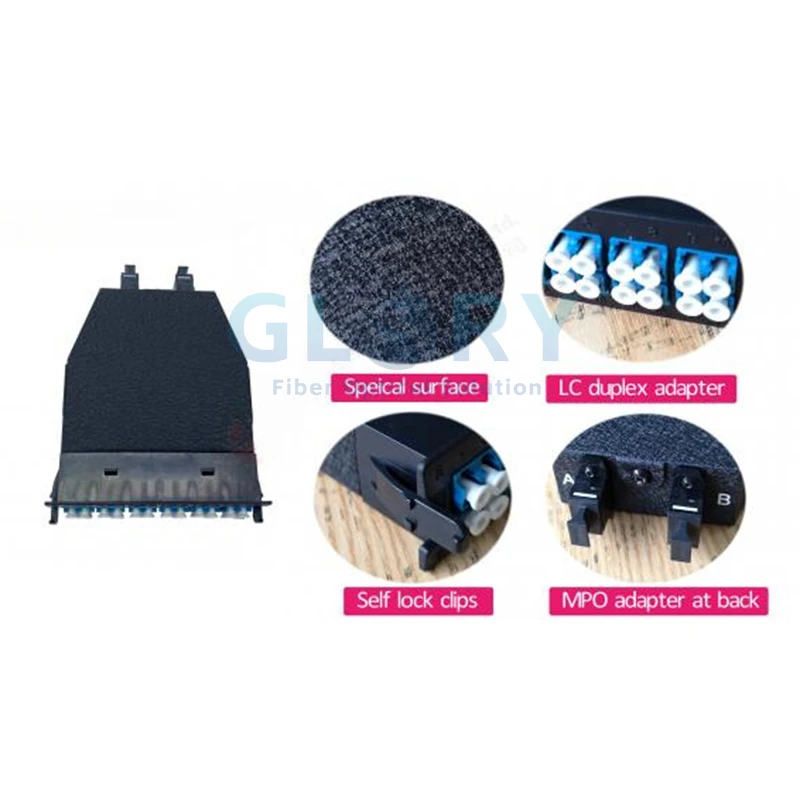

• 24 Fibers Optical MPO cassette use special materials, and LC duplex adapters without flange in front, back is 2 pcs MPO 12 cores adapter A B, inside hold 0.35meter MPO LC patch cord, this cassette can use 8 fibers MPO x 3pcs, 24fibers MPO x 1 pce instead.
