MPO Fiber Patch Panel
Model: MPO Fiber Patch Panel 1U 96-Fiber Drawer-Type MPO Cassette
A typical 1U MPO fiber patch panel conforms to the 1U 19-inch standard size. The interior can house splice trays paired with 1×N MPO fiber cable assemblies, or it can be equipped with our MPO fiber optic cassettes for integration into the patch panel.
- Product Introduction

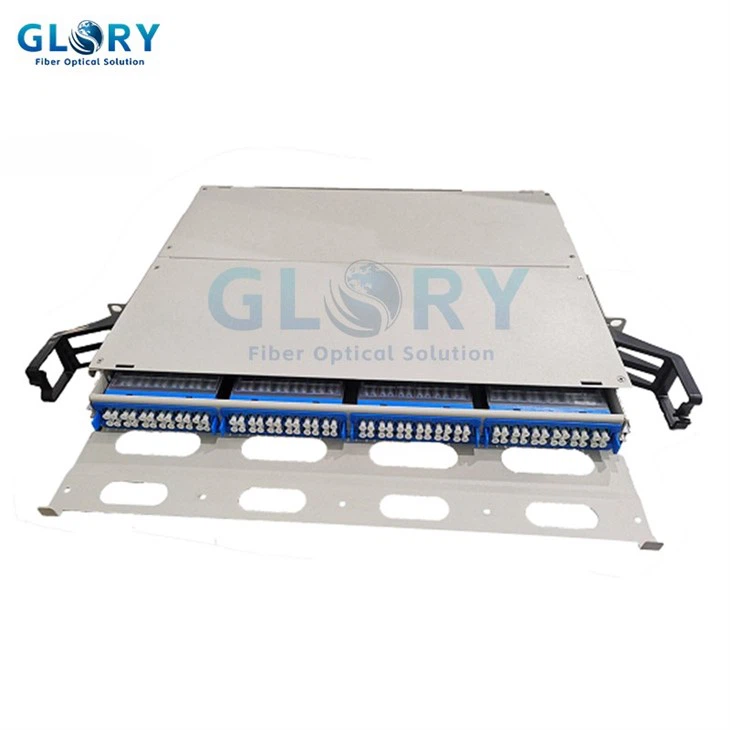

1U MPO Fiber Patch Panel

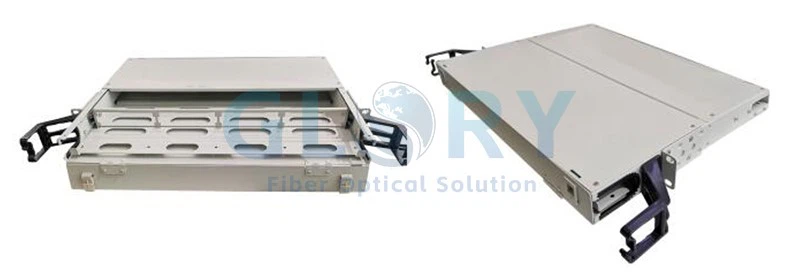

The 1U MPO Fiber Patch Panel is a high-density optical distribution unit crafted from premium-grade cold-rolled steel with an electrostatic spray-coated finish.
Engineered as a slide-out 1U chassis for 19-inch rack-mountable enclosures, it supports up to 4 MPO modules, delivering a total of 96 fiber ports and termination points. The panel integrates rear-mounted cable-securing hardware and front-access cord-organizing loops, complemented by dual protective metal covers on both faces for improved durability.
Specifications:
|
Fiber Capacity of panel |
96 fibers |
|
MPO cassettes |
4 pcs |
|
Type |
Drawer type |
|
Dimension(mm) |
482x353x43.5 |
|
Material |
Cold Rolled Steel |
|
Color |
Grey/white/ black |
|
Storage Temperature |
-45~+65ºC |
|
Application |
19inch rack mounted |
Feature of MPO Fiber Patch Panel:
• Integrate fiber patch panel with easy plug-and-play fiber cassette modules to optimize cabling management efficiency
• Lightweight and easy to install
• Simple operation and maintenance
• 19-inch standard rack structure
• Sliding tray design
• Compatible with FC/SC/ST/LC adapters
MPO Fiber Patch Panel Application:
• A MPO patch panel streamlines high-density fiber connectivity in data centers, enabling efficient cable management and fast deployment of multi-fiber networks.
• Its compact design supports MPO/MTP trunk cables, simplifying backbone cabling for Ethernet, cloud infrastructure, and network upgrades.
• Featuring sliding trays and modular cassettes, it ensures easy access, maintenance-free operation, and seamless integration with LC/SC adapters for hybrid systems.
• Ideal for space-constrained environments, it reduces clutter, minimizes signal loss, and supports scalable fiber backbone expansion.
FAQ:
What MPO connector in Fiber Patch Panel is used for 400G?
Type 1 over multimode fibre
400G over multimode is possible with Base-8 and requires MPO-12 connectors. The transceiver port is an MPO-12 with only 8 fibre positions used and produces 4 x 100G channels.
Type 2 over multimode fibre
400G over multimode uses Base-16 and requires MPO-16 connectors. The transceiver port is an MPO-16 with 8 x Tx and 8 x Rx. This transmits as 8 x 50G channels and enables one 400G port to connect to up to 8 x 50G devices.
