1U Rack

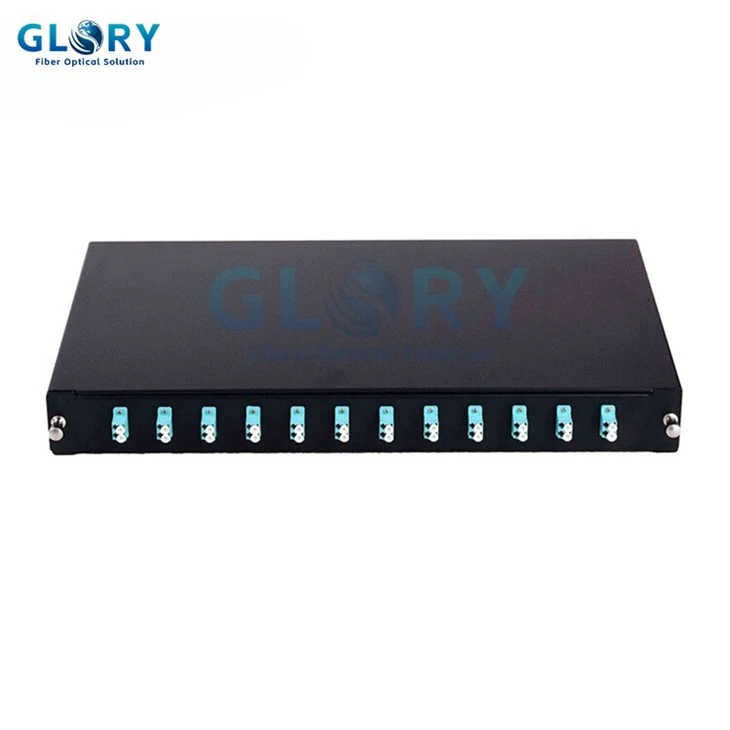

Item: 1U Rack 12 Port LC Duplex Drawer Type Fiber Optic Patch Panel

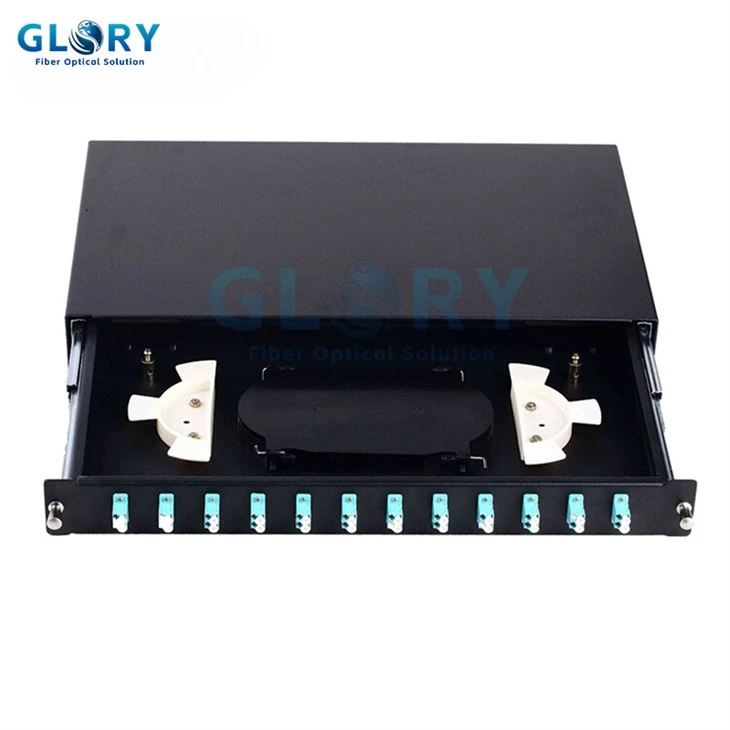

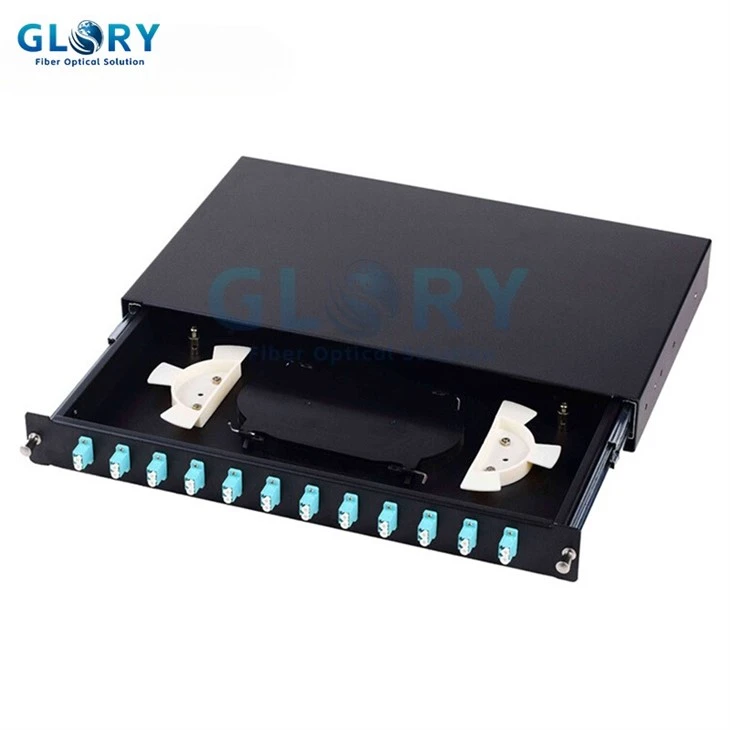

The 1U drawer rack patch panel uses drawer type guide rail and comes with lock system function to realize pull function and facilitate fiber fusion. 1U maximum to 48 core fusion fibers.
- Product Introduction
A Drawer Type Fiber Optic Patch Panel is a type of fiber optic patch panel that is designed in a drawer-like configuration. The fiber patch panel can be mounted in a rack, and the drawer can be slid out for easy access to the fiber optic connections. The drawer type fiber optic patch panel is commonly used in data centers, telecommunications networks, and other high-density applications where space is at a premium and quick access to the fiber optic connections is important. The fiber patch panels are designed to provide an efficient and organized way of managing fiber optic cables.
Specifications
|
Fiber Capacity of panel |
24 fibers |
|
Panel Connector |
12pcs SC simplex or 24 pcs LC duplex |
|
Type |
Drawer type |
|
Material |
Cold Rolled Steel |
|
Color |
Black |
|
Max. qty of splice tray |
2 pcs |
|
Storage Temperature |
-45~+65ºC |
|
Application |
19inch rack mounted |
Features
• Drawer type guide rail, pull smooth, and come with lock system function.
• Electric pacing white handle, easy to operate, not rust.
• The tail four holes, pre-installed dustproof rubber ring, can be replaced according to the requirement of waterproof plug.
• With grounding column, can effectively prevent static electricity.
Electricity Performance for 1U rack fiber optic patch panel
• Insertion loss: <0.3dB
• Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
• Insulating resistance between the box and the earthing device: 1000MΩ /500VDC
•Voltage- resistance between the box and the earthing device: Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.
Application of 1U Rack Fiber Patch Panel
• Telecommunications subscriber loop
• Fiber to the home (FTTH)
• LAN/WAN
• CATV
