Duplex Fiber Patch Cable

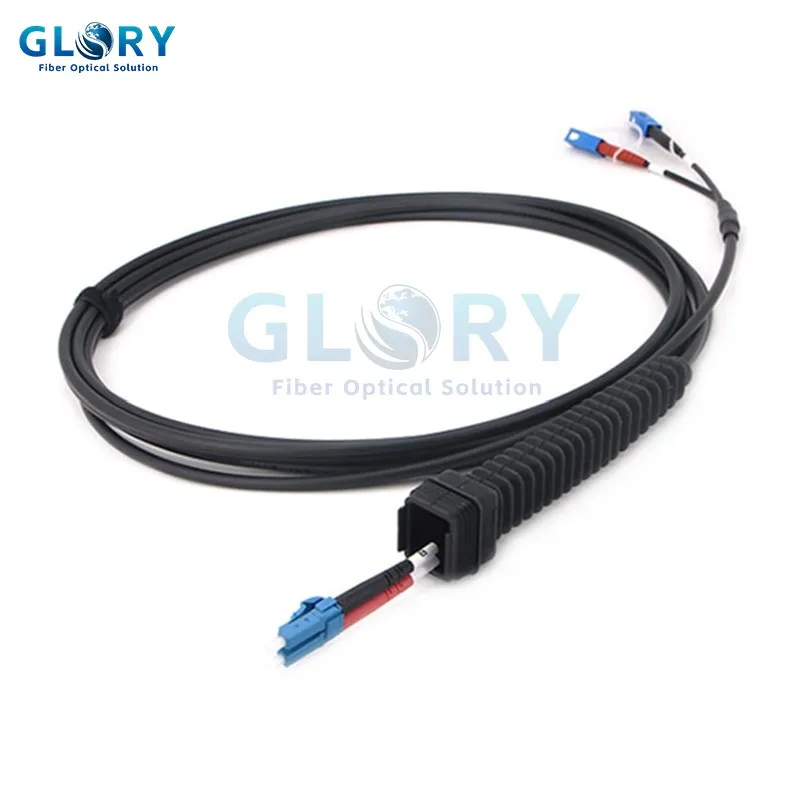

Item: NSN(LC)-NSN(LC) SM Duplex 5.0mm Fiber Patch cord FTTA Uniboot Jumpers Cables
- Product Introduction
Waterproof Duplex Fiber Patch Cable are designed to fit for outdoor applications. The strong PE jacket and armored structure can resist high temperature and suit to use in harsh environment.
IP67 LC to standard E2000 duplex singlmode waterproof fiber patch cable with LC angled 90° with NOKIA compatible waterproof sealing on one end of the cable and standard E2000 connector on the other end. The connector is designed to exceed the requirements of ODVA, and meet IP66/67 environmental sealing ratings and are the ideal choice for a low cost and easy to use solution in industrial, fiber to the Antenna, or any other harsh environmental applications. The NSN(LC)-NSN(LC) SM Duplex 5.0mm Fiber Patch cord is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. IP67 LC – E2000 single mode duplex waterproof fiber optical cable will not get damage even stepped, and are anti-rodents, and suit to use in harsh environment.
Specification:
|
Product Name |
NSN(LC)-NSN(LC) SM Duplex Fiber Patch cord |
|
Fiber Type |
SM: G657A1/G657A2, MM:OM1/OM2/OM3/OM4 |
|
Fiber Count |
Duplex |
|
Cable Diameter |
5.0mm/7.0mm |
|
Outer Jacket Material |
LSZH |
|
Jacket Color |
Black |
|
Connector |
Connector A: IP67 Waterproof NSN Connector B: MSN, LC, SC, ST, FC |
|
Insertion loss |
SM/UPC≤0.3db MM/UPC≤0.3db |
|
Return Loss |
SM/APC≥60dB SM/UPC≥55db MM/UPC≥35db |
|
Cable Length |
1~150m or Customized |
|
Branch Length |
Customized |
|
Cable Type |
Armored or Un-armored |
|
Mechanical life |
500 mating cycles |
|
Working Temperature |
-20°C~+70°C |
|
Storage Temperature |
-20°C~+70°C |
|
Tensile Data |
Tensile between junction and fiber cable≥100N |
Features of NSN(LC)-NSN(LC) SM Duplex 5.0mm Fiber Patch cord:
- High temperature stability, low insertion loss
- Water proof, dust proof and corrosion resistant
- Bump resistance – 4000 bumps @ 40g acceleration
- Easy operation, reliable and cost-effective installation
- Free fall resistance – 500 falls onto concrete from 1.2M height
Applications:
• Multi-purpose Outdoor.
• For connection between distribution box and RRH(RRU).
• Deployment in Remote Radio Head cell tower applications.
