ST LC Fiber Patch Cable

Model: Fiber Patch Cable LC/UPC-ST/UPC G652D SM DUPLEX 2.0mm LSZH 1M

  • Product Introduction



LC/UPC-ST/UPC SM DUPLEX Fiber Patch Cable



​​ST LC Fiber Patch Cable​​ stands out for its ​​minimized signal loss when bent or twisted​​, streamlining fiber optic installation and maintenance. This cable optimizes space utilization in high-density cabling environments such as data centers, enterprise networks, telecom rooms, server farms, and cloud storage networks. It also simplifies the interconnection of pre-terminated cassettes across critical distribution areas, including main distribution, horizontal distribution, and equipment distribution zones. Designed to meet the demands of diverse networking scenarios, the ST LC Fiber Patch Cable delivers both ​​efficiency​​ and ​​high performance​​.



Specifications:



Parameter

LC UPC

ST UPC

SM(OS2) G.652.D /G.657.A1 / G.657.A2

Operating Wavelength(nm)

1310-1550

Insertion Loss (dB)

≤ 0.3

≤ 0.3

Return Loss (dB)

≥ 55

≥ 50

Repeatability (dB)

≤ 0.1

≤ 0.1

Interchangeability (dB)

≤ 0.2

≤ 0.2

Tensile Strength (N)

≥ 1000

≥ 1000

Operating Temperature (℃)

-20 ~ +85

-20 ~ +85

Storage Temperature (℃)

-40 ~ +85

-40 ~ +85



Connector Specification:



Connector Type

LC



product-246-111

LC (Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections,
SFP and SFP+ transceivers, XFP transceivers

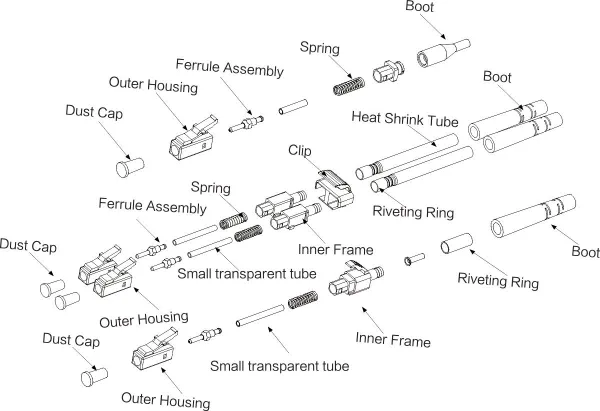

product-600-411

Connector Type

ST



product-236-93

ST (Straight Tip)
Typical Application: Datacom

product-600-412



Features for ST LC Fiber Patch Cable:



• ​​A flame-retardant PVC (Riser) jacket enhances safety​​
• ​​Precision-engineered zirconia ferrule connectors ensure minimal signal loss​​
• ​​Duplex zipcord improves mechanical performance and reduces crimping risk​​
• ​​Optical testing guarantees reliable network performance​​
• ​​Suitable for aerial, direct-buried, and duct installations​



Applications for ST LC Fiber Patch Cable:



• Data centers

• Enterprise networks,

• Data center

• Telecom rooms

• Server farms

• Cloud storage networks
