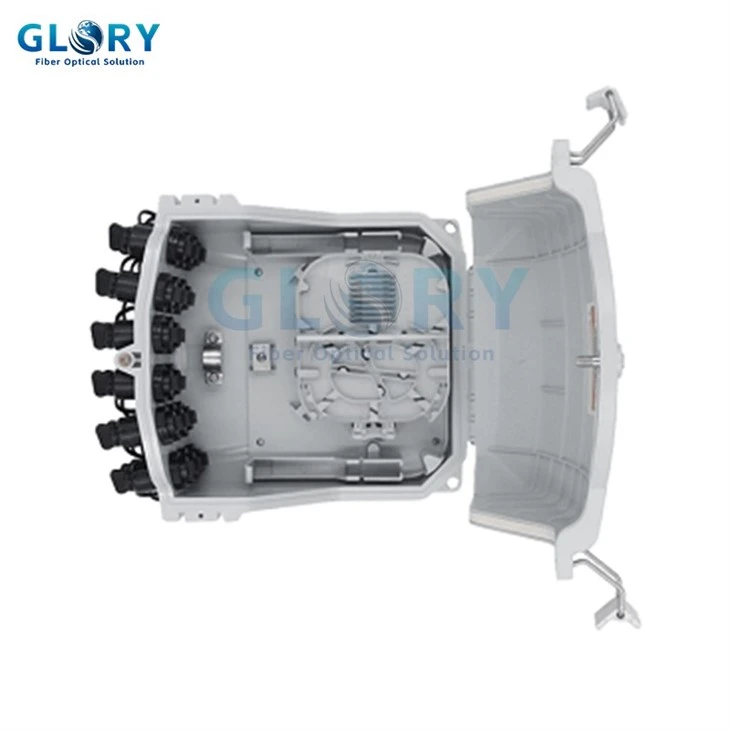

Ftth Termination Box
Model: Ftth Pre-connectorized Terminal Box GL-FTB-18D
Adapter: 18pcs Mini SC/APC waterproof adapters
Material: PC/ABS
Protection Level: IP55 Indoor/Outdoor
- Product Introduction

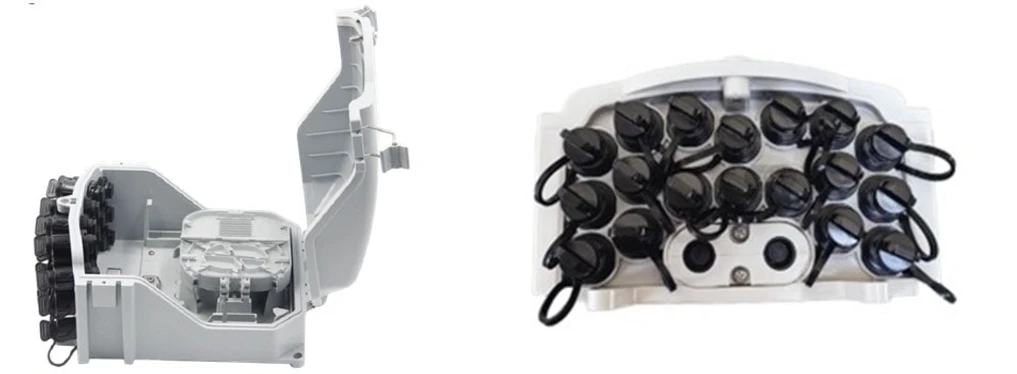

18 Ports Ftth Pre-connectorized Terminal Box
The Ftth Termination Box GL-FTB-18D is used as a termination box for the feeder cable to connect with drop cable in FTTx communication network systems. Fiber splicing, splitting, and distribution can be performed in this box. It provides solid protection and management for FTTx network construction. This pre-connectorized termination box can accommodate 18 FTTH subscriber access points.
Product Details:
|
Model |
GL-FTB-18D |
Color |
Grey, Black, White. |
|
Capacity |
18 pcs waterproof Mini SC APC+24F Splice |
Protection Level |
IP55 Indoor/Outdoor |
|
Material |
PC+ABS, ABS |
Flame retardant performance |
Non-flame retardant |
|

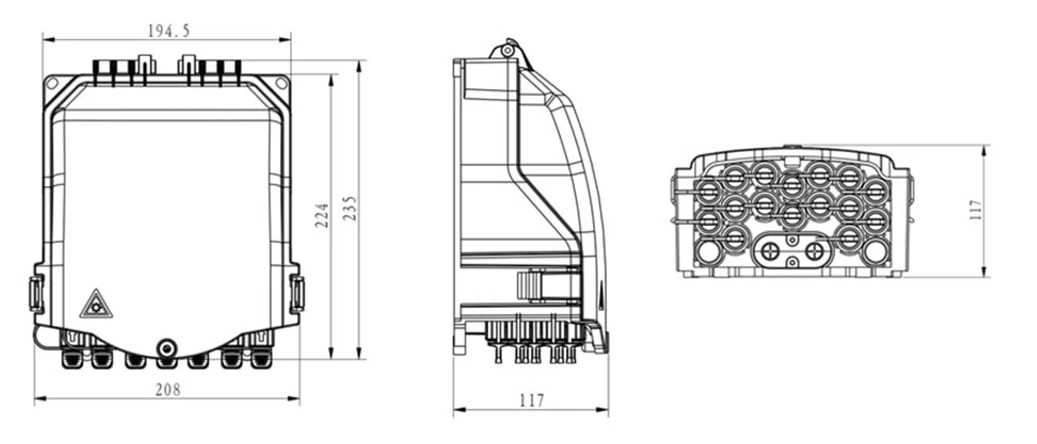

Dimension (LxWxD) |
235x208x117mm |
Suitable Splitter |
1:8 or 2:8 or 1:16 or 2:16 Blockless PLC Splitter |
|
Input Cable OD |
1 mid span (Φ16mm Max) |
Output Adapter |

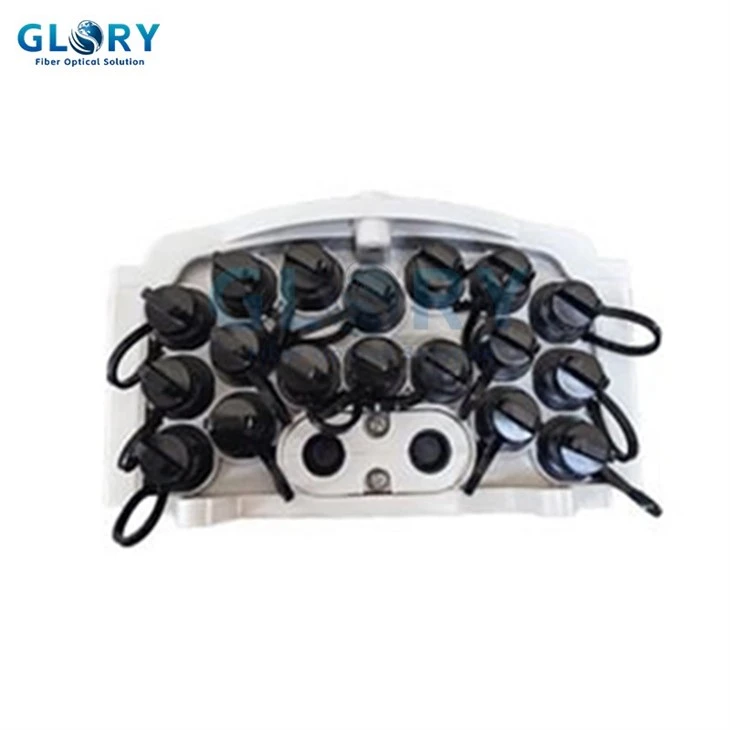

18xMini SCAPC waterproof adapter |
|
Installation Method |
Wall, Pole mounted |
Insertion loss |
≤0.2dB(1310nm & 1550nm) |
Features of Ftth Termination Box:

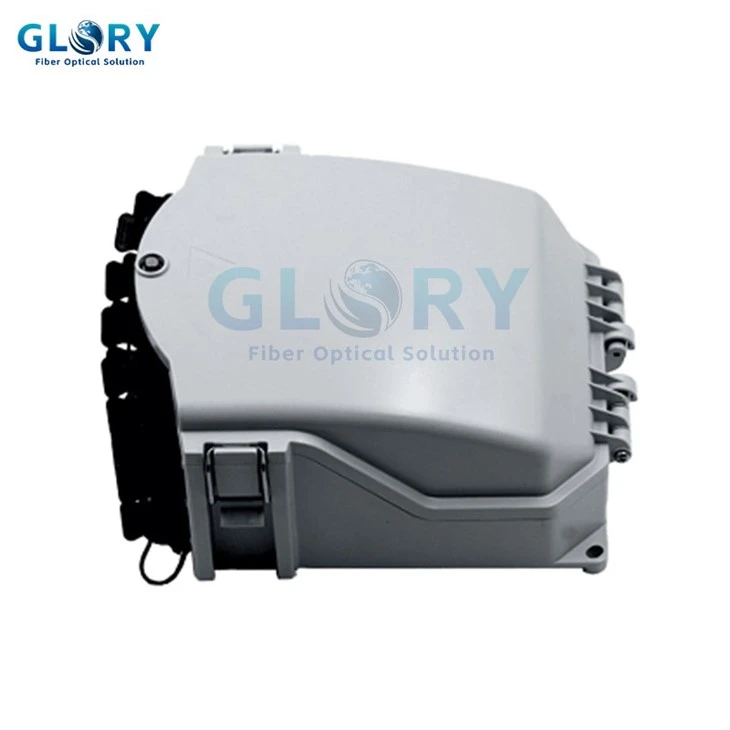

• Fully enclosed structure.
• Material: PC+ABS; Properties: Wet-proof, waterproof, dustproof, anti-aging.
• Integrated functions: Clamps for feeder cable and drop cable, fiber splicing, splice fixation, storage, and distribution.
• Cable separation: Feeder cables, pigtails, and patch cords run through separate pathways without interference; Supports micro-type PLC splitter installation; Enables easy maintenance.

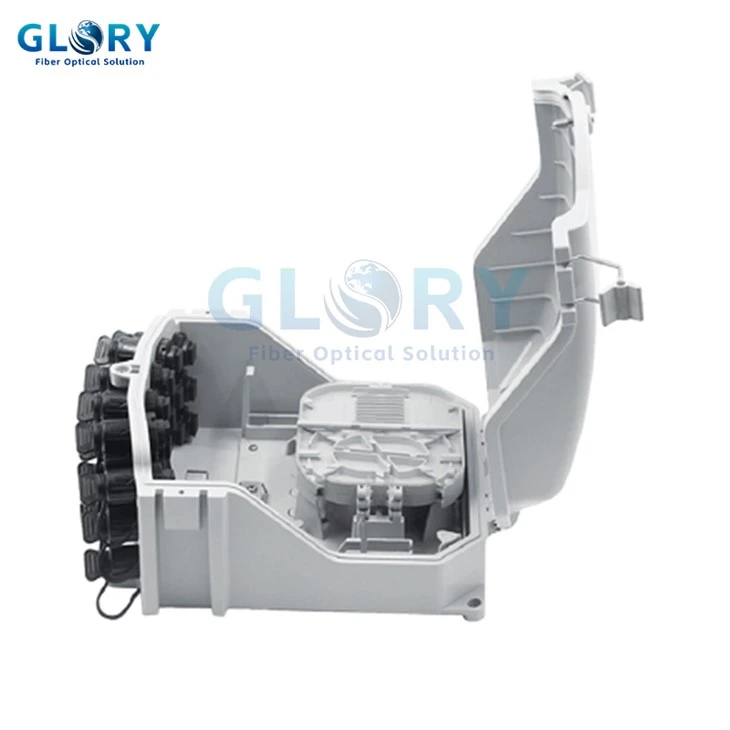

• Access design: Distribution panel flips up; Feeder cable entry via dedicated access port, facilitating maintenance and installation.
• Mounting: Wall-mounted or pole-mounted installation; Suitable for both indoor and outdoor use.

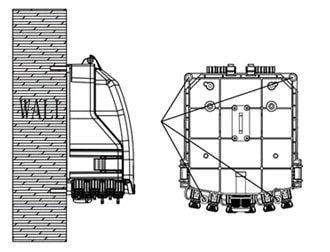

Wall-mounted Installation:
Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the FTTH termination box to match up the holes and use bolt to fasten.
