Outdoor Fiber Terminal Box

Model: 10 ports FTTX Pre-connectorized Outdoor Fiber Terminal Box GL-FTB-10A
• 10 pcs SC type waterproof adapters
• 48 fiber splices
• IP68, IK10

Send Inquiry

Product Introduction

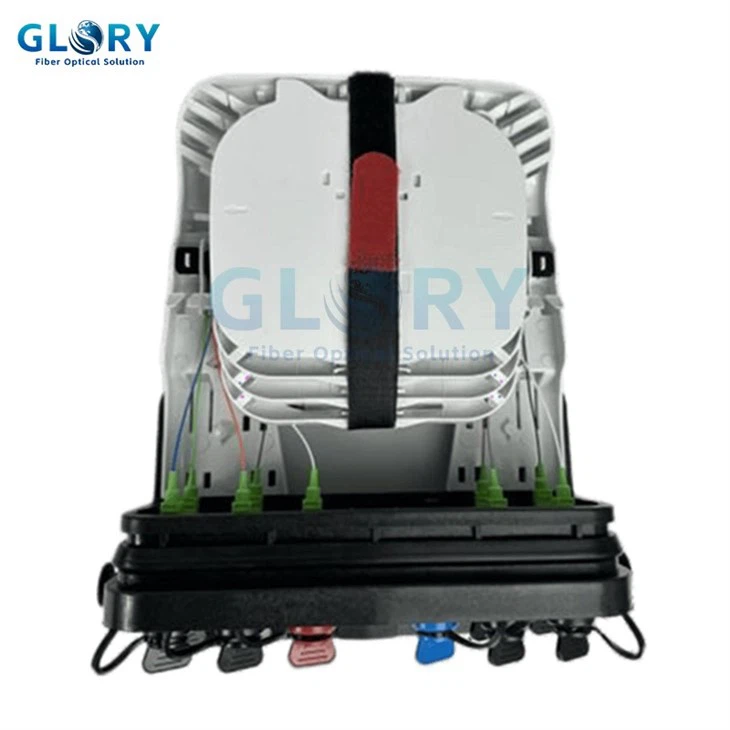

10 ports FTTX Pre-connectorized Outdoor Fiber Terminal Box

The Outdoor Fiber Terminal Box consists of 10 bayonet-type enhanced pre-connectorized waterproof SC adapters, splice trays, and a splice organizer system. All components are accessible and connectable from outside the sealed box.

This pre-connectorized terminal box is used as a termination point for feeder cables to connect with drop cables in FTTx networks. This box facilitates fiber splicing, splitting, and distribution, forming the optical interconnection point between the feeder network and the distribution network. It allows on-demand connection to a single optical outlet in the customer's home. Meanwhile, it provides solid protection and management for the FTTx network infrastructure.

The fiber terminal box is completely sealed and weatherproof. Designed for both indoor and outdoor use, the box can be pole-mounted, wall-mounted, or aerial-mounted, achieving an IP68 protection rating.

Product Details：

Model	GL-FTB-10A	Color	Black
Splice Capacity	48F splice	Protection Level	IP68 Indoor/Outdoor
Material	Plastic:PP+GF Metal: SUS304	Flame retardant performance	Non-flame retardant
Dimension (LxWxD)	262x209x94 (No Buckle) 269x237x94 (With Buckle)	Suitable Splitter	1:4 or 1:8 or 1:9 or 2:4 blockless PLC Splitter SC
Input Cable Port	1-2	Output Adapter	10 pcs Mini SC waterproof adapters
Installation Method	Overground, underground, manhole/hand hole	Sealing mode	Mechanical

Environmental requirement
Working temperature	-40℃～+85℃
Relative humidity	≤85%(+30℃)
Atmospheric pressure	70KPa～106Kpa

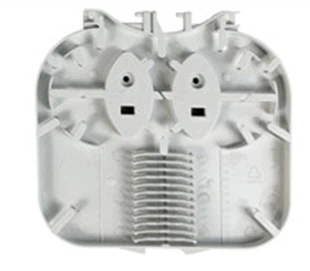

Splice tray details:

Model-R021	Dimension(mm)	134x125x8
	Material	PC+ABS, ABS
	Splice Capacity	12F, 1 slot for 1*8 or 1×4 PLC splitter
Model-R023	Dimension(mm)	134x125x8
	Material	PC+ABS, ABS
	Splice Capacity	24F
