16 Core Fiber Optic Terminal Box
Glory Optical Communication 16 Core Fiber Optic Terminal Box is widely used in Italy in conjunction with the Optotec ROE Multi-Dwelling Unit (MDU) and PTE termination box.
- Product Introduction
Product Overview
The 16 Core Fiber Optic Terminal Box represents a sophisticated solution designed specifically for Fiber-to-the-Home (FTTH) architectures in multi-dwelling unit (MDU) environments. This terminal box serves as a fundamental drop point that efficiently manages fiber optic connections for up to 16 subscribers using SC/APC connectors. The unit is engineered to handle both vertical building cabling and horizontal network distribution, making it an ideal choice for modern fiber optic infrastructure deployment.

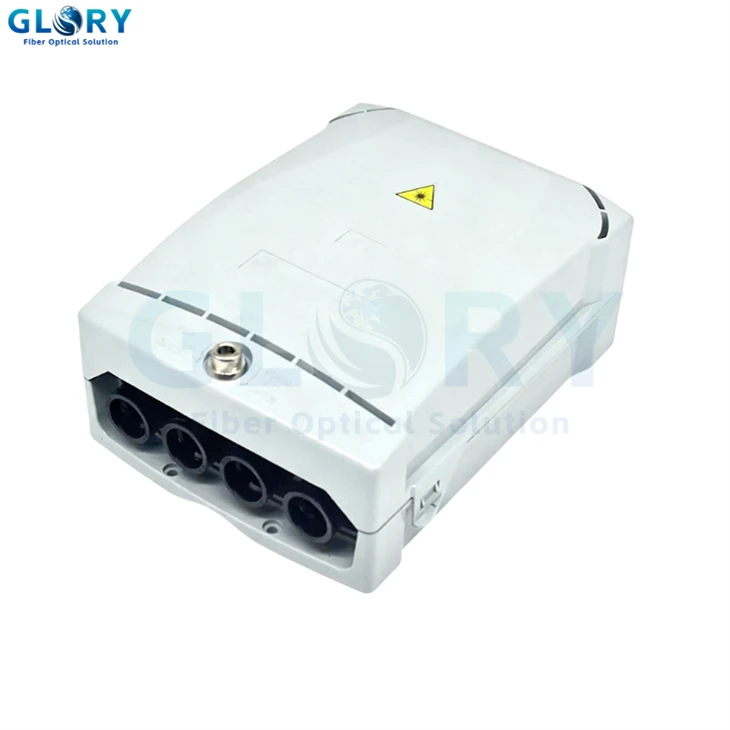

Constructed with durability in mind, the robust plastic housing provides exceptional protection against environmental factors, achieving IP56 rating for dust and water ingress resistance and IK10 rating for mechanical impact protection. This makes the terminal box suitable for various installation scenarios including indoor, outdoor, and pole-mounted applications, offering flexibility for network planners and installers.
Key Features and Benefits

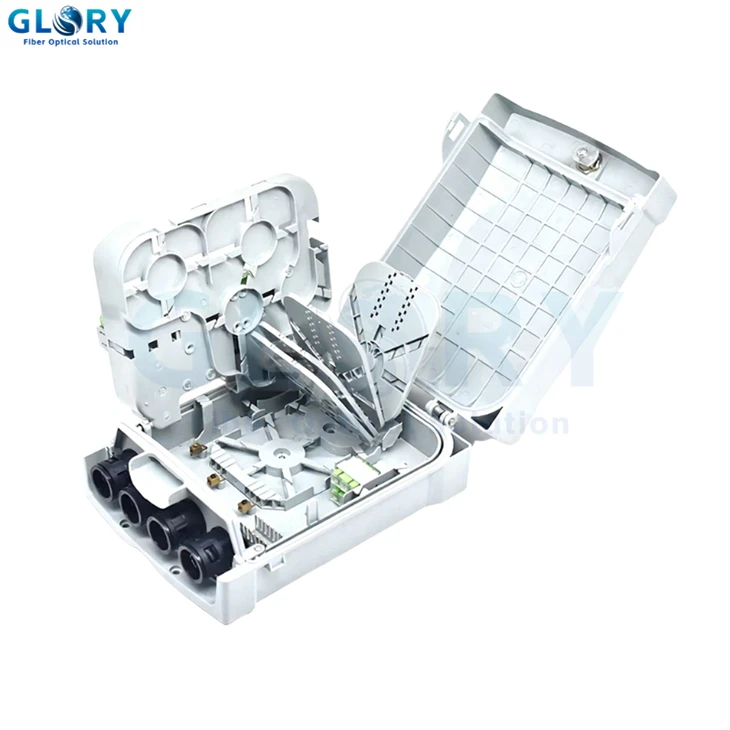

The terminal box incorporates an integrated splitter platform that supports unified 1:8 splitters, enabling efficient distribution of a single fiber input to multiple end-users. This uni-cast node design makes it an ideal distribution point for FTTH networks. The innovative "Optical Core" design allows for easy separation from the main case, facilitating flexible installation within Type B/C cabinets or hybrid columns without disrupting existing connections.

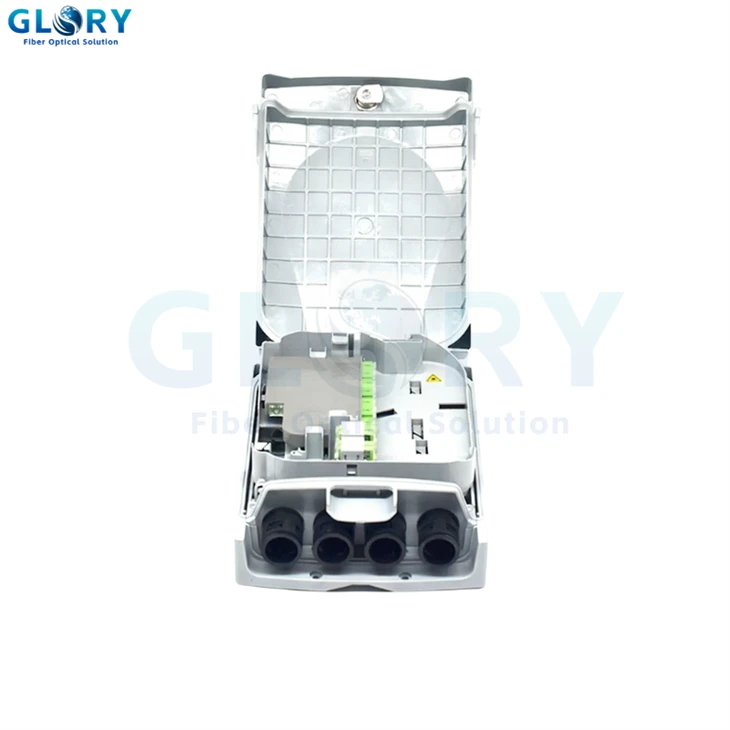

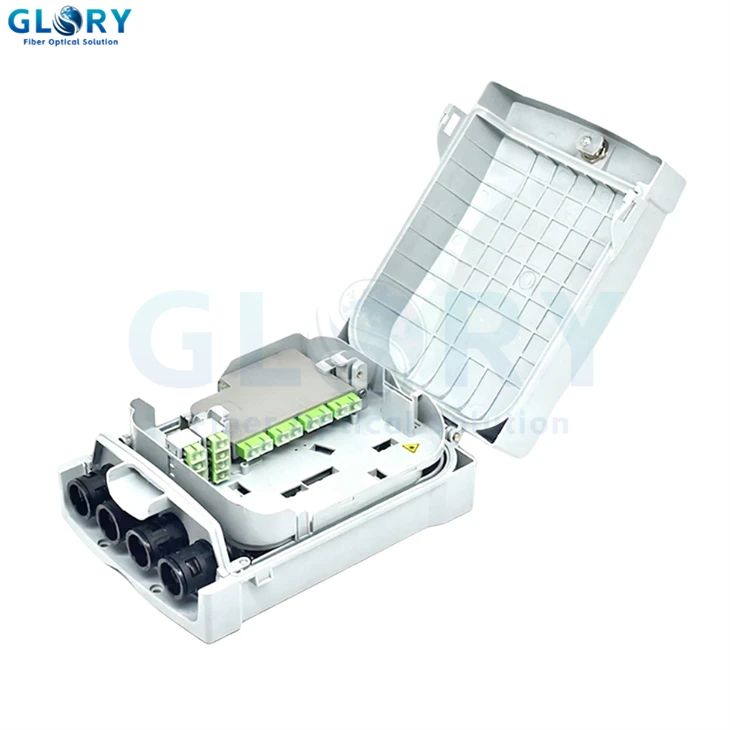

The dual-level termination rack system includes a vertical rack housing eight SC/APC flangeless adapters in sliding support for non-disruptive access, complemented by a stealth termination rack accommodating two SC/APC duplex flangeless adapters for direct connections. With four splice trays each capable of managing twelve fibers, the terminal box offers high-capacity splicing capabilities for comprehensive cable management.
Installation and maintenance are streamlined through thoughtful design elements such as spring-loaded covers, four cable entries accommodating cables up to Øext 25 mm, and pluggable optical core components that allow for easy maintenance without disturbing live connections. The compact dimensions of 270 x 200 x 108 mm combined with a minimum fiber bending radius of 20 mm ensure optimal space utilization while maintaining signal integrity.
Technical Specifications
| Specification | Details |
|---|---|
| Protection Rating | IP56 , IK10 |
| Dimensions | 270mm (H) × 200mm (W) × 108mm (D) |
| Color | Grey (RAL 7035 standard) |
| Splice Capacity | 4 splice trays, each accommodating 12 fibers |
| Environmental Rating | Operating temperature: -40°C to +85°C |
| Cable Entry | 4 entries, accommodating cables up to Ø25mm |
| Splitter Support | Integrated platform for 1:8 unified splitters |
| Bending Radius | Minimum 20mm |
| Material | Robust plastic housing |
| Installation Options | Indoor, outdoor, pole-mounted |
| Weight | Approximately 1.2kg |
Ideal Applications
This 16 core fiber optic terminal box is particularly well-suited for FTTH Multi-Dwelling Unit (MDU) vertical risers where space efficiency and reliable connectivity are paramount. Network operators will find it ideal for horizontal distribution points in both residential and commercial settings. The robust construction and environmental protection make it suitable for outdoor cabinet installations and pole-mounted deployments requiring signal splitting capabilities.
Service and Support
Glory Optical Communication Co.,Limited located in Ningbo China. We have more than 15 years of experience in the Fiber optic communication and FTTx network field, focus on production, R&D and sales of passive fiber optical products and FTTA/FTTH/FTTR solutions.
If you have any questions, we will provide technical support in a timely manner and serve you wholeheartedly.
