Optical Fibre Cable Distribution Box
Model: GL-H16X Optical Fibre Distribution Box
The Optical Fibre Cable Distribution Box is a wiring line device for user distribution in FTTH systems. It provides protection and management for fibre cables and is used for terminating, branching, and cross-connecting cables.
- Product Introduction

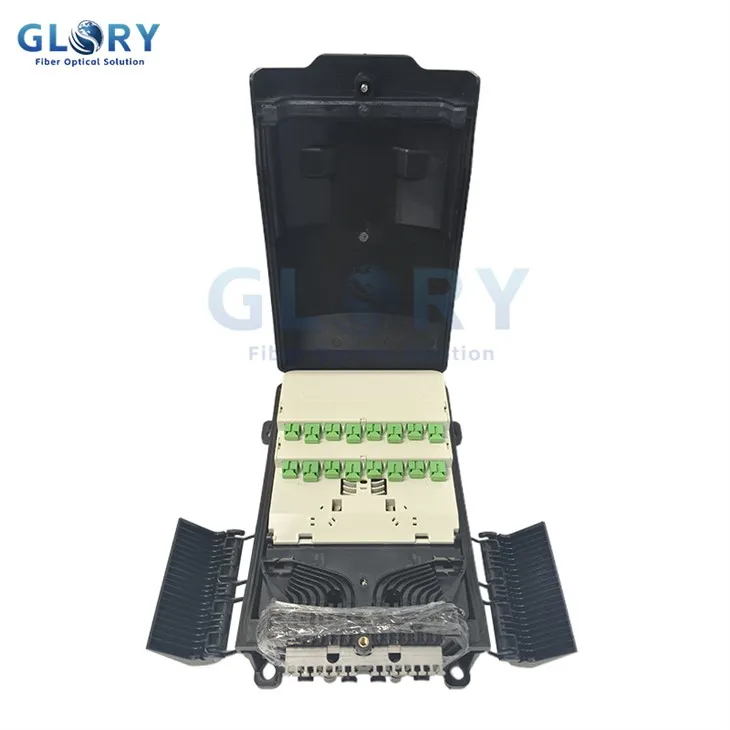

Optical Fibre Cable Distribution Box
The Optical Fibre Cable Distribution Box acts as a primary subscriber connection point within FTTH-ODN infrastructures. It is categorized as either indoor or outdoor depending on installation environment, and by functional role: distribution or optical splitter.
Within FTTx telecom architectures, the GL-H16X fibre distribution box provides a termination node linking feeder cable to drop cable. It enables fibre splicing, signal splitting, and circuit allocation, offering robust physical protection and efficient fibre administration for FTTx implementation activities.
Configuration Table:
|
Model |
Size AxBxC (mm) |
Max Capacity |
Derrick installation size DxExF (mm) |
Into the largest cable diameter(mm) |
|
GL-H16X |
300x210*105 |
16(SC/APC) |
190x227x142 |
12mm×4 PCS |

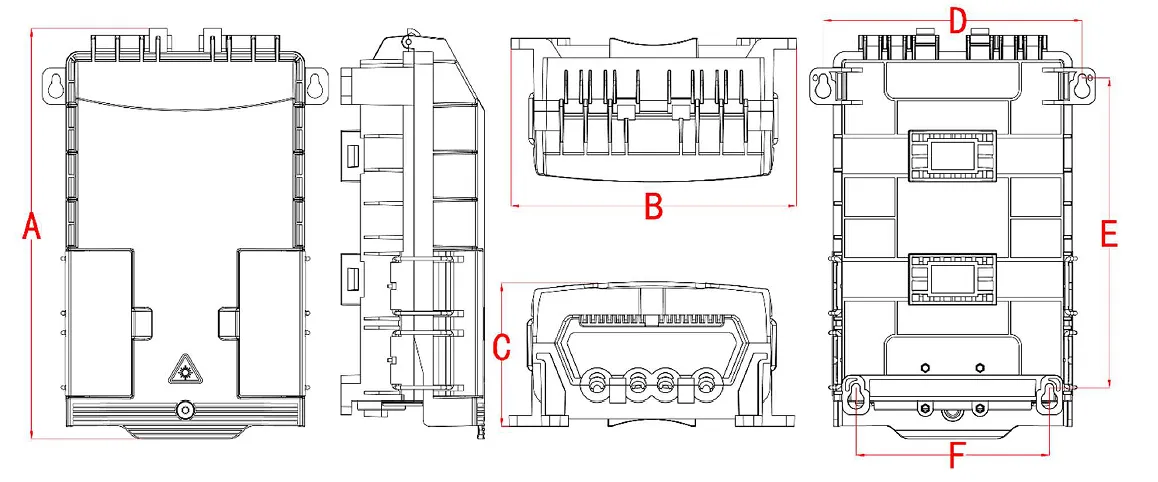

Fibre Distribution Box Dimension
Environmental Parameters
• Operating temperature：-40℃～+65℃
• Relative humidity：≤85% (+30℃)
• Atmospheric pressure：70Kpa～106Kpa
• Protection class: IP67

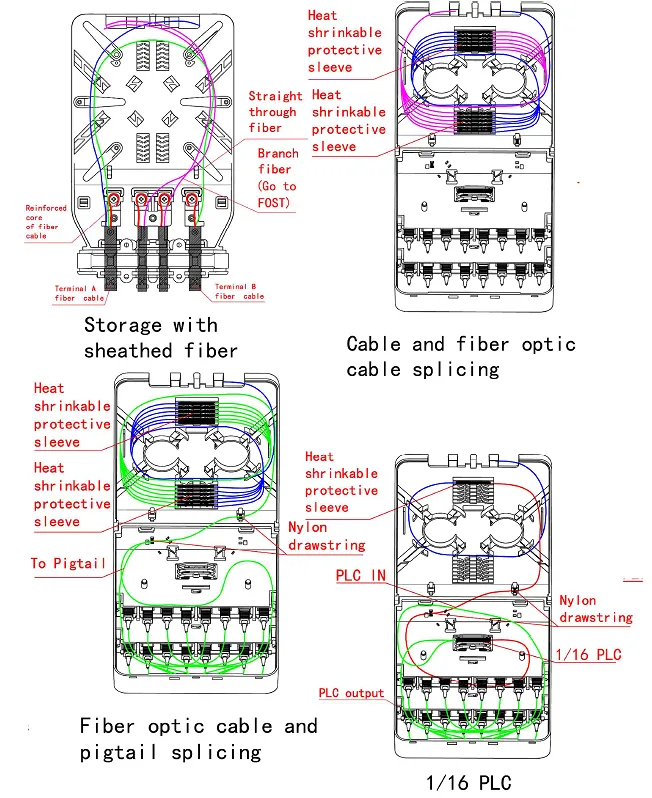

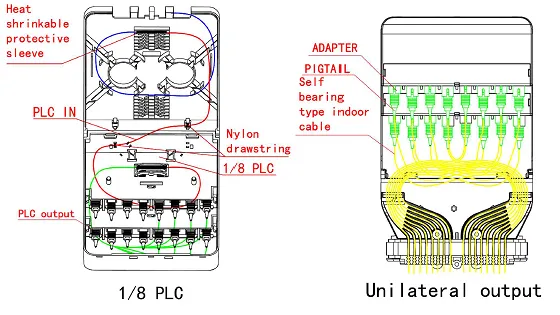

Fiber Routing Diagram

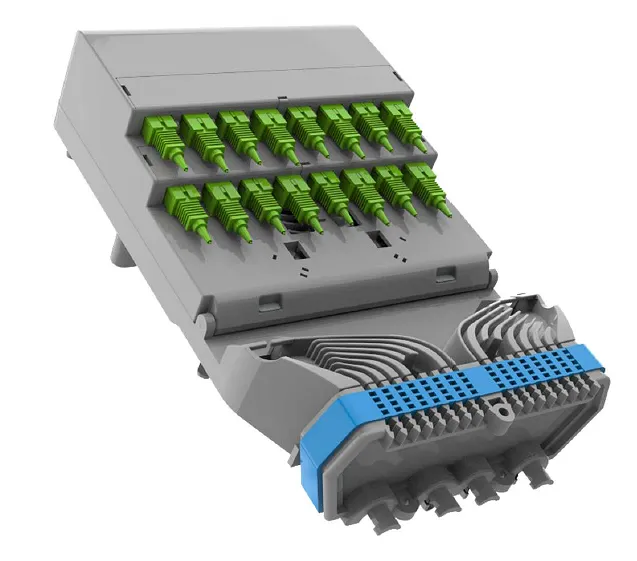

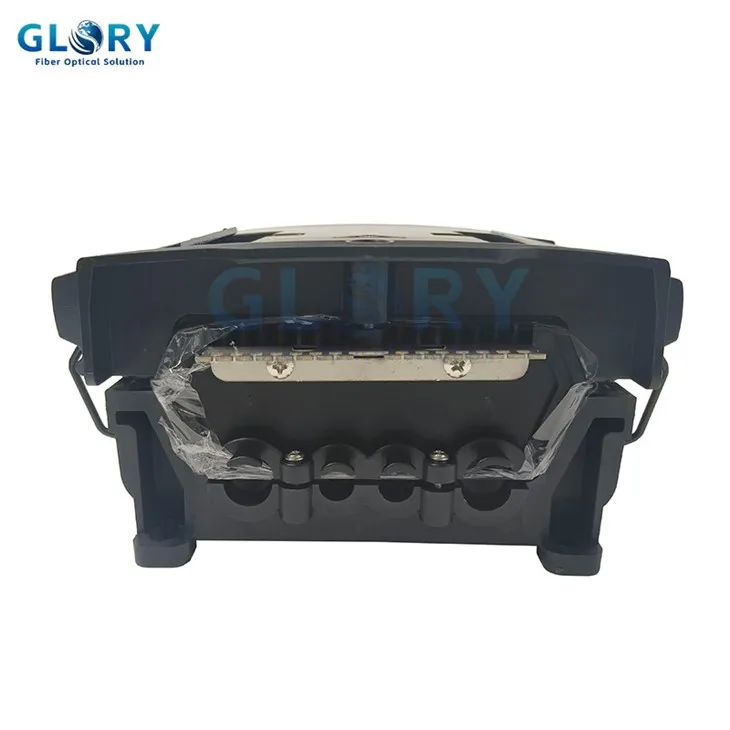

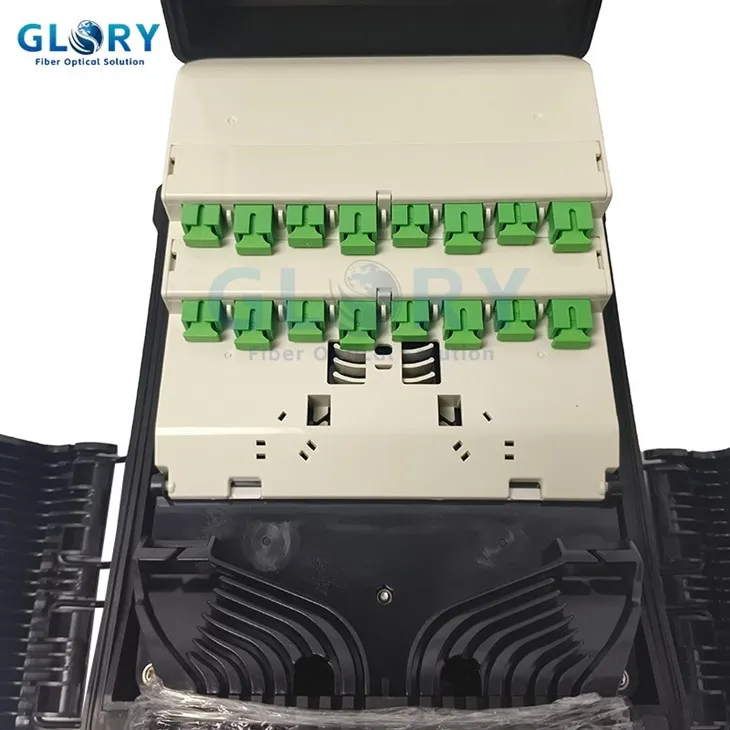

Features:
• The Optical Fibre Cable Distribution Box Made of high-quality engineer plastic material (PP), good mechanical strength, elegant appearance, sturdiness and durability.
• Suitable for indoor or outdoor, wall-mounted, pole installation.
• Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
• Fiber routing is reasonable.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc. all in one.
Main Specification:
• Insertion loss: ≤13.5dB
• UPC return loss: ≥50dB
• APC return loss: ≥60dB
• Thunder-proof technical datasheet
• The insulation resistance between the grounding device and the metal parts of the box is no less than 2104MΩ/500V (DC) IR≥2×104 MΩ/500V.
• The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V
Installation:
• Wall-mounted installation
Drill 4 holes into the wall based on the size in Table 1, insert the expansion bolt Φ7.5 * 40, position the Optical Fibre Cable Distribution Box to align with the holes, and use a bolt to fasten it.
• Pole-mounted installation
Fix 1 set of the pole ring to the telecom pole, as shown below.
