FDB Fiber Distribution Box

Model: FDB Fiber Distribution Box FBD-24F
• Outdoor CTO NAP for use in FTTx network systems
• IP54 protection rating
• Designed for outdoor installation with wall or pole mounting options

Send Inquiry

Product Introduction

24 subscribers FDB Fiber Distribution Box

A 24-subscriber FDB (Fiber Distribution Box) is a compact enclosure designed to organize, protect, and distribute fiber optic cables in telecommunications networks. It accommodates up to 24 end-user connections, featuring ports for splicing, splitting, and terminating fibers. Ideal for FTTH (Fiber-to-the-Home) or enterprise networks, it ensures efficient cable management, minimizes signal loss, and supports easy maintenance. Built with durable, weather-resistant materials, it suits both indoor and outdoor installations. The FDB streamlines network scalability, enabling seamless upgrades while safeguarding delicate fiber connections from environmental damage or tampering.

Specifications：

Item	FDB Fiber Distribution Box FBD-24F
Size (mm)	245x296x94.5
Material	PC+ABS
Protection Level	IP54
Splitter	1x8 2pcs,1X16 1pcs
Pigtail	24pcs
Bending radius	≥ 30mm
Entry ports cable dia.(max)	2xφ25mm
Output ports and cable dia.(max)	5xφ15mm
Box Color	Black
Operating Temperature	-25～+60℃

Features:

• The FDB Fiber Distribution Box is suitable for outdoor use and constructed from high-quality plastic.
• Can accommodate ABS box-type PLC splitters: 1x8 (2 pieces) and 1x16 (1 piece).
• Rainproof and designed for outdoor applications.
• Supports installation of 24 SC-type adapters.

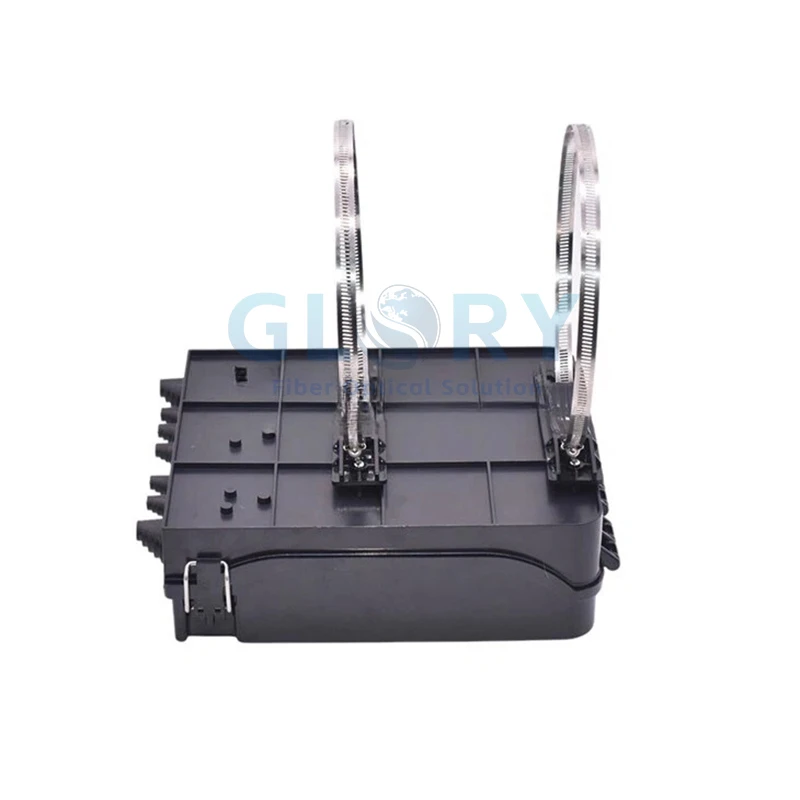

• Compatible with wall mounting and pole mounting.
• Features 2 cable entry ports (cables can be inserted without cutting).
• Includes 24 exit ports for FTTH drop cables.
• One dedicated port allows fast connectors to pass through directly.

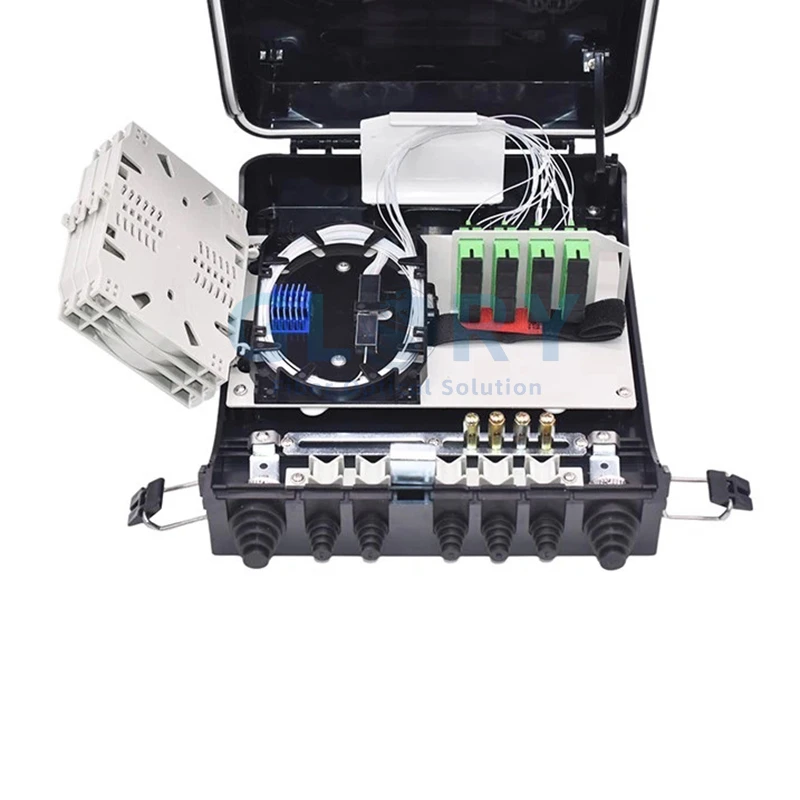

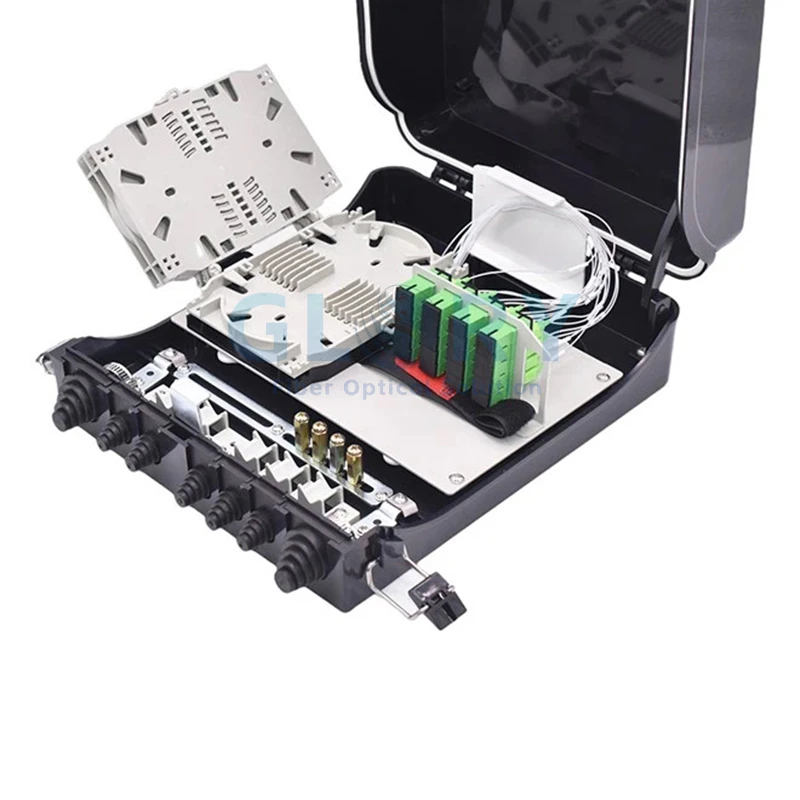

Pictures of Inside FDB Fiber Distribution Box:

Inside FDB Fiber Distribution Box 1
