FTTh Optical Distribution Box
Product Model:FTTh Optical Distribution Box GL-ODB-16R
Fiber Capacity:Up to 16 ports
Protection Rating:IP68
Material:PC+ABS Composite
Impact grade:IK 10
Sealing: page-turning structure, sealed with hasp and vulcanized silicone tape
- Product Introduction

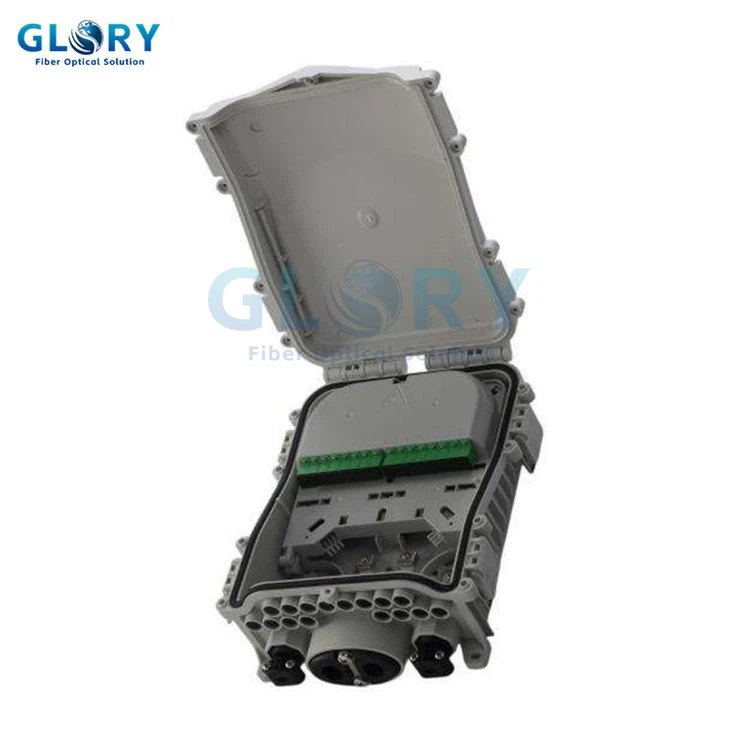

GL-ODB-16R Fiber Optic Distribution Box
Our 16-core FTTH distribution box with FastConnect tech makes network setup a breeze
So here's the deal with our FTTh Optical Distribution Box GL-ODB-16R - it's basically the central hub where your main fiber cables connect to the smaller drop cables that go to individual homes or businesses. Think of it as the traffic controller for your fiber network.
The cool thing about this box is its FastConnect technology. It's designed to get your network up and running in no time, which means less hassle for your installation team. You can set it up with different splitter configurations depending on what your network needs - whether that's 4x1:4 splitters, 2x1:8 splitters, or a single 1:16 splitter.
What Makes It Special
Built Tough
This thing is sealed up tight with a hasp and special silicone tape, giving it IP68 protection. That means it can handle pretty much whatever Mother Nature throws at it.
FastConnect Tech
Our FastConnect system is a game-changer. It lets your team set up connections quickly, even if they're not fiber experts. Less time on installations means more networks getting built.
Durable Design
With an IK10 impact rating, this box can take a hit and keep on working. It's built to last through all sorts of rough conditions.
Plays Well With Others
Supports up to 16 waterproof adapters that work with gear from Huawei, FiberHome, Furukawa, and other big names in the industry.
Technical Stuff You Should Know
| Product Model | GL-ODB-16R |
| Fiber Capacity | 16 Cores |
| Splitter Options | Up to 1x16, 2x8, or 4x4 splitters |
| Weather Protection | IP68 |
| Impact Rating | IK10 |
| Cable Size It Handles | Φ8-17.5mm |
| Works With | All kinds of optical cables |
| Meets Standards | Follows all the important IEC rules |
Installation Types
The FTTh Optical Distribution Box GL-ODB-16R is super versatile when it comes to installation spots. You can mount it on walls, stick it on poles, run it through pipelines, or even put it underground. Basically, if you need to connect fibers, this box can handle the location.
Wall-mounted Installation
Secure and space-efficient mounting on vertical surfaces, ideal for building basements, corridors, and equipment rooms.
Pole-mounted Installation
Designed for outdoor applications with sturdy mounting brackets that attach securely to telephone poles and utility posts.
Wire Messenger Installation
Suspension installation between poles or structures using messenger wire, providing flexibility in aerial deployments.
Industry application scenarios and solutions
Packaging and Handling
The packaging is designed to keep everything safe from moisture and earthquakes. All the accessories come in sealed plastic bags inside boxes that have clear handling instructions. When you're moving these around, just make sure not to turn them upside down or roll them - careful loading prevents bumps and damage.
Try to keep them out of heavy rain before installation, and during transport, keep the temperature between -35°C and +55°C. For storage, stack the cartons in a controlled area away from corrosive gases, with temperatures between -5°C to 45°C and humidity below 70%. This way, everything stays in perfect condition until you're ready to use it.
Service and Support
Thank you for your attention to our products. If you have any questions, we will provide technical support in a timely manner and serve you wholeheartedly.
