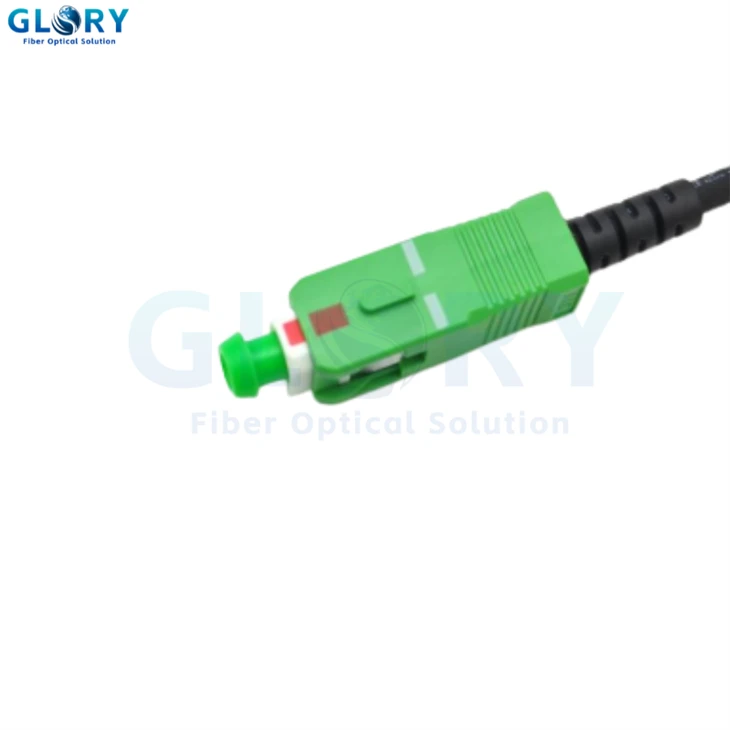

Pushable Connector
ltem:Pushable connector
Insersion Loss:≤ 0.3dB
Return Loss:≥ 55dB
Tensile Strength 3.0mm Drop Round Cable (TPU):Max 70N
Tensile Strength Drop Flat Cable:≥ 200N
Operating Temperature (℃):-40 ~+85
- Product Introduction

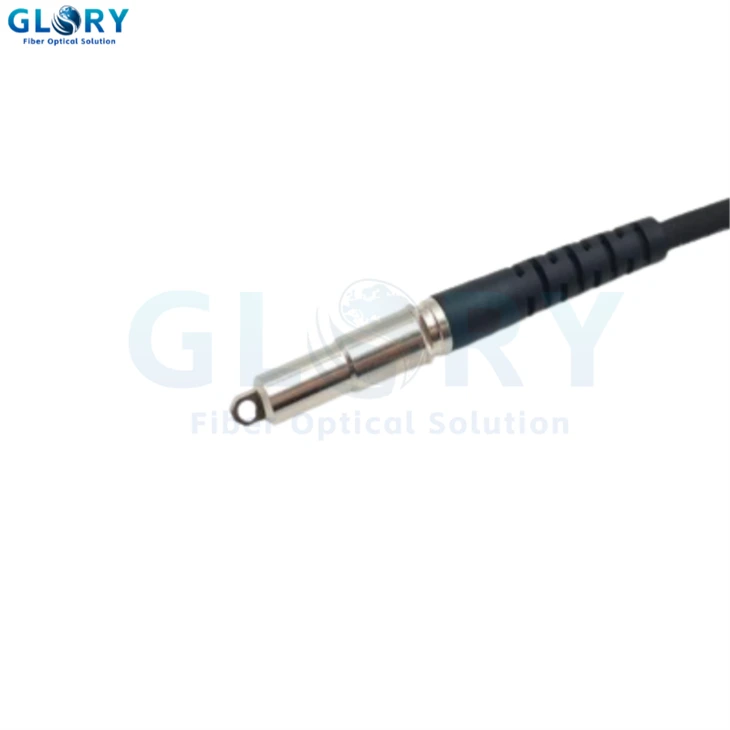

The SC Pushable Connector is a streamlined, tool-free solution designed for rapid FTTx (Fiber-to-the-X) installations, particularly in tight or pre-installed conduit systems. Its innovative push-pull design and traction-enhancing feature enable smooth, damage-free routing through micro ducts, corrugated tubes, and other confined pathways-eliminating the need for costly pre-termination or splicing in the field.
Technical Specification
|
Type |
SC/APC |
|
Insersion Loss |
≤ 0.3dB |
|
Return Loss |
≥ 55dB |
|
Tensile Strength 3.0mm Drop Round Cable (TPU) |
Max 70N |
|
Tensile Strength Drop Flat Cable |
≥ 200N |
|
Operating Temperature (℃) |
-40 ~+85 |
Industry application scenarios and solutions
