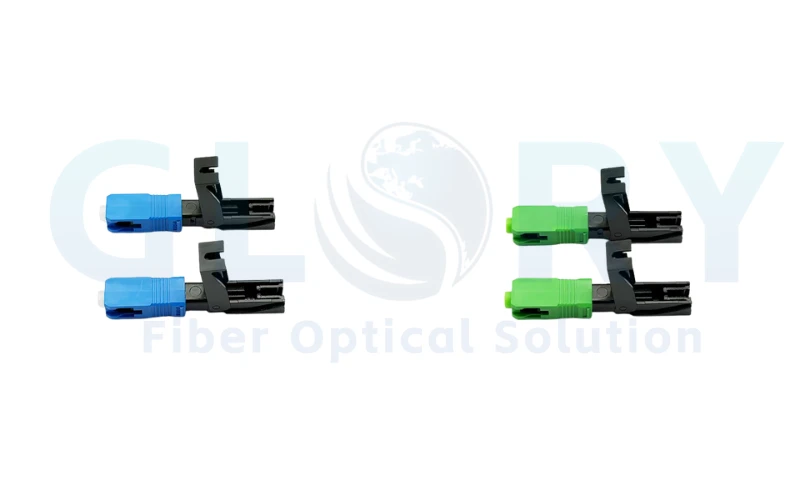

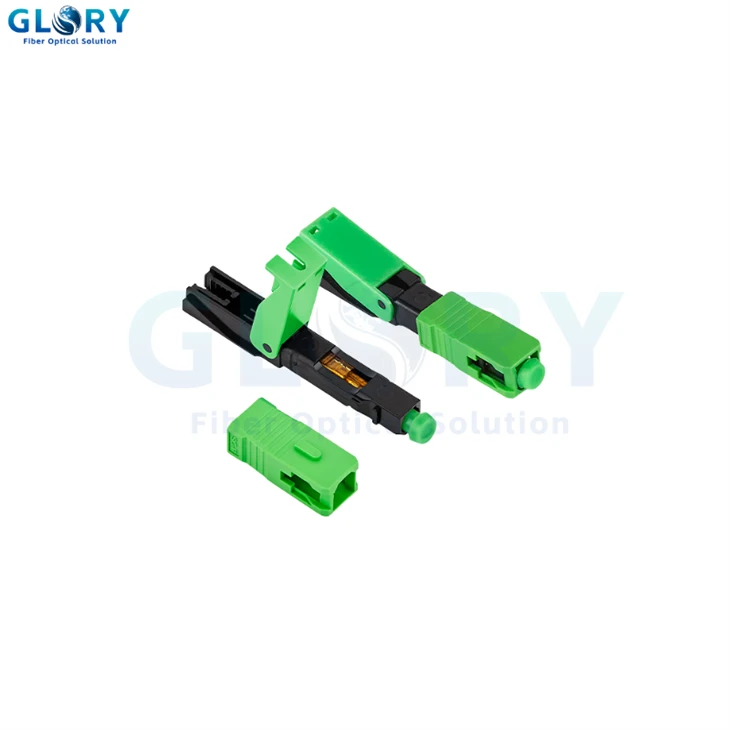

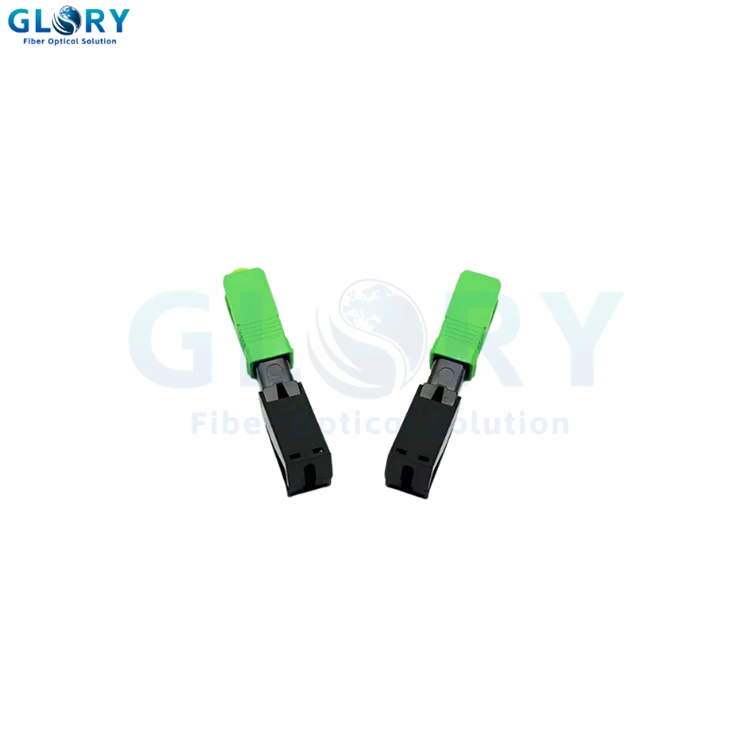

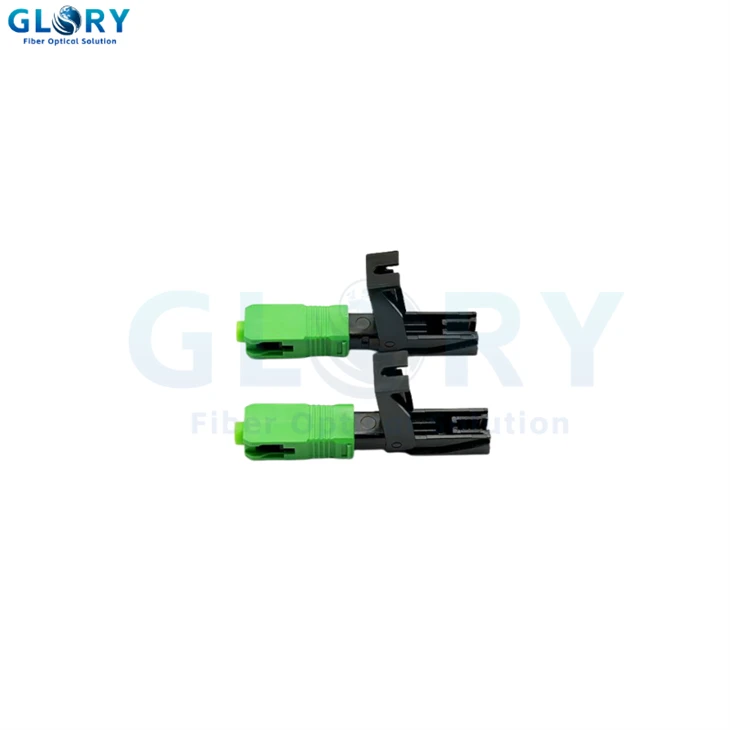

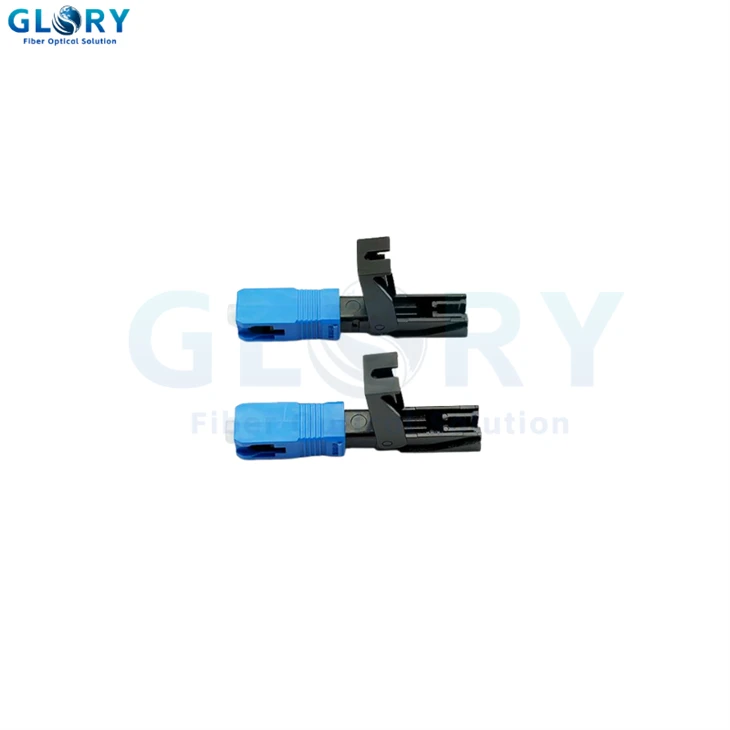

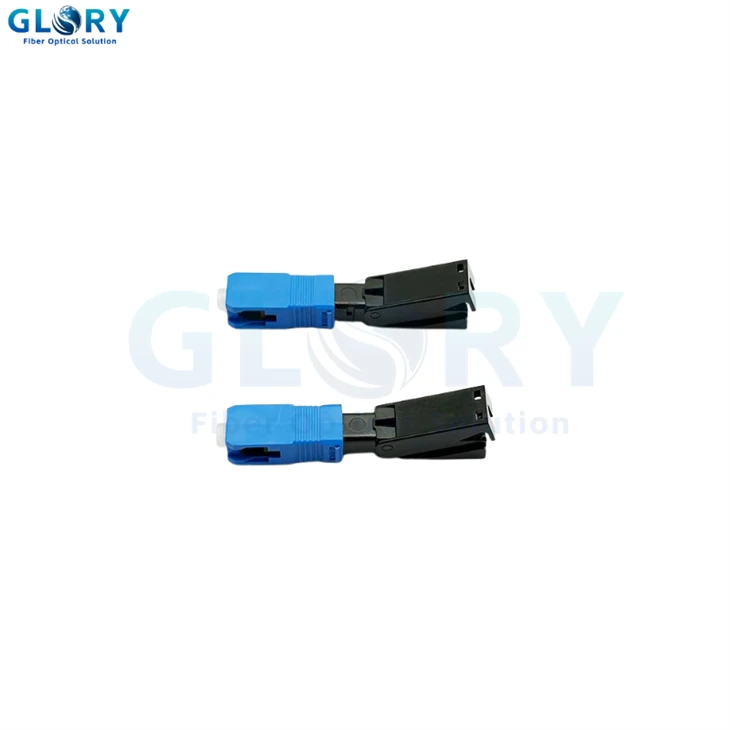

Optic Fast Connector
ltem:Optic Fast Connector
Length:50mm
Ferrules:SM/UPC / SM/APC
Inner Diameter of ferrules:125um
Insertion Loss AVG≤0.3dB MAX≤0.5dB
Return Loss UPC≥50dB / APC≥55dB
Working Temperature:-20~+75℃
Storage Temperature:-40~+85℃
Mating Times:500Times
Drop cable:2.0*3.0mm/2.0*5.0mm
- Product Introduction
This connector adopts a tool-free on-site installation design, enabling rapid and reliable deployment without the need for dedicated tools. It is particularly suitable for FTTH application scenarios and daily network maintenance work. Its precision ceramic fercore, combined with UPC polishing technology, ensures insertion loss below 0.3dB and maintains stable transmission performance under various environmental conditions.
The compact 50mm design not only facilitates flexible wiring management in confined Spaces but also features excellent mechanical strength. Our products strictly adhere to the ISO quality management system. Each finished product undergoes comprehensive testing and verification to ensure consistency in performance between batches, providing you with reliable and efficient connection solutions.
Technical Specification
| ltem | Optic Fast Connector |
| Length | 50mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -20~+75℃ |
| Storage Temperature | -40~+85℃ |
| Mating Times | 500Times |
| Cable Diameter |
Drop cable:2.0*3.0mm/2.0*5.0mm |
