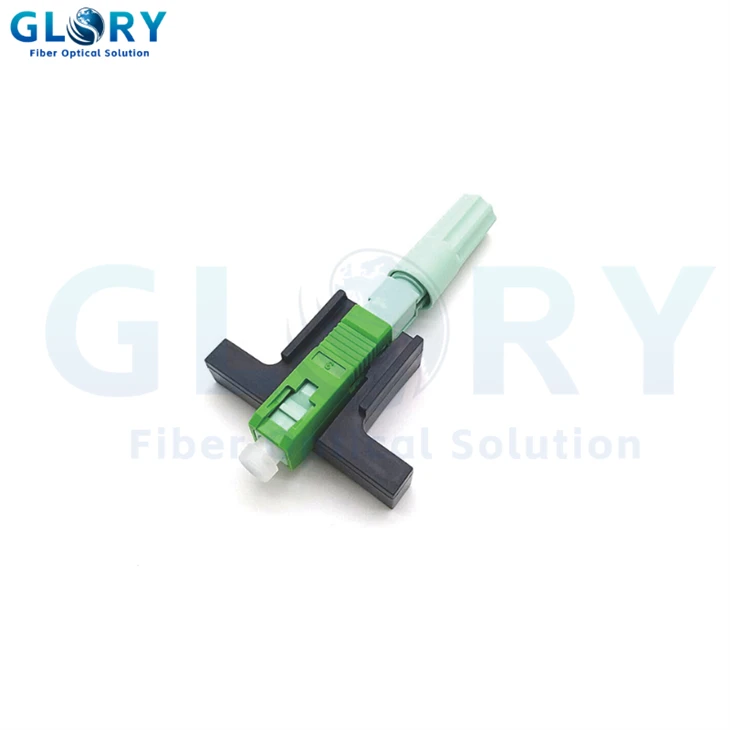

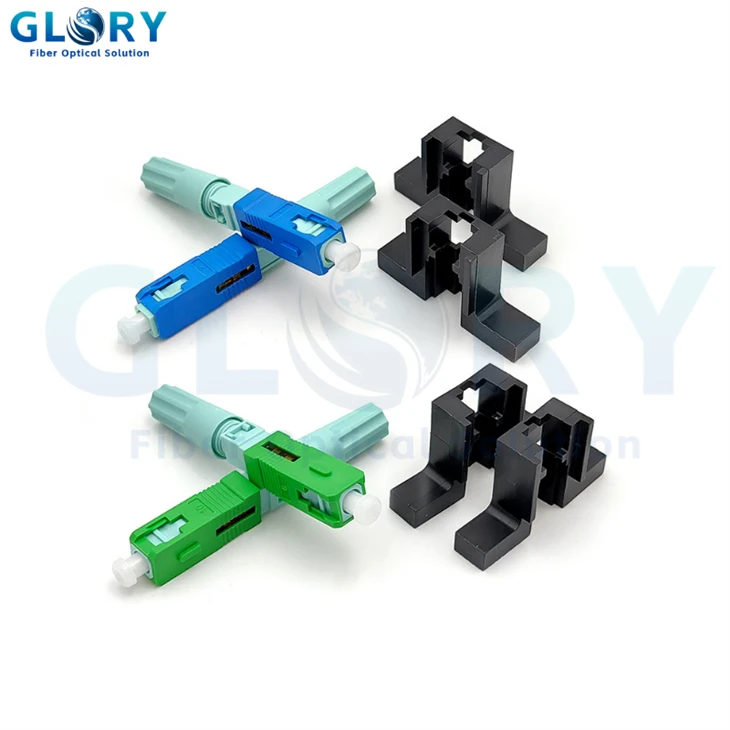

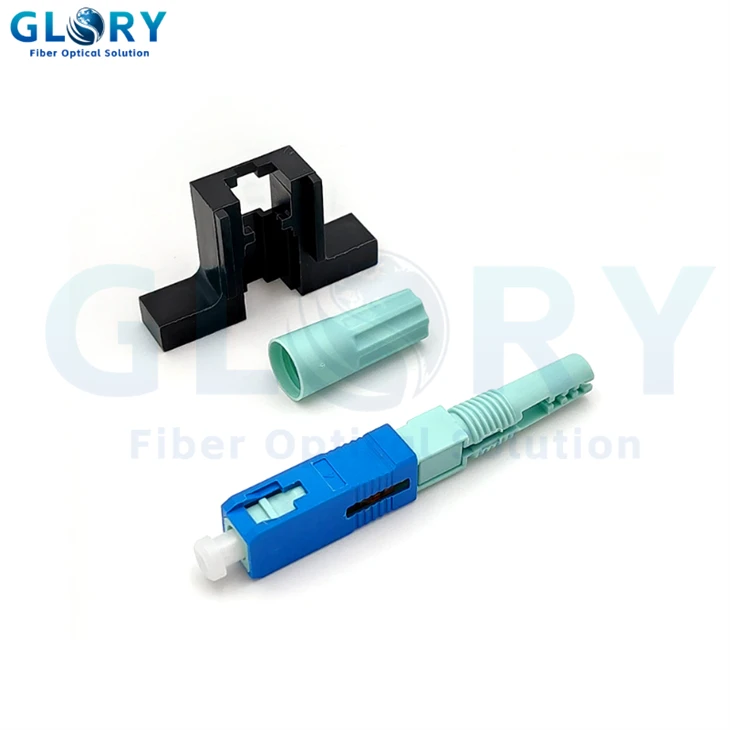

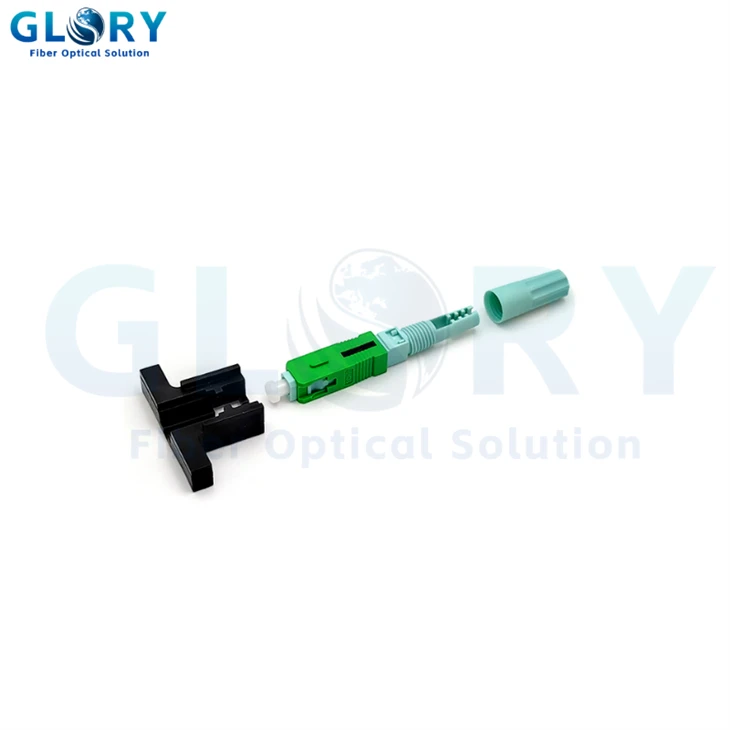

FTTH SC APC Fiber Optic Fast Connector
Model Name:FTTH SC APC Fiber Optic Fast Connector
Connector Length: 55mm
Connector Structure: Pre-embedded Type
Application For: Drop Cable, Indoor Cable, Outdoor Cable
Cable Type: φ3.0、2.0、round cable；2*3mm Flat cable
Fiber Mode: Single & Multi-Mode
Return Loss: APC≥ 50dB UPC≥ 45dB
- Product Introduction

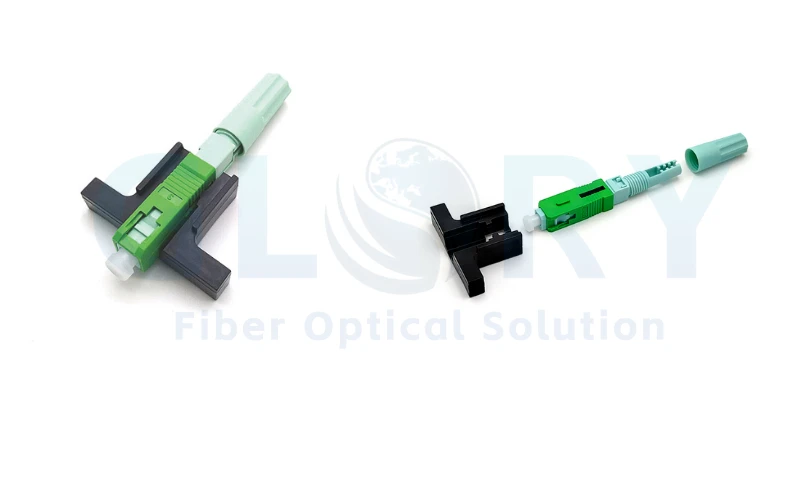

Aircraft Spiral FTTH SC APC 0.3dB Single Mode Fiber Optic Fast Connector
Our FTTH SC APC Fiber Optic Fast Connector feature industry-leading insertion loss specifications and outstanding return loss characteristics, ensuring optimal signal integrity in various deployment scenarios
|
Insertion Loss: 0.3dB (Typical); 0.5dB (Max.)
Return Loss: APC ≥60dB; UPC ≥50dB
Operating Wavelength: 1260~1650nm
Product Length: 52mm
|
Exclusive Product Features
Advanced Optical Performance
Our connectors feature proprietary polishing techniques that deliver exceptional optical characteristics with insertion loss as low as 0.3dB and return loss exceeding 60dB for APC variants.
Enhanced Durability
Engineered with premium zirconia ceramic ferrules and reinforced housing, our connectors withstand extreme environmental conditions and mechanical stress, ensuring long-term reliability.
Intelligent Installation
Featuring an innovative visual alignment system and tool-less assembly mechanism, our connectors reduce installation time by up to 40% while maintaining precision alignment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Environment | Indoor/Outdoor FTTH Applications |
| Insertion Loss | 0.3dB (Typical); 0.5dB (Maximum) |
| Return Loss | APC ≥60dB; UPC ≥50dB |
| Operating Temperature | -40°C to +85°C |
| Durability | >500 mating cycles |
| Product Lifetime | >20 years |
Industry application scenarios and solutions
Our FTTH SC APC fiber optic fast connectors are engineered for diverse deployment scenarios in modern telecommunication infrastructure. These advanced connectors are specifically optimized for Fiber-to-the-Home (FTTH), Fiber-to-the-Room (FTTR), and Fiber-to-the-X (FTTX) networks, delivering reliable connectivity solutions for both residential and commercial applications with exceptional performance characteristics.
Beyond telecommunications infrastructure, these connectors are ideally suited for high-performance image transmission networks, precision optical test instruments, and sophisticated photoelectric automatic control systems. Their robust architectural design ensures stable operational performance across diverse environmental conditions, making them suitable for both indoor and outdoor installations with demanding requirements.
Quality Assurance and Logistics Management
Every product unit undergoes rigorous testing and quality validation to ensure compliance with international standards and specifications. Our comprehensive technical support network provides expert assistance throughout the product lifecycle.
Service and Support
Thank you for your attention to our products. If you have any questions, we will provide technical support in a timely manner and serve you wholeheartedly.
