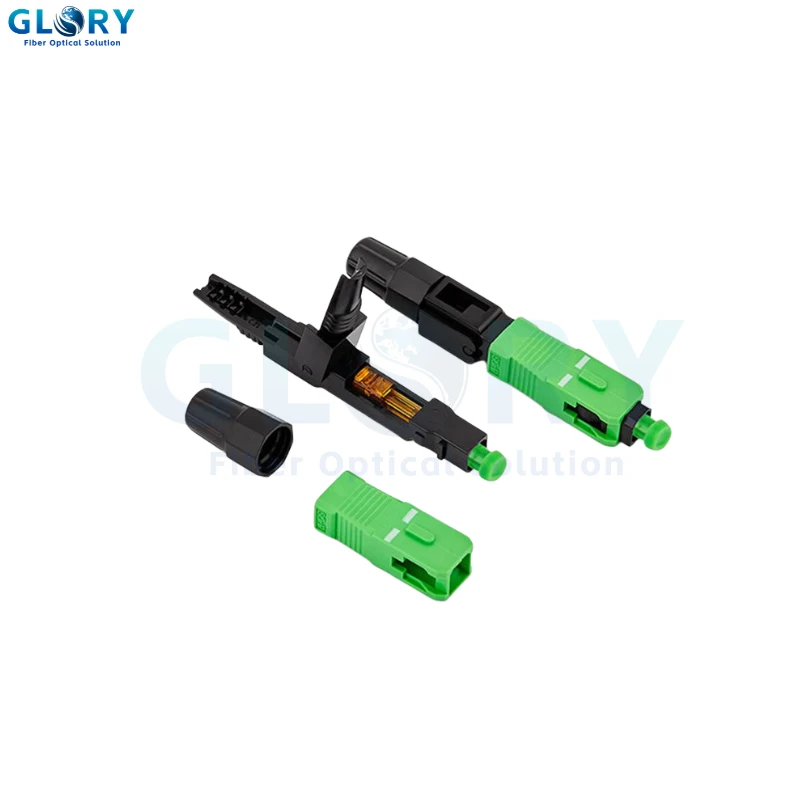

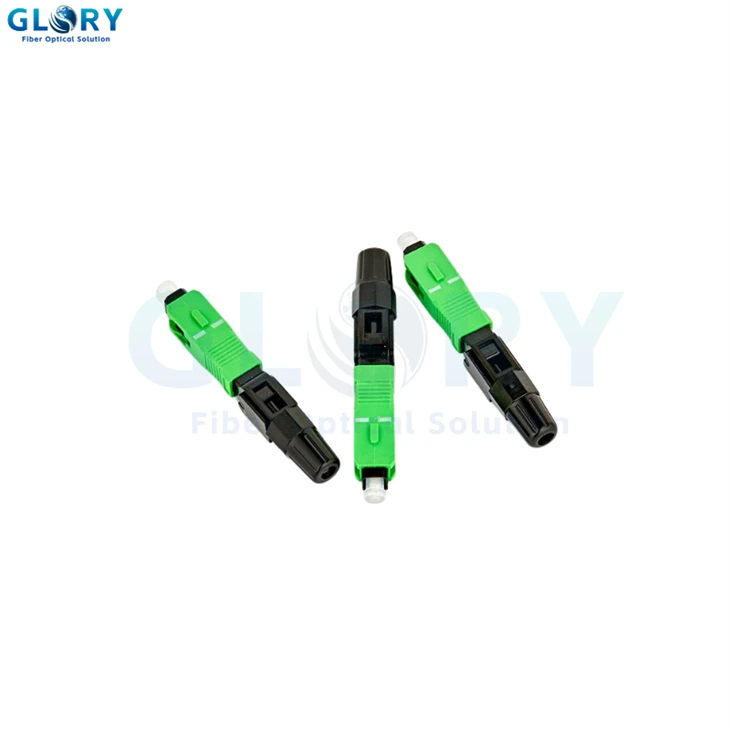

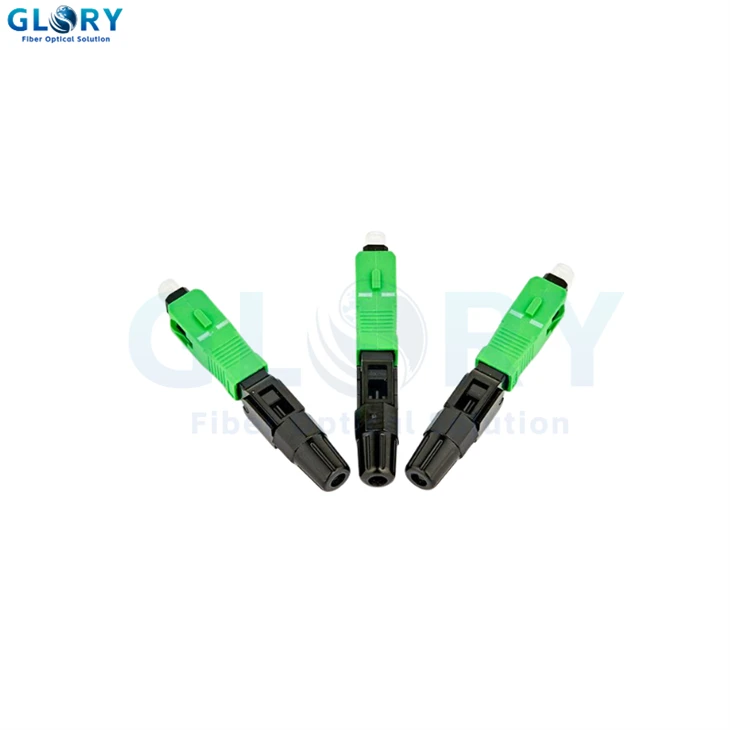

Fiber Optic Fast Connector
ltem:Fiber Optics Fast Connector
Length:60mm
Ferrules:SM/UPC / SM/APC
Inner Diameter of ferrules:125um
Insertion Loss AVG≤0.3dB MAX≤0.5dB
Return Loss UPC≥50dB / APC≥55dB
Working Temperature:-20~+75℃
Storage Temperature:-40~+85℃
Mating Times:500Times
Cable Diameter:Drop cable:2.0*3.0mm/2.0*5.0mm
Round cable:0.9mm
- Product Introduction
Multi-standard compatible interconnection
This optical fiber quick connector is specially designed for modern optical fiber networks to achieve reliable interconnection between different connector types. Its precise structure ensures that signal transmission approaches the theoretical limit loss, making it an ideal choice for multi-standard connector compatibility scenarios in telecommunications infrastructure.
Hybrid adaptation and optical optimization
Made of precisely calibrated sleeves and high-quality materials, this hybrid adapter maintains outstanding optical performance in complex installation environments. The double-ended inclined plane physical contact (APC) structure effectively supsuppress back reflection, providing a key technical guarantee for signal integrity in high-speed data transmission scenarios.
Quality assurance and global trust
• Strict quality control system: Manufactured by Ningbo GloryOptical Communication through a multi-dimensional quality control process to ensure consistent performance across all batches
• Global service capabilities: With profound accumulation in optical fiber technology, we have become a long-term trusted partner of global telecom operators
Technical Specification
Industry application scenarios and solutions
Technical Support and Quality Assurance
| ltem | SC/APC Fast Connector |
| Length | 60mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -20~+75℃ |
| Storage Temperature | -40~+85℃ |
| Mating Times | 500Times |
| Cable Diameter |
Drop cable:2.0*3.0mm/2.0*5.0mm Round cable :0.9mm |
