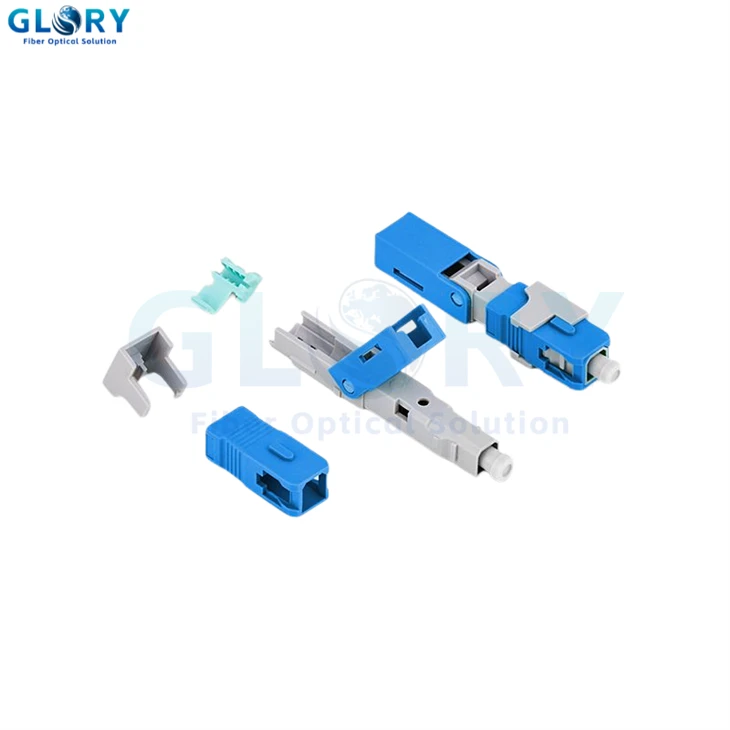

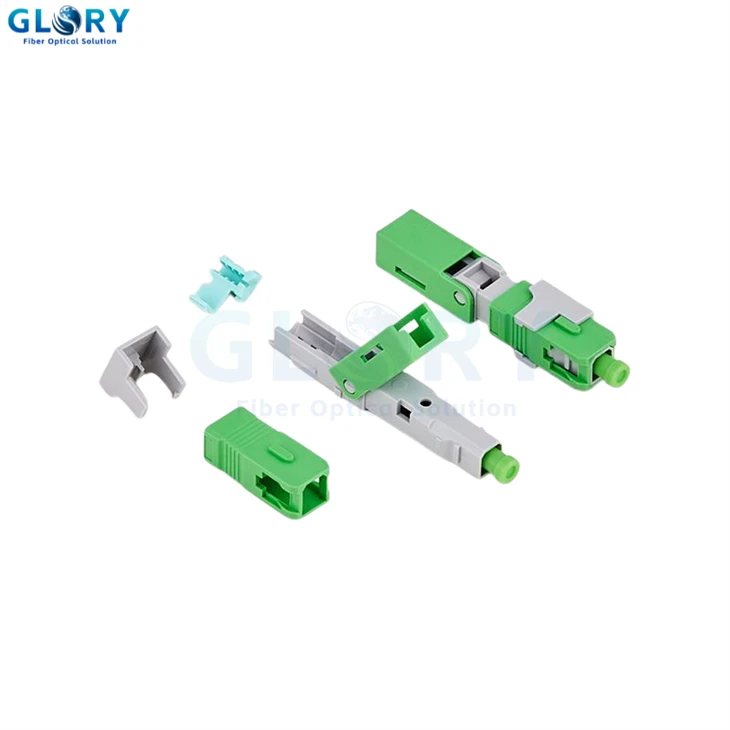

SC Optic Fast Connector
ltem:SC Optic Fast Connector
Length:52mm
Ferrules:SM/UPC / SM/APC
Inner Diameter of ferrules:125um
Insertion Loss AVG≤0.3dB MAX≤0.5dB
Return Loss UPC≥50dB / APC≥55dB
Working Temperature:-20~+75℃
Storage Temperature:-40~+85℃
Mating Times:500Times
Drop cable:2.0*3.0mm/2.0*5.0mm
- Product Introduction
The SC Optic Fast Connector offers a reliable optical fiber solution tailored for high-speed data communication in challenging telecom settings. Engineered with a sturdy yet resilient design, it ensures accurate light signal alignment even under frequent plugging or harsh environmental conditions. Its space-efficient, miniaturized structure allows for dense deployment on patch panels, wall outlets, or equipment ports-optimizing connectivity without sacrificing signal quality.
Technical Specification
| Item | SC Optic Fast Connector |
| Length | 52mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of Ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -20~+75°C |
| Storage Temperature | -40~ +85°C |
| Mating Times | 500Times |
| Cable Diameter | Drop cable:2.0*3.0mm/2.0*5.0mm/2.0*1.6mm |
