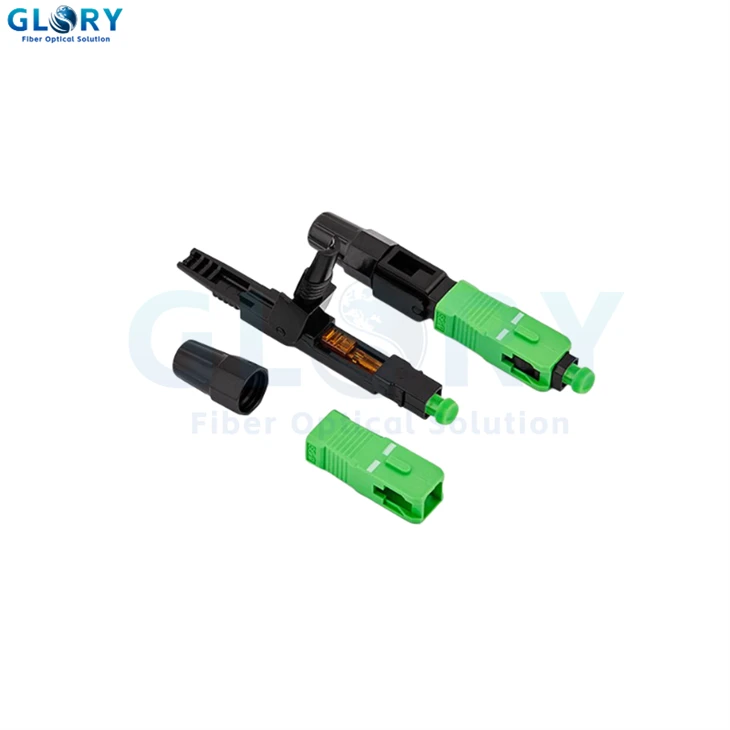

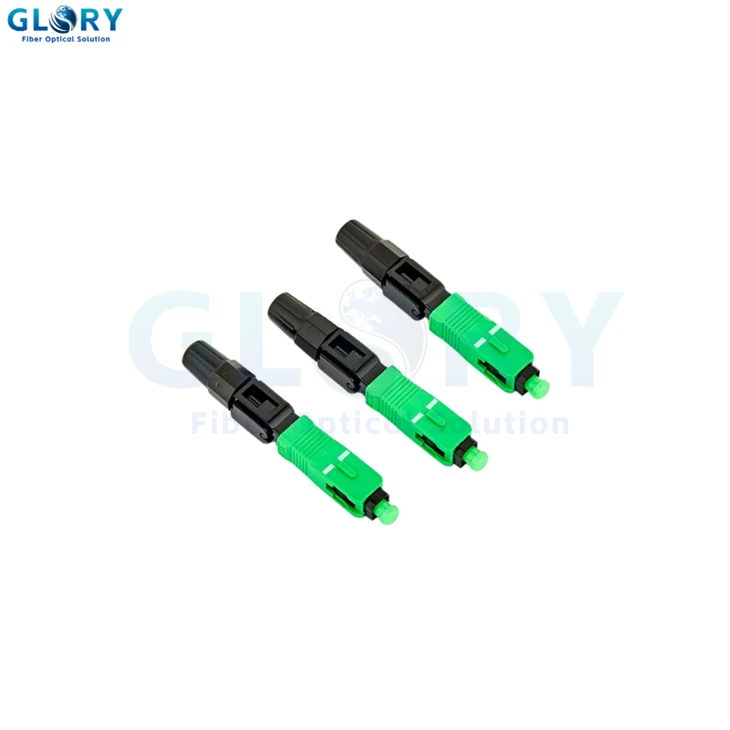

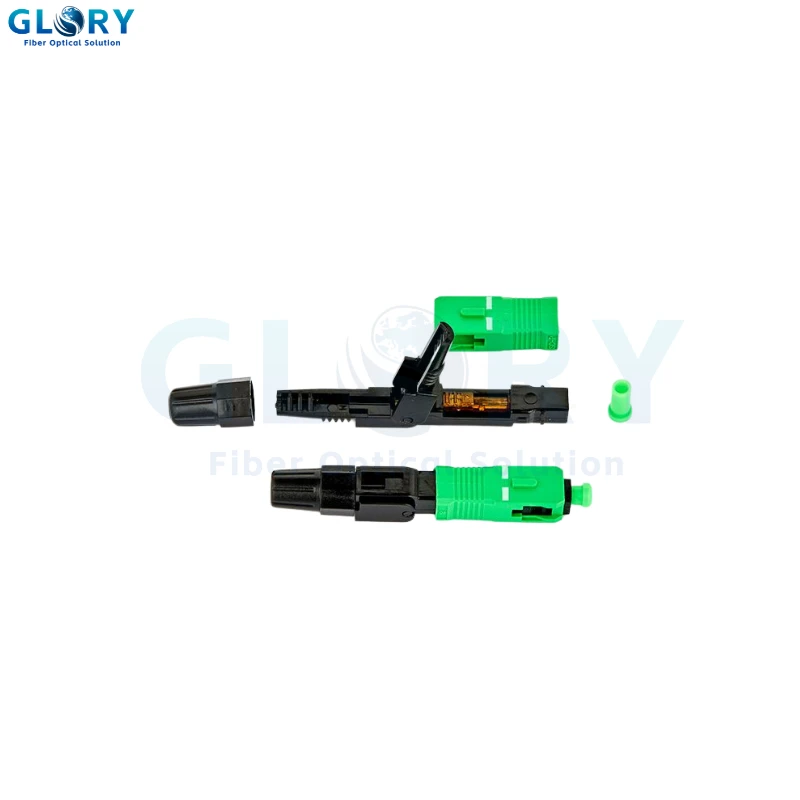

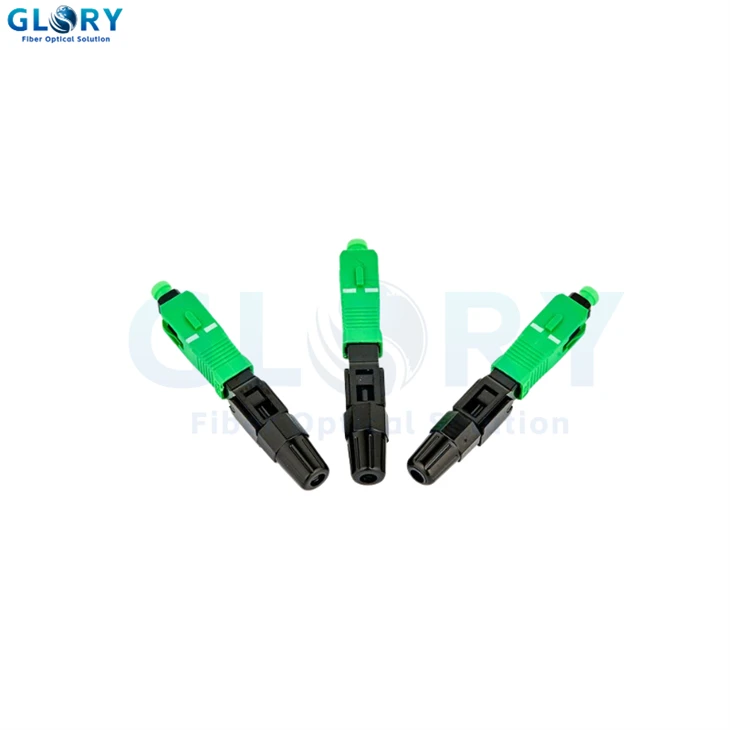

SC/APC Fast Connector
ltem:SC/APC Fast Connector
Length:60mm
Ferrules:SM/UPC / SM/APC
Inner Diameter of ferrules:125um
Insertion Loss AVG≤0.3dB MAX≤0.5dB
Return Loss UPC≥50dB / APC≥55dB
Working Temperature:-20~+75℃
Storage Temperature:-40~+85℃
Mating Times:500Times
Cable Diameter:Drop cable:2.0*3.0mm/2.0*5.0mm
Round cable:0.9mm
- Product Introduction
Outstanding performance in harsh environments
The SC/APC Fast Connector is specially designed for high-demand telecommunication environments. It achieves reliable optical connection and extremely low signal loss through a precise structure, making it an ideal choice for ensuring signal integrity in high-speed data transmission scenarios.
Stable connection and reflection control
This SC/APC Fast Connector features a robust design and outstanding manufacturing techniques, maintaining excellent optical performance in a wide range of installation scenarios. Its inclined physical contact (APC) structure effectively supsuppress backreflection, meeting the strict requirements of modern optical fiber networks for high return loss parameters.
Quality assurance and global trust
• Stringent quality control system: Meticulously manufactured by Ningbo GloryOptical Communication, performance consistency is ensured through multi-dimensional quality control processes
• Global service capabilities: With profound accumulation in optical fiber technology, we have become a long-term trusted partner of global telecom operators
Technical Specification
| ltem | SC/APC Fast Connector |
| Length | 60mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -20~+75℃ |
| Storage Temperature | -40~+85℃ |
| Mating Times | 500Times |
| Cable Diameter |
Drop cable:2.0*3.0mm/2.0*5.0mm Round cable :5.0mm/3.0mm/2.0mm/0.9mm |
Industry application scenarios and solutions
Technical Support and Quality Assurance
All our fiber distribution boxes undergo rigorous testing protocols to ensure long-term reliability and performance consistency. Our quality management system is certified to ISO 9001:2015 standards, reflecting our commitment to excellence in manufacturing processes and product quality.
Each unit is subjected to environmental stress testing, including temperature cycling, humidity exposure, and mechanical impact resistance evaluation. Optical performance validation ensures that insertion loss and return loss parameters meet or exceed industry specifications. Material testing confirms UV resistance and flame retardancy properties for safe outdoor deployment.
Our products comply with RoHS directives, ensuring environmental responsibility throughout the product lifecycle. Customization options are available to meet specific project requirements, with our engineering team providing technical support during the specification and implementation phases.
Service and Support
Thank you for your trust and support. We are fully committed to providing you with continued, reliable service and technical support. Should you have any questions, please do not hesitate to contact us. We look forward to a lasting and productive partnership
