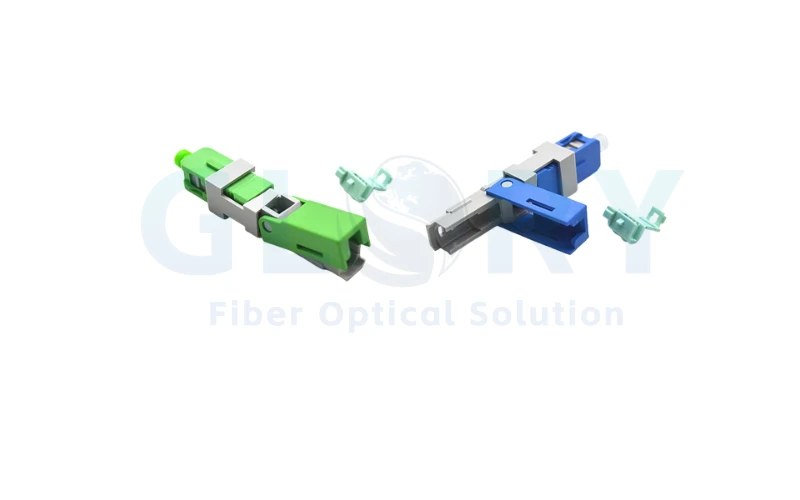

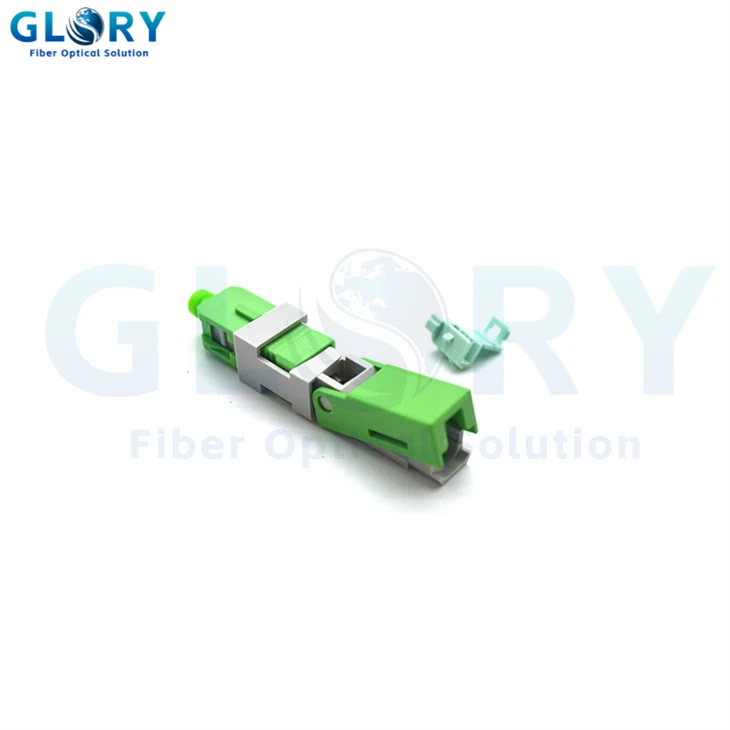

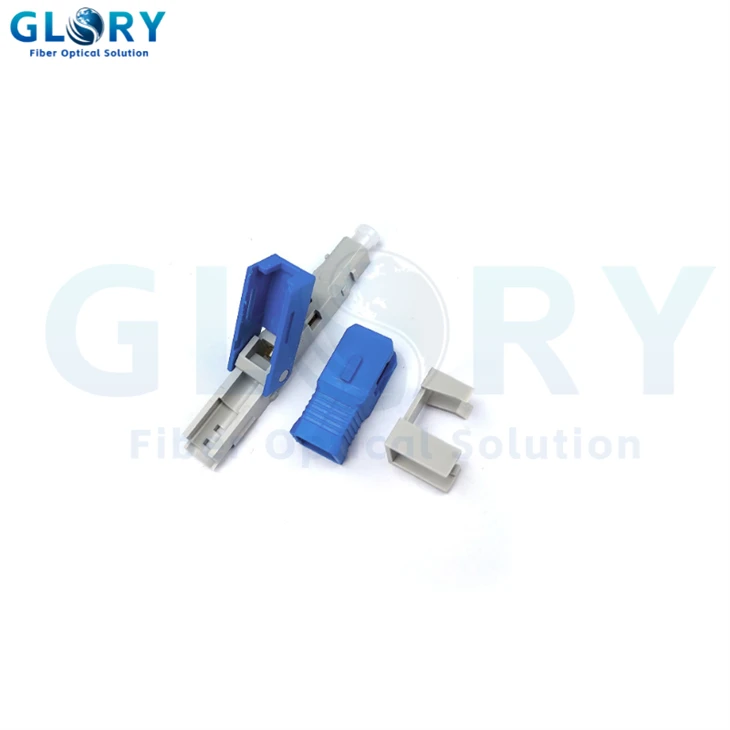

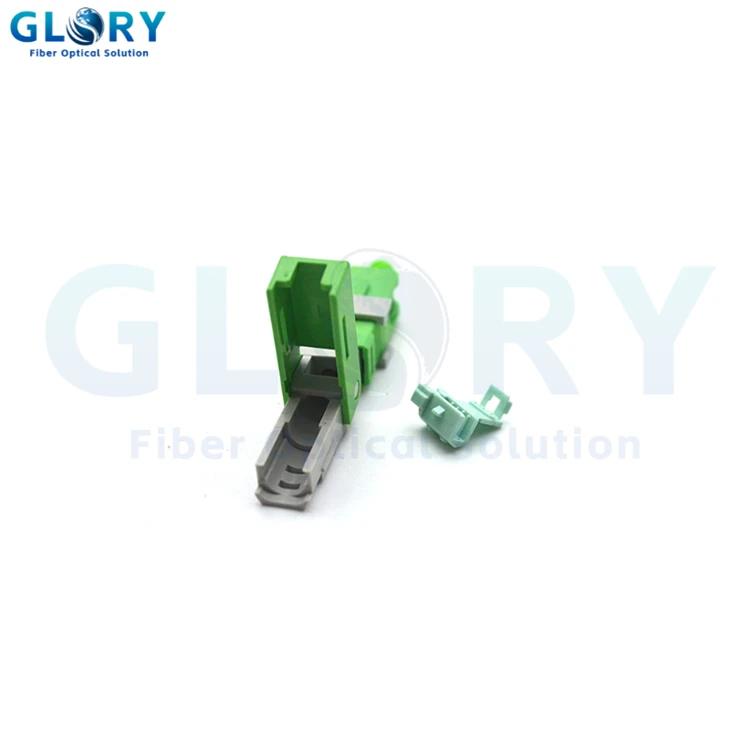

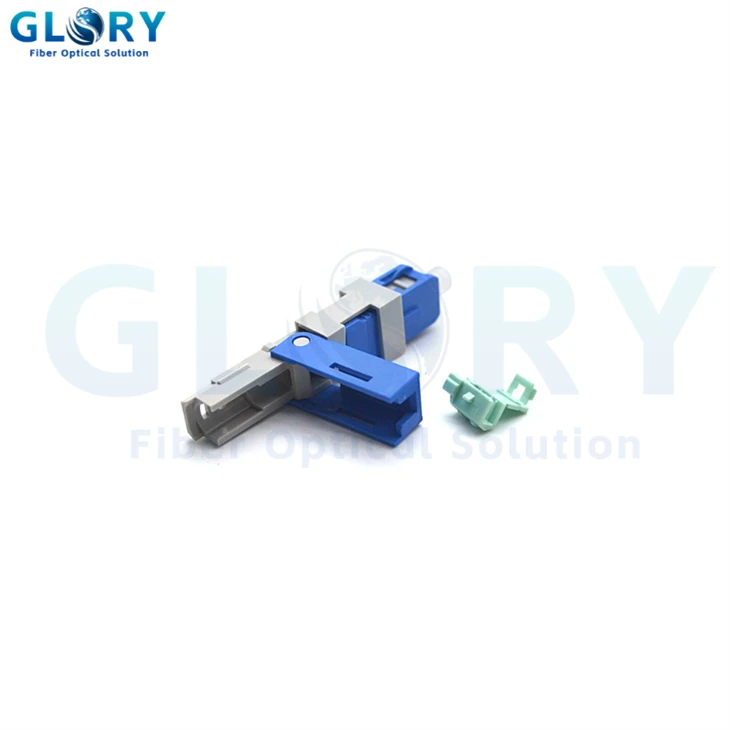

Fiber Optic SC Fast Connector
Product Model:Fiber Optic Fast Connector
Connector Length: 55mm
Connector Structure: Pre-embedded Type
Application For: Drop Cable, Indoor Cable, Outdoor Cable
Cable Type: 2*3mm Flat cable
Fiber Mode: Single & Multi-Mode
Return Loss: APC≥ 50dB UPC≥ 45dB
- Product Introduction
Fiber Optic Fast Connector 55mm Fiber Optic SC Connector For 2 X 3mm Drop Cables
Model GL-SC-L5505B | For 2x3mm Drop Cables | APC/UPC Options
Innovative Network Integration Platform
The Fiber Optic SC Fast Connector from Glory Optical is a high-performance, pre-embedded type connector designed specifically for 2x3mm drop cables. With a compact 55mm design, this connector offers exceptional reliability and ease of installation for various fiber optic applications. This SC connector is engineered to deliver low insertion loss and high return loss, meeting the demanding
requirements of modern fiber optic networks. Whether you're working on FTTH deployments, data centers, or industrial applications, this connector provides the performance and durability needed for reliable connections.
Key Features & Advantages
Quick Installation
No special tools required for installation, with an average operation time of about 50 seconds.
Reusable Design
Can be reused up to 10 times, providing excellent value and flexibility.
Weather Resistant
Suitable for outdoor waterproof installation with robust construction.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Name | GL-SC-L5505B |
| Connector Type | SC, Pre-embedded |
| Connector Length | 55mm |
| Cable Type | 2 * 3mm Flat Cable |
| Fiber Mode | Single & Multi-Mode |
| Insertion Loss | 0.3dB (Typical); 0.5dB (Max) |
| Return Loss | APC ≥50dB; UPC ≥45dB |
| Operating Temperature | -40°C to +85°C |
Industry application scenarios and solutions
The Fiber Optic SC Fast Connector is versatile enough for various deployment scenarios. Its robust design and high performance make it ideal for both indoor and outdoor applications in demanding environments.
This connector is particularly well-suited for Fiber-to-the-Home (FTTH) installations, where reliability and ease of installation are critical. It can be quickly screwed and fixed with corresponding adapters, making it perfect for connecting to fiber distribution boxes and other FTTH access equipment.
Quality Assurance and Logistics Management
Every product unit undergoes rigorous testing and quality validation to ensure compliance with international standards and specifications. Our comprehensive technical support network provides expert assistance throughout the product lifecycle.
Service and Support
Thank you for your attention to our products. If you have any questions, we will provide technical support in a timely manner and serve you wholeheartedly.
