Inner Shutter Adapter

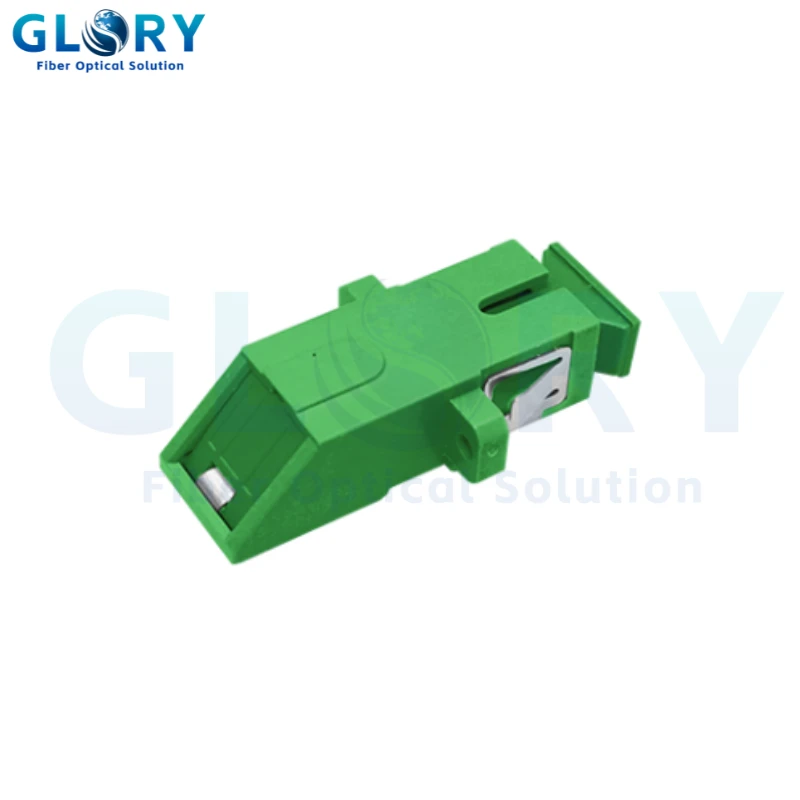

Model:SC APC SX Inner Shutter Avoid Laser Adapter With Flange
Adapter Type: SC
Body Style: Simplex
Connector Polish Type: APC
Connector Fiber Mode: Singlemode
Insertion Loss: ≤0.2dB
Durability: >1000times
Mounting Type: With Flange
Aligment Sleeve Material: Ceramic
Color: Green
RoHS Compliancy Status: Compliant
- Product Introduction

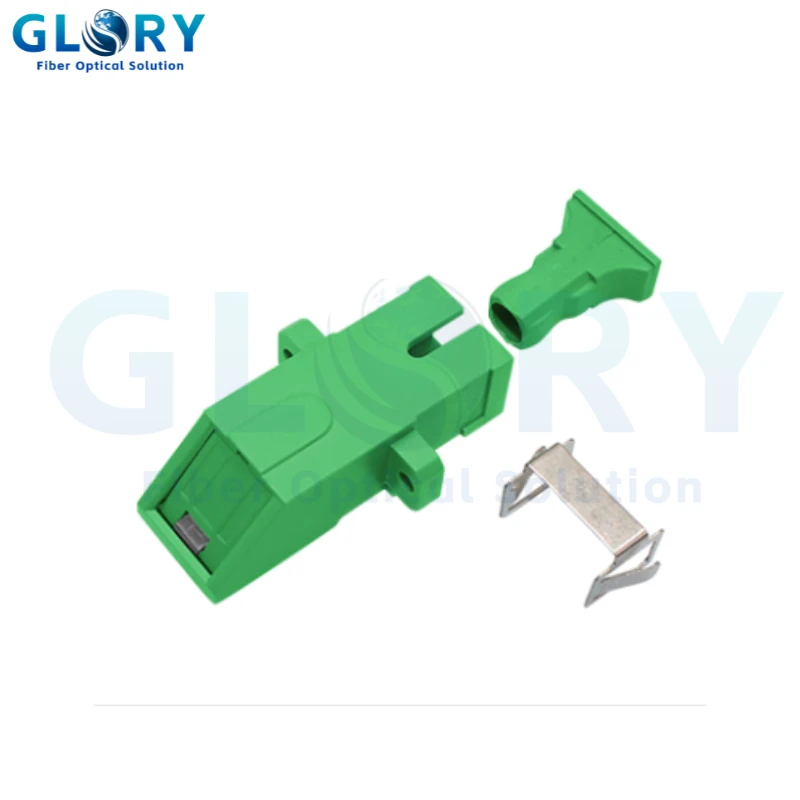

SC APC SX Inner Shutter Avoid Laser Adapter With Flange
Enhanced Connectivity Solutions: Advanced SC/APC Simplex Fiber Optic Adapter Design
This SC/APC Simplex Fiber Optic Adapter has been engineered for deployment in next-generation high-speed optical networks where operational safety and system reliability constitute critical performance parameters.
Features
Optimized for single-mode optical transmission applications, the adapter employs an advanced APC (Angled Physical Contact) polish profile that reduces signal reflection losses to <0.2 dB, making it particularly suitable for CATV infrastructure and analog signal transmission systems requiring high-fidelity signal preservation. The precision-machined zirconia ceramic sleeve ensures consistent connection integrity across >10,000 mating cycles while maintaining return loss performance within Telcordia GR-1209 standards.
Our Product

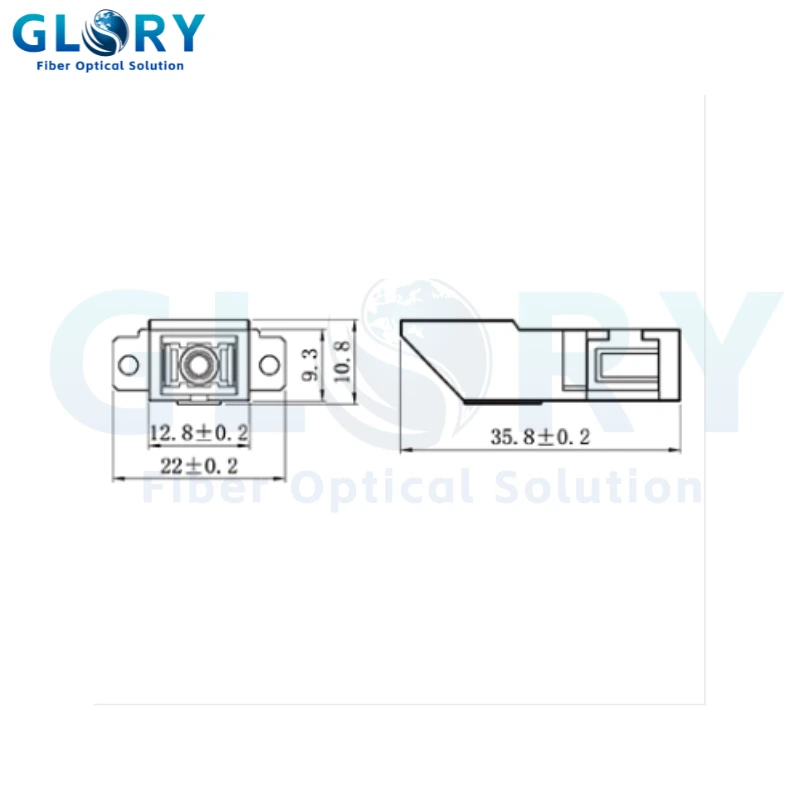

Product Specification.
| parameter | SC Adaptor | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Alternationg loss | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Durability | The change of 1000 interpolation times is less than 0.2dB | |||
| Working temperature | -40~85°C | |||
| Storage temperature | -40~85°C | |||
