APC Adapter
Model: E2000 APC Adapter
Adapter Type: E2000
Body Style: Simplex
Connector Polish Type: APC
Connector Fiber Mode: Singlemode
Insertion Loss: ≤0.2dB
Durability: >1000times
Mounting Type: With Flange
Aligment Sleeve Material: Ceramic
Color: Blue
RoHS Compliancy Status: Compliant
- Product Introduction

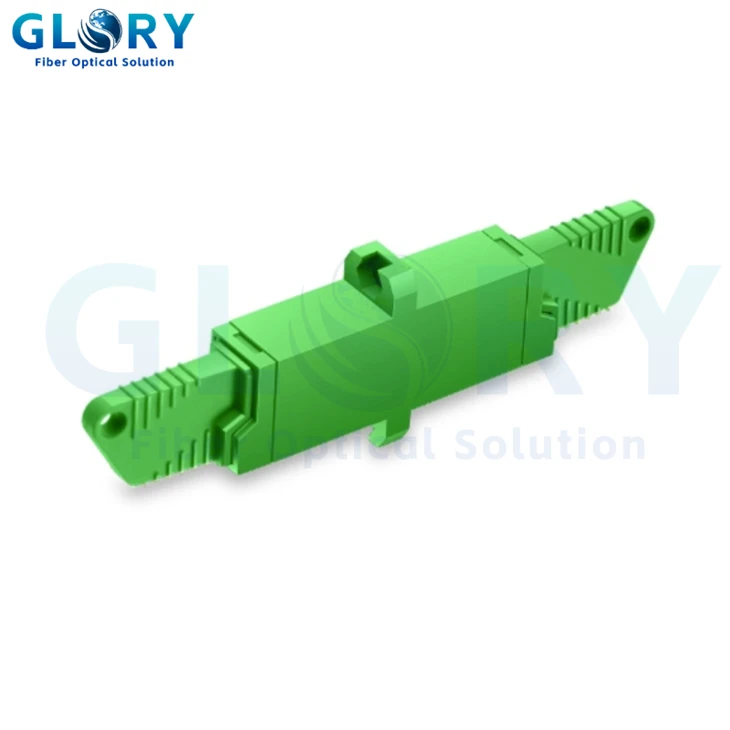

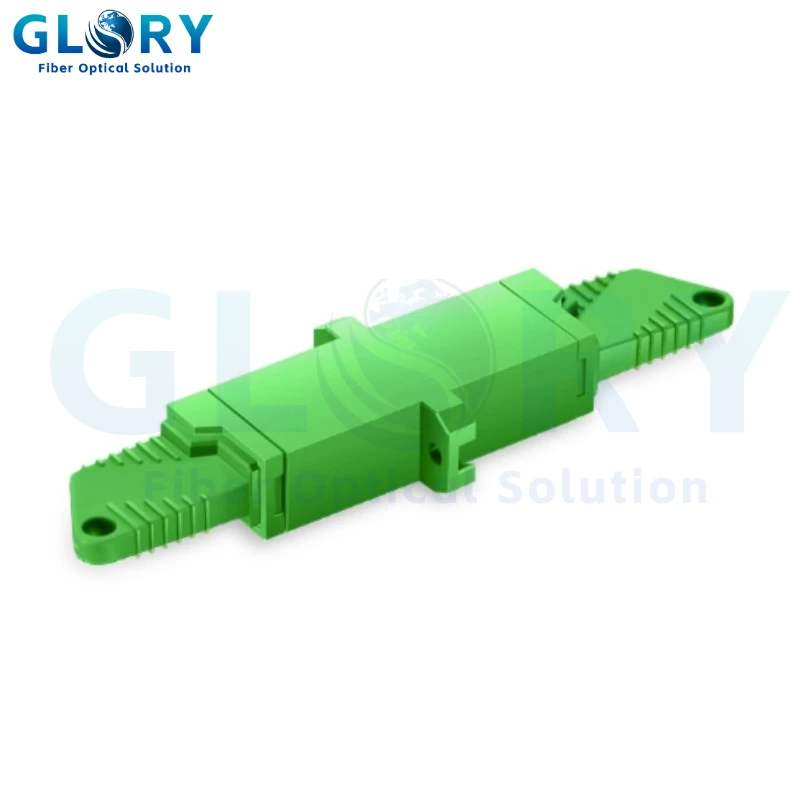

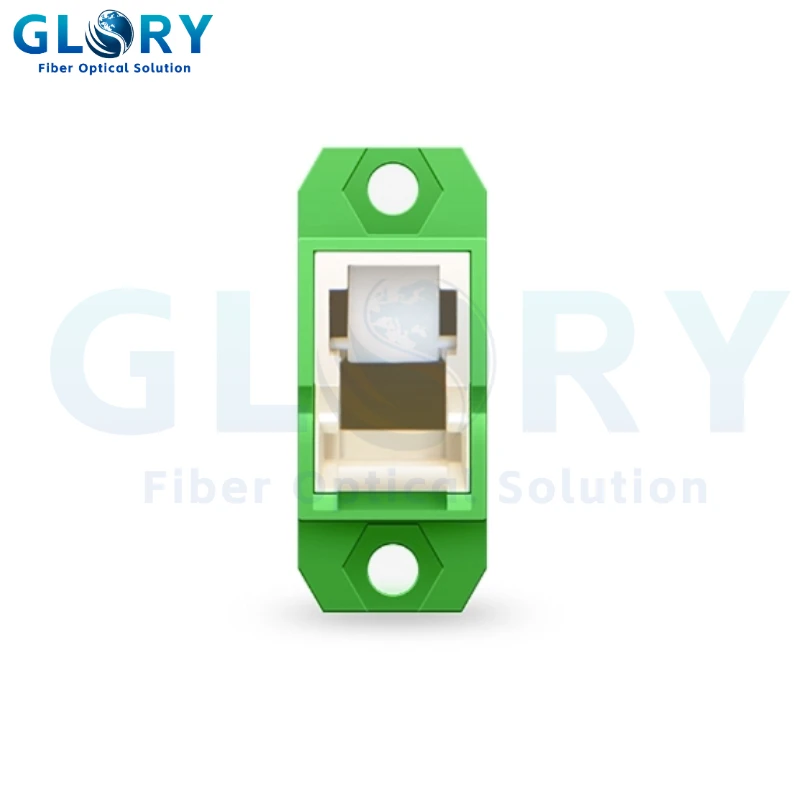

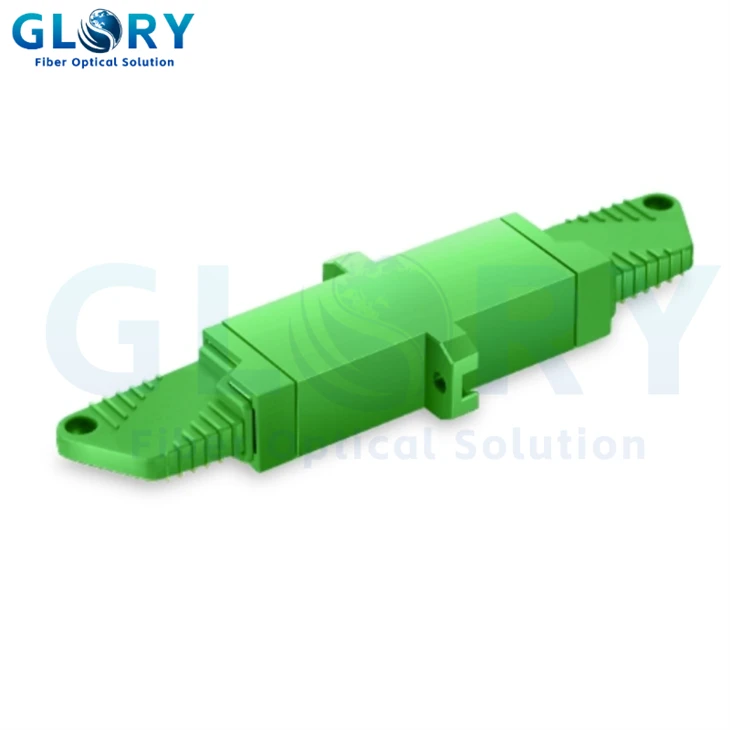

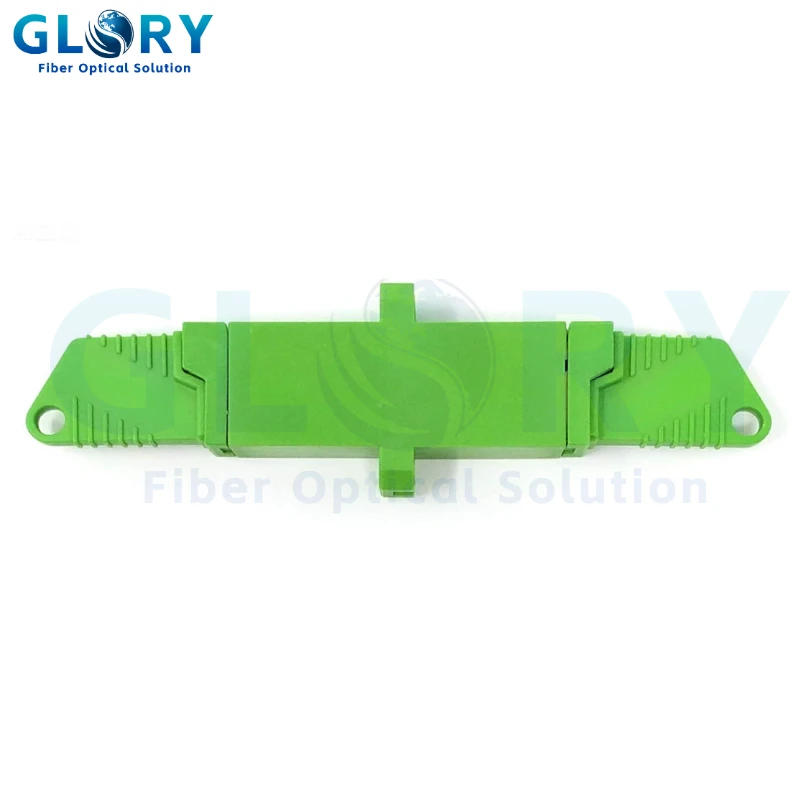

E2000 APC Adapter
Introduction.
The E2000 Simplex APC Adapter distributor features outstanding precision and reliability, enabling seamless single-mode fiber optic connections. It is particularly suitable for on-site installation, patch board interconnection, and integration within network equipment, effectively reducing installation time while maintaining superior optical performance.
Features.
This adapter adopts angular physical contact APC polishing, which ensure the best signal quality for reflection-sensitive applications. Its structure adopts high-precision ceramic bushings, which can ensure consistent alignment and low insertion loss (typically less than 0.2 dB in single-mode applications) within a wide operating temperature range (-40°C to +85°C). In addition, the adapter supports over 1000 mating cycles with minimal performance degradation, emphasizing its mechanical durability and long-term stability.
Our Product
Product Specification.
| parameter | E2000 Adaptor | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Alternationg loss | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Durability | The change of 1000 interpolation times is less than 0.2dB | |||
| Working temperature | -40~85°C | |||
| Storage temperature | -40~85°C | |||
Industry application scenarios and solutions
