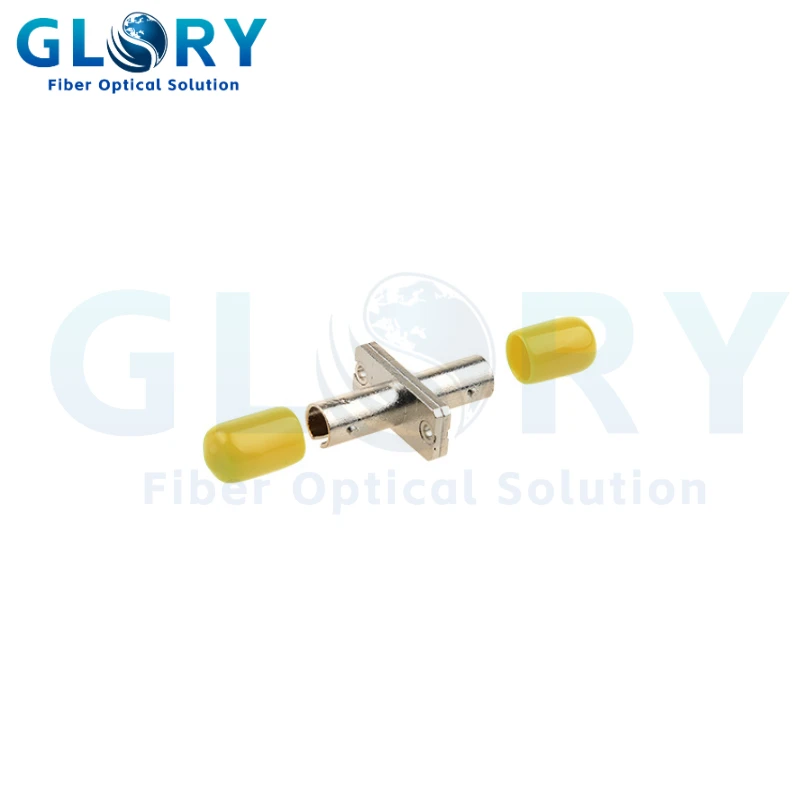

ST SX Adapter
Model: ST SX Adapter
Adapter Type: ST
Body Style: Simplex
Insertion Loss: ≤0.2dB
Durability: >1000times
Mounting Type: With Flange
Aligment Sleeve Material: Ceramic
Material: Metal RoHS
Compliancy Status: Compliant
- Product Introduction

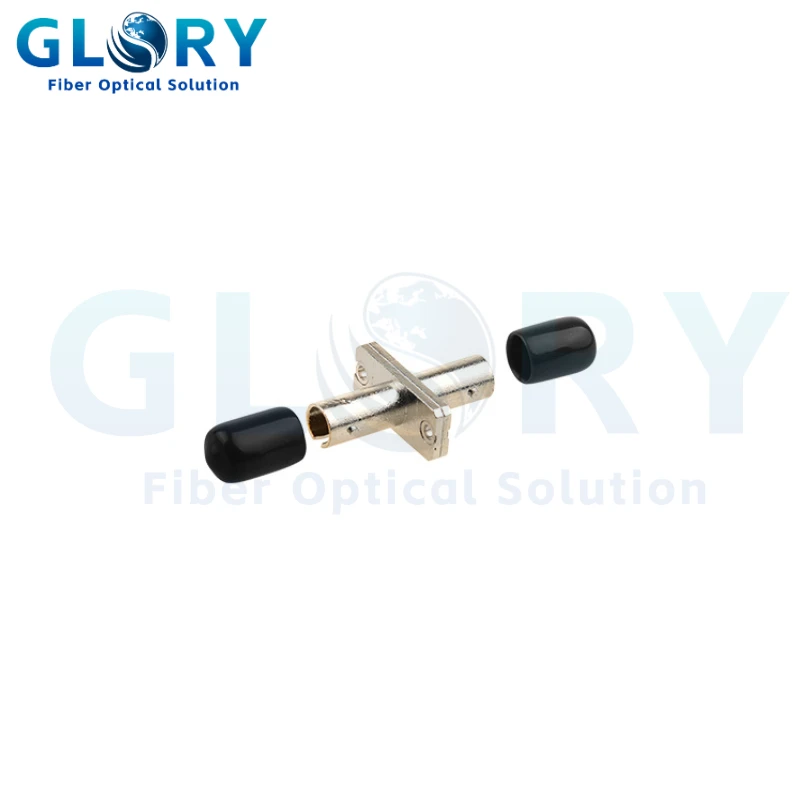

ST SX Adapter
Introduction.
ST SX Adapter is a fiber optic passive component engineered to enable high-precision interconnection between ST and SX fiber optic connectors, resolving compatibility challenges in heterogeneous network environments. This adapter is critical for integrating legacy ST-based equipment with modern SX-enabled networks, particularly in 5G fronthaul and industrial IoT deployments.
Features.
The ST SX Adapter incorporates several key features: it enables bidirectional signal transmission between circular ST connectors and square SX connectors (frequently deployed in high-density data centers); Maintains signal integrity with a low insertion loss of ≤0.2 dB for single-mode applications; And ensures long-term reliability through precision-engineered alignment sleeves
Our Product
Product Specification.
| parameter | ST Adaptor | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Alternationg loss | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Durability | The change of 1000 interpolation times is less than 0.2dB | |||
| Working temperature | -40~85°C | |||
| Storage temperature | -40~85°C | |||
Industry application scenarios and solutions
