Integrating PLC Splitters into Distribution Boxes: Four Core Advantages of Integrated Solutions
Dec 23, 2025|
The Challenges of Traditional Methods: The Hidden Costs of Field Splicing
In traditional deployments, installation teams must perform a series of complex operations on-site: opening the distribution box, splicing the feeder fiber to the input pigtails of the PLC splitters, splicing each output pigtail to the user port, managing and organizing the fiber, and finally testing. This process not only takes hours but is also highly dependent on the skill level and diligence of the technicians. Small problems such as dust contamination, variations in splice loss, or improper fiber winding can lead to future, difficult-to-locate network failures, resulting in high operating costs.
Integrated Solutions: Factory Prefabrication Revolutionizes Quality
Pre-assembled patch panels shift critical optical splitting functionality from "field work" to "factory production." Specialized manufacturers install, splice, and test high-quality PLC splitters using calibration equipment in a strictly controlled cleanroom environment before sealing them within the patch panel. This delivers four transformative advantages:
1. Significantly Improved Deployment Efficiency: From "Hours" to "Minutes"
Field work is greatly simplified. Technicians only need to:
• Secure the incoming fiber optic cable inside the patch panel.
• Splice the fiber optic cable to the pre-installed input splice tray in the patch panel.
• Connect the user's drop cable to the corresponding output port.
The entire process can typically be completed within 30 minutes, representing an efficiency improvement of over 70% compared to traditional methods. This translates to faster service activation, lower on-site labor costs, and significant time advantages for large-scale deployments.
2.Guaranteed Performance Consistency: Eliminating Human Factors
Factory Pre-assembly Ensures Standardized Quality:
• Clean Splicing: All splices are performed in a Class 10,000 cleanroom, fundamentally preventing dust contamination and ensuring extremely low insertion loss at each joint.
• Precise Testing: Each pre-assembled module undergoes comprehensive channel-by-channel testing before shipment, accompanied by a complete fiber performance report for full traceability.
• Optimized Fiber Management: Machine-guided, rule-based fiber coiling ensures all bend radii exceed minimum requirements, eliminating the risk of microbending loss.
3. Superior Reliability and Protection
Integrated Design Provides More Comprehensive System-Level Protection:
• Fully Sealed Construction: Splitters and internal patch cords are sealed and protected at the factory. Field work requires only a few connection points, significantly reducing the possibility of moisture and dust ingress.
• Foolproof Design: Critical splitter core components are secured and protected. Field personnel only need to operate the input/output interfaces, preventing accidental damage.
• Long-term stability: Factory-grade manufacturing processes ensure long-term reliability of internal connections under environmental stresses such as vibration and temperature cycling.
4. Clear maintenance and expansion logic
Pre-assembled chassis typically employ modular and clearly labeled designs:
• Clear port mapping: Each output port has a clear and permanent label corresponding to a specific splitter channel, making fault identification simple and straightforward.
• Easy capacity upgrades: For modular chassis, capacity can be easily expanded simply by adding pre-assembled splitter modules, without replacing the entire chassis.
• Simplified maintenance: Because the system architecture is readily apparent to maintenance personnel, future network adjustments or testing will be more convenient, significantly reducing the mean time to repair (MTTR).
Flexible form factor to meet the needs of different scenarios

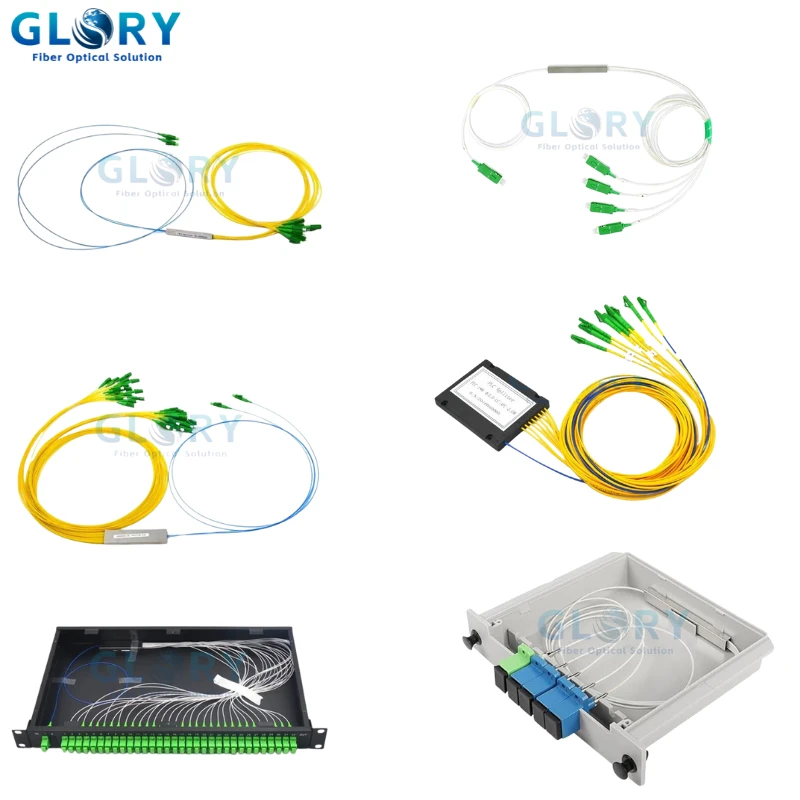

5.This integrated concept has evolved into various product forms to adapt to different deployment scenarios
• Compact integrated patch panel: Suitable for building corridors or outdoor access points, pre-installed with 1x4 or 1x8 splitters.
• Modular high-density distribution box: Supports insertion of multiple pre-installed 1x16 or 1x32 splitter modules for centralized branching in high-user-density areas.
• Outdoor waterproof integrated enclosure: Offers a higher protection rating (IP65 and above), suitable for pole mounting or manhole mounting.
Conclusion: From "Component Assembly" to "Plug and Play System"
Pre-installing PLC splitters into distribution boxes is far more than simple physical integration; it represents a significant shift in fiber optic access network construction-from "field assembly" to "system deployment." This integrated solution maintains the highest levels of craftsmanship in the factory, offers maximum ease of field deployment, and provides operators with optimal network reliability.
