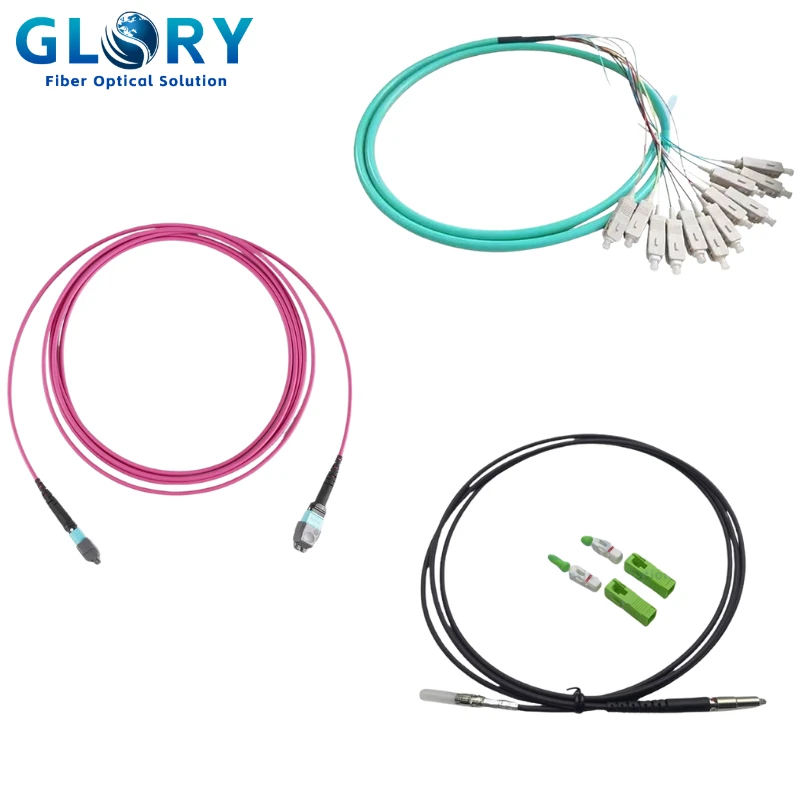

From OM3 to OS2: How to Choose the Right Type of Fiber Optic Patch Cord for Your Application?
Dec 31, 2025|
Choosing the right patch cord type is often a critical step in the success of designing and deploying fiber optic networks. Faced with a variety of specifications on the market, from OM3 and OM4 to OS2, many engineers and purchasing decision-makers feel confused. This article will clarify the core differences between different fiber optic patch cords and provide a clear selection logic to help you make informed decisions.
The Core Decision – Multimode or Singlemode?
The first decision in choosing patch cords is not the specific model, but rather determining the basic type of fiber.
|
Characteristic |
Multimode Fiber (MMF) |
Singlemode Fiber (SMF) |
|
Core Diameter |
Larger (Typically 50µm) |
Very Small (9µm) |
|
Light Transmission Modes |
Multiple Modes |
Single Mode |
|
Light Source Type |
LED or VCSEL (Lower Cost) |
Laser Diode (LD, Higher Cost) |
|
Typical Advantage |
Lower transceiver cost, easier termination |
Extremely high bandwidth, ultra-long distance, no modal dispersion |
|
Cost Consideration |
Lower fiber & connectivity cost |
Lower fiber cost, but higher laser cost |
|
Fundamental Difference |
"Short-reach, Economical" |
"Long-reach, Performance" |
Simple Rule: Distance Determines Mode.
Choose MMF First: For most data center internal links (typically <500m between racks), enterprise campus backbones (<550m).
Must Choose SMF: For telecom long-haul, metro networks, Data Center Interconnect (DCI), or any application where distance may exceed 550m or future upgrades to high bandwidth over long distance are required.
Choosing the Right Multimode Optical Fiber
Once you decide to use multimode fiber, you'll face the choice of OM3, OM4, and OM5. These are different grades of multimode fiber defined by the ISO/IEC 11801 standard.
1. OM3 and OM4: Mainstream Choices
Both use 50/125μm fiber and are optimized for 850nm VCSEL laser sources, making them mainstream for 10G/40G/100G networks.
OM3 ("Enhanced Multimode"): Supports 10Gb/s transmission up to 300 meters, a mature and cost-effective choice.
OM4 ("Advanced Multimode"): Further optimized from OM3, supporting 10Gb/s transmission up to 400 meters and 40/100G transmission up to 150 meters. This is currently the most common default choice for newly built data centers, reserving more link budget for future upgrades.
2. OM5: Future-Oriented Wideband Multimode Fiber
OM5 is a newer standard, also known as "Wideband Multimode Fiber" (WBMMF). Its core capability lies in supporting short wavelength division multiplexing (SWDM) technology in the 850-950nm range.
Core Value: By using multiple wavelengths over a single multimode fiber, higher data rates (such as future 400G) can be achieved more economically, and the transmission distance of multimode systems can be significantly extended.
Selection Recommendation: Suitable for forward-looking data centers with clear future high-bandwidth upgrade plans (such as future deployment of 400G-SWDM4) and who want to maximize the cost advantages of multimode. Currently, if the budget allows, OM5 is the most scalable multimode option for the future.
The Superior Choice for Single-Mode – OS2
In the single-mode field, OS2 is currently the only universally accepted standard. It refers to low-water-peak single-mode fiber conforming to the G.652.D standard, supporting the entire communication band from 1260nm to 1625nm.
Core Advantages: Virtually unlimited bandwidth and extremely low attenuation (typically 0.4 dB/km @ 1310nm, 0.25 dB/km @ 1550nm), with transmission distances reaching tens or even hundreds of kilometers.
Application Scenarios:
Any long-distance transmission (telecom backbone, 5G fronthaul/backhaul).
Data Center Interconnect (DCI).
The core layer within data centers with extremely high requirements for future speed upgrades (e.g., 400G-ZR, 800G).
Its low attenuation characteristic is a decisive factor when link loss budgets are tight.
Quick Selection Decision Tree: Expected transmission distance > 550 meters?
Yes → Select Single-mode OS2.
No → Proceed to the next step.
Application scenario: Short-distance interconnection in data centers or enterprise networks?
Yes → Prioritize Multi-mode.
Extremely cost-sensitive, requiring only 10G, distance < 300 meters? → OM3.
Balancing performance and cost, requiring support for 40/100G to 150 meters, is this the current mainstream choice? → OM4.
Preparing for future 400G+ SWDM technology, pursuing the longest multimode distance? → OM5.
No (e.g., telecom access, remote monitoring transmission, etc.) → Return to step one; OS2 is likely required.
Important Reminder: System Compatibility
Patch cord selection must match other components in the network:
Transceiver: Ensure the transceiver's operating wavelength and fiber type are consistent with the patch cord.
Backbone Cable: The patch cord type (OM3/OM4/OM5/OS2) should be exactly the same as the system backbone cable type to minimize connection loss.
Cleaning and Testing: Regardless of the patch cord chosen, end-face cleaning and link testing are the final and most critical steps to ensure performance meets standards.
Conclusion: The best fit is the optimal choice. There is no "best" fiber optic patch cord, only the patch cord "most suitable" for your specific application scenario. OM3 offers reliable entry-level affordability, OM4 represents the current high-performance benchmark in terms of cost-effectiveness, OM5 paves the way for a multimode future, and OS2 represents the ultimate in long-range transmission capabilities. By clarifying the four dimensions of distance, bandwidth, cost, and future planning, you will be able to easily navigate the choice from OM3 to OS2 and build the most solid physical foundation for your network.
