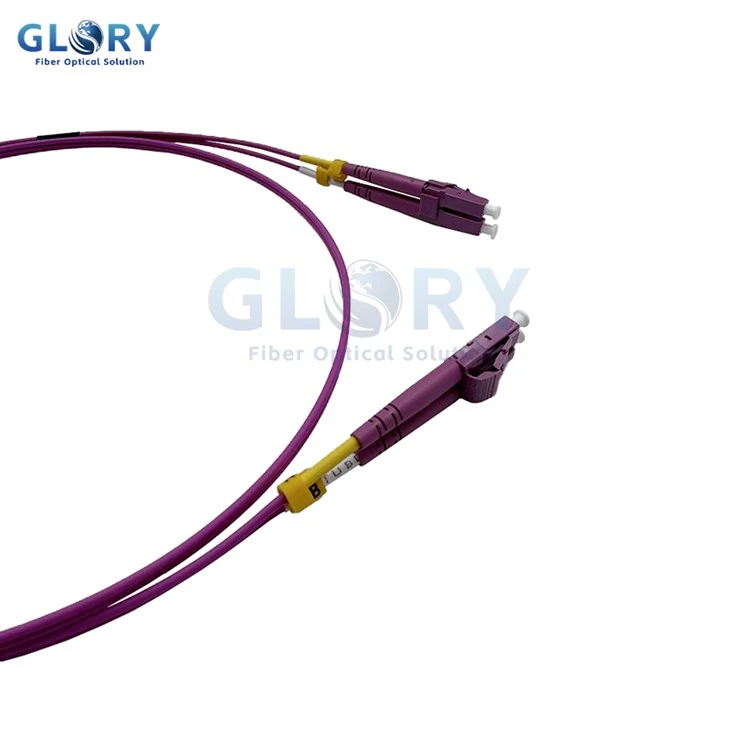

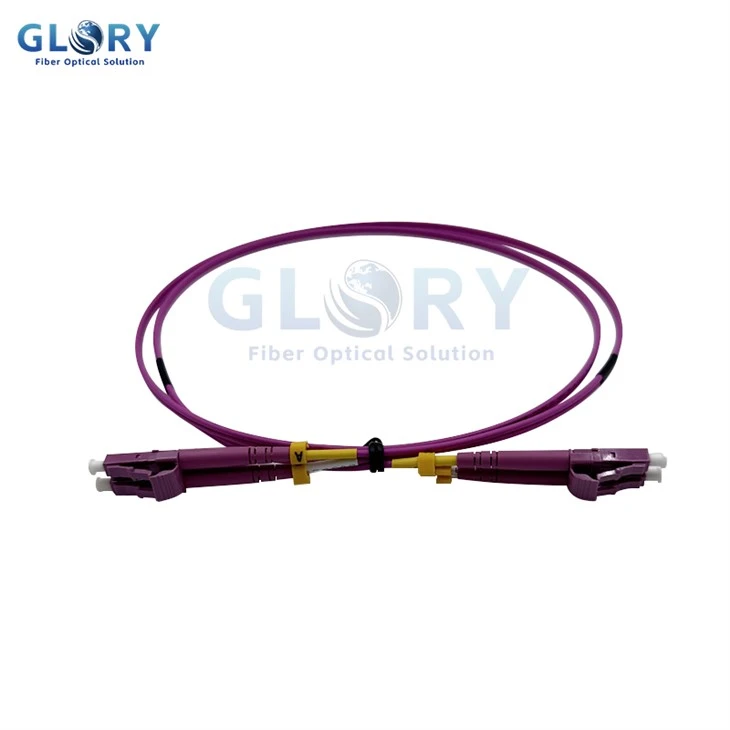

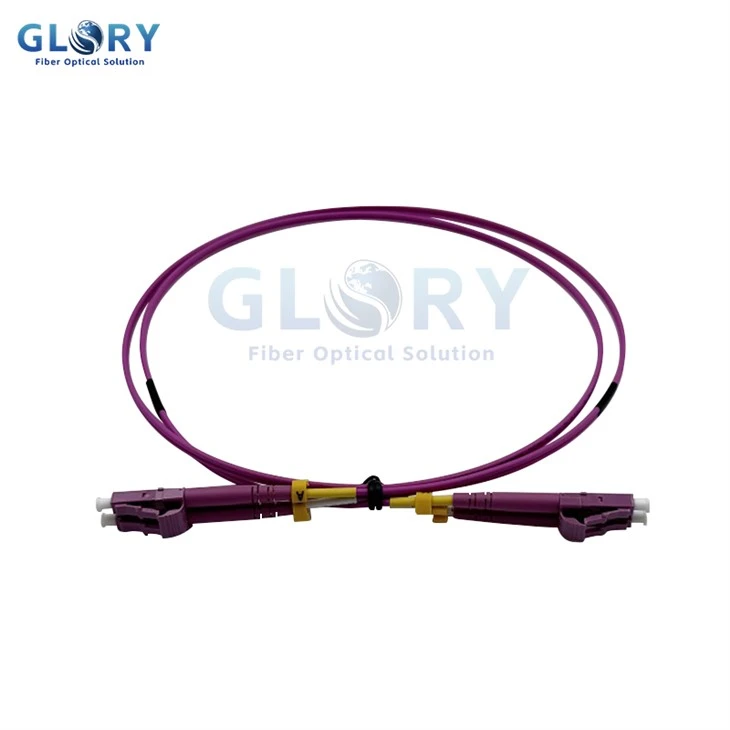

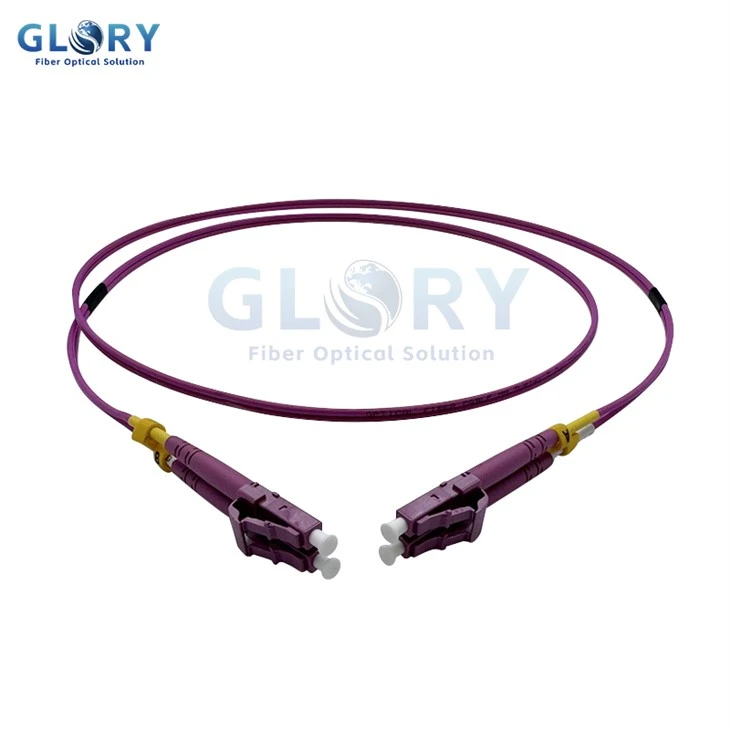

Om4 Fiber Patch Cable
Model: LC/UPC-LC/UPC OM4 duplex 2.0mm LSZH 1M OM4 Fiber Patch Cable
- Product Introduction
LC/UPC-LC/UPC Om4 Duplex Fiber Patch Cable
OM4 fiber patch cables (multimode patch cords) are designed for low-loss, high-speed connectivity in data center applications. They provide flexible interconnections between active equipment, passive optical devices, and cross-connect systems. These OM4 fiber patch cables are terminated with high-precision zirconia ferrule connectors to ensure reliable transmission quality. All cables comply with IEC, EIA/TIA, and Telcordia industry standards.
Specifications:
|
Connector |
LC to LC |
|
Insertion Loss |
≤0.3dB |
|
Polish |
PC to PC |
|
Wavelength |
850/1300nm |
|
Jacket Material |
OFNP |
|
Return Loss |
≥25dB |
|
Jacket OD |
2.0mm |
|
Operating Temp Range |
-40~70°C |
|
Polarity |
A(Tx) to B(Rx) |
|
Minimum Bend Radius |
10D (installed) - 20D (loaded) |
|
Fiber Type |
50/125μm, MM, OM4 |
|
Jacket Color |
Grey |
|
Storage Temp Range |
-45~85°C |
|
Cable Retention |
90N |
|
Strength Member |
Aramid |
Features for Om4 Fiber Patch Cable:
• Enhanced optical performance to meet telecom requirements
• RoHS- and REACH-compliant
• High-quality connectors with zirconia ceramic ferrules
• Low insertion loss and high return loss
• High-quality and compact design
• High-quality uniboot connectors ensuring optimized loss performance

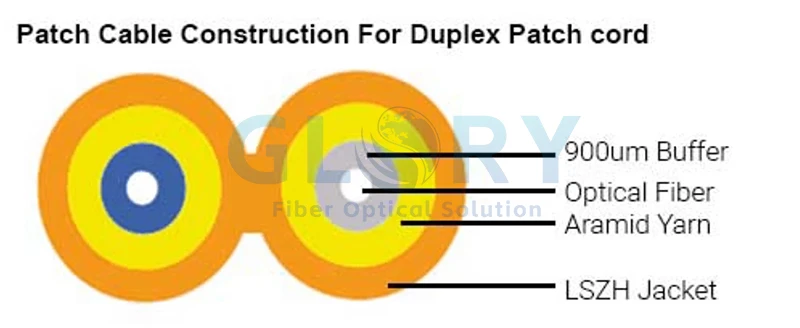

• Two fibers wrapped in a single jacket
• Lightweight, easy to install, and easy to manage
Applications:
OM4 fiber patch cables are designed for high-speed, short to medium-distance data transmission in structured cabling environments. They support multimode fiber applications with enhanced bandwidth and low attenuation, making them ideal for data centers, enterprise networks, and telecommunications. OM4 cables are optimized for 10G, 40G, and 100G Ethernet networks, as well as fiber channel systems. Their compatibility with VCSEL (vertical-cavity surface-emitting laser) sources ensures reliable performance in high-density environments, such as server racks and storage area networks (SANs). These cables are widely used for interconnecting switches, routers, and active equipment while maintaining signal integrity over distances up to 150 meters (for 40G/100G) or 400 meters (for 10G).
