Ftth Fiber Socket
Model: GL-FN-3/4 Ftth Fiber Socket
• Adaptor port: SC/FC
• Indoor Wall Mounted
- Product Introduction
With a large number of client accesses and use of optical fiber cable, at the end of optical fiber cable, it needs to protect the fiber connective joint, store spare fiber and fix the cable. Due to various types of fiber cable, the cable size produced by each company is different as well; it will bring inconvenience to end customers.
GL-FN-3/4 FTTH Fiber Socket has many usages, it could connect with many kinds of cables by Multi-mode, and fix fiber and optical cable firmly, pull-out force is above 50N, the optical cable can be fixed safely, will not damage fibers and bring additional insert loss, to protect optical cable and reduce the risk of damage; easy to operate and low-intensity in construction.
Specifications:
|
Item |
Technical index |
|
Type No. |
GL-FN-3 |
|
Size (mm) |
86x86x25mm |
|
Application |
3.1 x 2.0 mm soft cable Or indoor fiber cable |
|
Diameter of fiber |
125μm |
|
Fastening layer dia. |
250μm & 900μm |
|
Suitable mode |
Single mode & Multi-mode |
|
Tensile strength |
>50 N |
|
Operating temperature |
-40～+75℃ |
|
Adapter |
SC & FC |
|
Insert loss |
≤ 0.2dB(1310nm & 1550nm) |
|
Output port |
2 |
|
Configuration: no adaptor |
|
|
Item |
Technical index |
|
Type No. |
GL-FN-4 |
|
Size (mm) |
86x86x25 |
|
Application |
φ8-φ10.5mm outdoor fiber cable |
|
Diameter of fiber |
125μm |
|
Fastening layer dia. |
250μm & 900μm |
|
Suitable mode |
Single mode & Multi-mode |
|
Tensile strength |
>50 N |
|
Operating temperature |
-40～+75℃ |
|
Adapter |
SC & FC |
|
Insert loss |
≤ 0.2dB(1310nm & 1550nm) |
|
Output port |
1 |
|
Configuration: no adaptor |
|

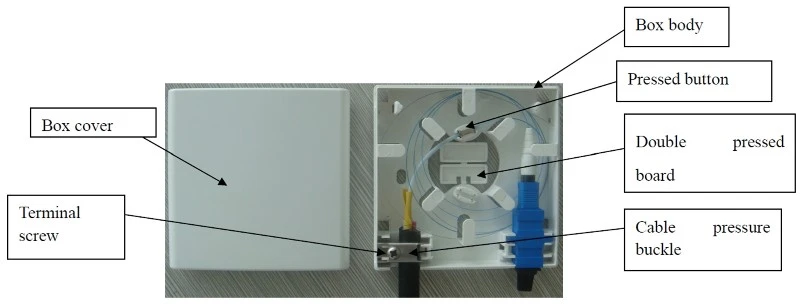

Features
• Traditional box cover design can meet regular and new customers' requirements.
• Novel rotation shaft design is convenient for operation.
• The box fits for indoor wiring in FTTH projects.
• The FTTH fiber socket can be used universally with standard A86 splice box, especially fits for indoor wiring and fast field installation.
• Mechanical connector is used to connect with indoor soft cable.
• Two cover designs meet different demands.
• SC adaptor and FC adaptor are both applicable.
Installation
• Drill two holes used for M4 plastic expansion bolts, according to the size of box, the distance between two holes is 60mm.
• Fix M4 plastic expansion bolts into holes.
• Fix the FTTH fiber socket on the wall by 4×25 tapping screws, pls note the port for adapters should be toward down to avoid the laser to inject into the eye directly
• Close the cover of terminal box.
Applications
• It is applicable for FTTH, FTTO and FTTD, etc
