Indoor Outlet Fiber Socket
Model: GL-FN-12 Fiber optic wall outlet terminal box
Fiber optic wall plate GL-FN-12 is indoor outlet fiber socket that for end user, capable to handle fiber fusion, fiber cables and pigtails. It is used in FTTH project.
- Product Introduction

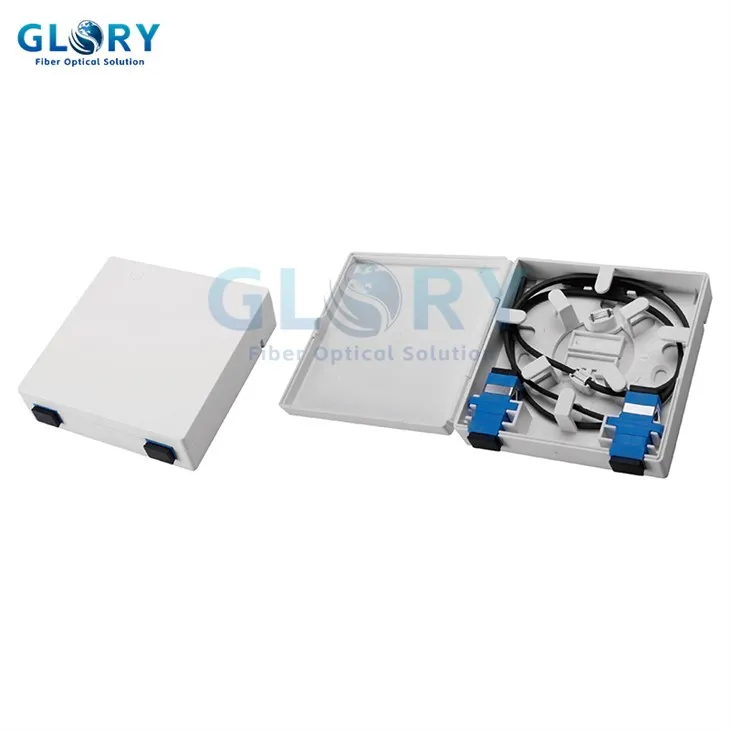

GL-FN-12 Indoor Outlet Fiber Socket is used in the end termination of residential buildings and villas, to fix and splice with pigtails. This Fiber optic outlet can be installed on the wall mount with adapting variety of optical connection styles; optical fiber can be managed effectively; our high-quality fiber optic socket is suitable in home or office and it is able to provide end users with optical access or data access.
Specifications:
|
Type No. |
GL-FN-12 |
|
Size (mm) |
86x86 |
|
Application |
3.1 x 2.0 mm soft cable Or indoor fiber cable, wall mounting |
|
Diameter of fiber |
125μm |
|
Fastening layer dia. |
250μm & 900μm |
|
Suitable mode |
Single mode & Multi-mode |
|
Tensile strength |
>50 N |
|
Operating temperature |
-40～+75℃ |
|
Adapter |
SC & FC |
|
Insert loss |
≤ 0.2dB(1310nm & 1550nm) |
|
Output port |
2 |
Features of Indoor Outlet Fiber Socket
• Radian appearance makes it slinky
• ABS plastic, light weight, reasonable design
• Support MM and SM fiber connection
• 2 ports for SC simplex, LC duplex adapters
• With hinged cover, easy to open and close
Applications
• FTTH
• Optical communication system
