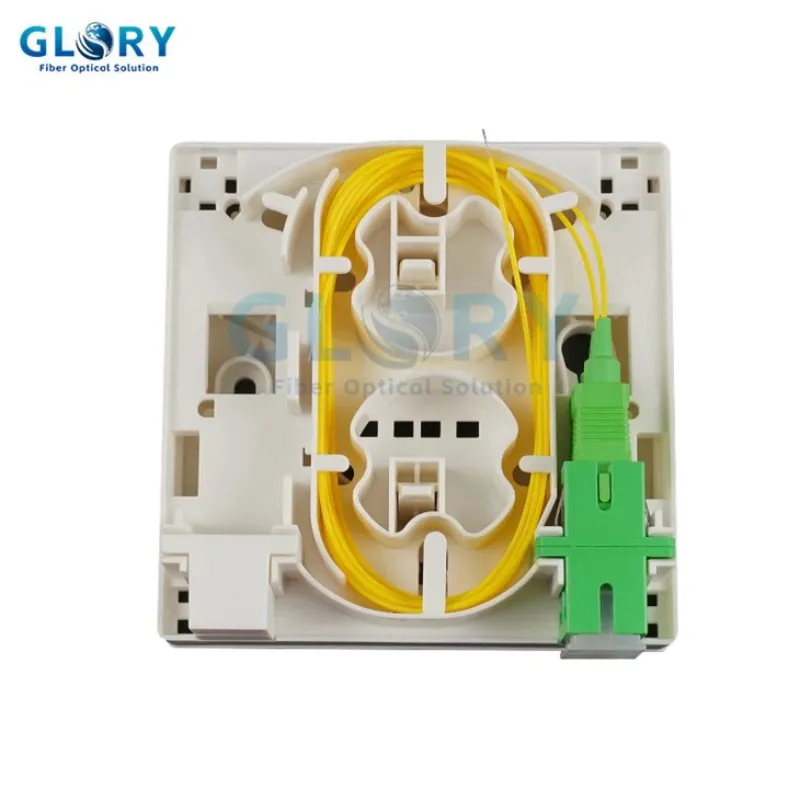

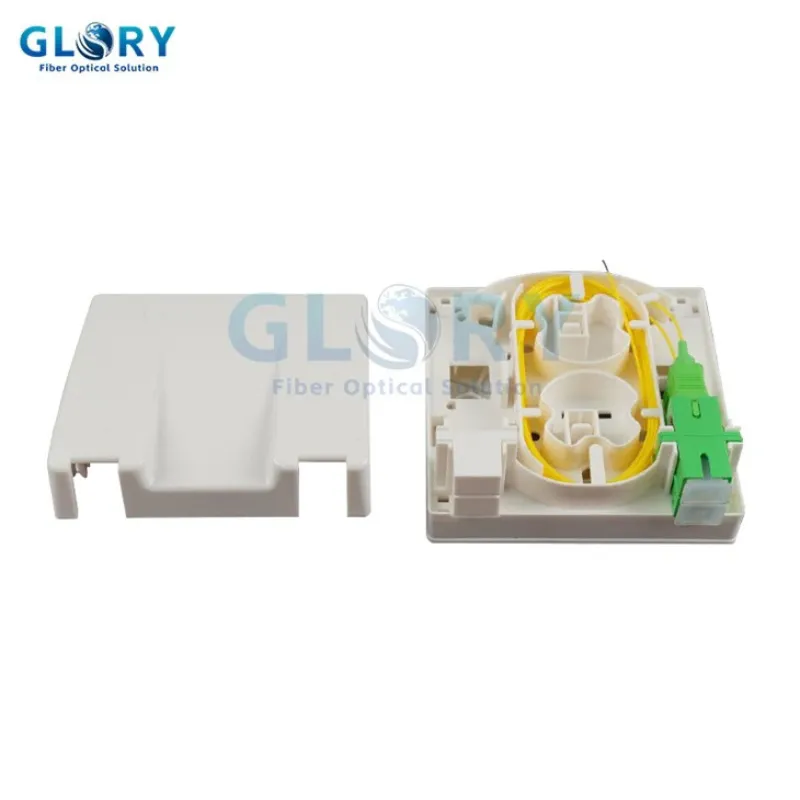

Fiber Optic Wall Socket
Model: Fiber Optic Wall Socket GL-FTB104B-S3
• Wall Mount/Desktop, 4 Cable Access Ports, Indoor Use
• Easy installation and maintenance
• Load or unload pigtail and adaptor
- Product Introduction
Analysis of the Technical Characteristics of Fiber Optic Wall Export
This Fiber Optic Wall Socket offers a perfect balance of functionality and aesthetics for modern FTTH deployments. Its innovative design solution not only presents a neat and professional visual effect in residential and commercial scenarios but also ensures outstanding optical performance.
Efficient installation design
By optimizing the construction process through the rapid installation system, the installation efficiency has been increased by up to 50% compared with the traditional solution. Precision engineering components ensure the accurate calibration of optical fibers, keep signal loss at the lowest level, and achieve stable connection that can be used immediately after installation.
Durable structure and flexible expansion
Made of carefully selected high-strength and durable materials, it ensures the durability of appearance and functional stability during daily use. The modular architecture supports convenient maintenance and future system upgrades, allowing for adaptation to network evolution requirements without the need for an overall replacement.
Our Products
Technical Specifications
Physical Properties
Dimensions:86mm × 86mm × 25mm
Weight:40 grams
Material:Flame-retardant PC/ABS
Color Options:White/Ivony/Gray
Performance Parameters
Insertion Loss:≤0.2 dB
Return Loss:≥50 dB
Operating Temperature:-25°C to +60°C
Durability:>1000 mating cycles
Compliance & Standards
Safety Standards:UL94V-0
Environmental:ROHS Compliant
Quality:ISO 9001:2015
IP Rating:IP54
Product Features & Design Advantages
Aesthetic Design
Sleek, low-profile design blends seamlessly with modern interior decor while providing easy access to connections.
Enhanced Protection
Integrated dust covers and strain relief systems ensure long-term reliability and protection against environmental factors.
Universal Compatibility
Supports various connector types including SC, LC, and FC adapters for flexible network configurations.
Applications and Deployment Scenarios
This Fiber Optic Wall Socket is specifically designed for FTTx network application scenarios. As a key interconnection node between feeder optical cables and distribution optical fibers, it undertakes the core tasks of fiber pigtail termination, fusion splicing function integration, and efficient optical fiber management. It is an important infrastructure for fiber to the Home (FTTH), multi-household unit (MDU), and commercial park network connection solutions.
The compact structural design supports concealed installation on building facades, telecommunications rooms or existing public utility poles. Combined with the dual-mode installation flexibility of wall-mounted and pole-mounted, network planners can precisely optimize the node layout positions based on specific coverage requirements and physical space limitations.
Technical Support and Quality Assurance
Industry accumulation and global trust
Glory Optical Communication has been deeply engaged in the field of optical fiber communication for more than ten years. With its continuous focus on innovation and R&D, quality control and customer satisfaction, it has become the preferred manufacturer of high-quality optical communication products for global telecom operators.
Intelligent Manufacturing and Standard Assurance
The modern production base located in Ningbo, China, is equipped with cutting-edge production facilities and standardized testing laboratories. Through the entire process of precise manufacturing and strict inspection, it ensures that every product meets international technical standards. The factory strictly adheres to multiple industry certification systems and quality management system norms, establishing a full-chain quality assurance system from production to delivery.
Environmental responsibility and customized services
All our products fully comply with the RoHS environmental protection directive requirements, achieving environmentally friendly features throughout the entire product life cycle. In response to the diverse project requirements, we offer flexible and customized solutions, and our professional technical team provides full support throughout the technical specification formulation and technical guidance during the project implementation stage.
Service and Support
We sincerely thank you for your trust and support. We always adhere to a firm belief and provide you with stable and reliable services and technical support. If you have any questions, please feel free to contact us at any time. We look forward to building a long-term mutually beneficial cooperative relationship with you.
