Fiber Optic Cable Terminal Box
Model: FDB-S108B Fiber Optic Cable Terminal Box
8 ports High Quality Indoor/Outdoor Wall Mounted Dustproof Fiber Optic Cable Terminal Box
- Product Introduction

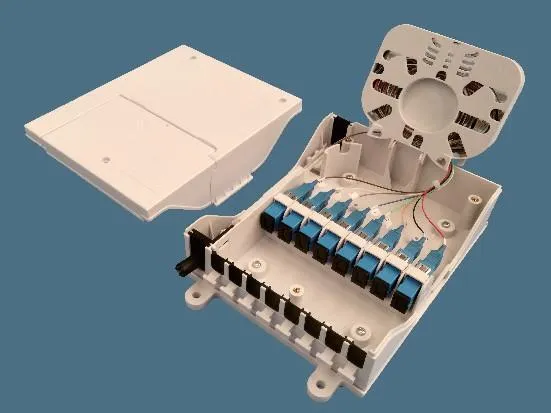

Fiber Optic Cable Terminal Box
The Fiber Optic Cable Terminal Box is used to protect fiber optic cables and facilitate fiber pigtail splicing at cable terminals. Constructed from high-quality ABS+PC material, it features anti-impact, flame-retardant properties and resistance to environmental factors, dust, and moisture. Compact in size and design, this terminal box is ideal for fiber optic connections in indoor network cabling systems.
The Fiber Optic Cable Terminal Box supports installation of up to eight SC, LC, or FC adapters. Its flame-retardant housing ensures durability against environmental challenges. The fiber tray's organized layout enables efficient fiber management, simplifying storage and maintenance. A flip-up design allows for easy handling and visual inspection of connections.
Product Details:
|
Model |
FDB-S108B Fiber Optic Cable Terminal Box |
||
|
Dimension (mm) W×D×H |
192x133x47 |
Outer Carton (mm) W×D×H |
480x470x520 |
|
Material |
ABS/PC |
Product Net weight (Kg) |
0.3 |
|
Cable diameter (mm) |
≤F12 |
G.W (Kg)/carton |
19.5 |
|
Cable in/out: |
4/8 |
Quantity/carton |
60 |
|
Max splice |
8 |
Volume /carton |
0.117 |
Features for Fiber Optic Cable Terminal Box:
• Dust & Weather Resistance: Protects against dust, UV rays, and moisture to ensure reliable performance in harsh outdoor or industrial environments.
• Splitter Compatibility: Supports 1×4 or 1×8 PLC splitters for flexible fiber distribution and network expansion.
• Robust Cable Management: Reinforced strain relief clamps withstand pull forces over 50N (11.2 lbf), eliminating accidental disconnections.
• Wide Operating Range: Functions flawlessly in temperatures from -40°C to 60°C (-40°F to 140°F) and 95% relative humidity (RH).
• High-Density Design: Space-saving structure supports up to 8 fiber ports/cables for scalable network deployments.
Applications in FTTH (FIBER TO THE HOME):
8-port Fiber Optic Cable Terminal Box play a vital role in fiber-to-the-home (FTTH) networks, offering a reliable and compact solution for managing fiber connectivity in residential and commercial environments. In FTTH deployments, these fiber terminal boxes act as central distribution points, enabling technicians to efficiently organize incoming feeder cables and route them to individual user lines. They are ideal for apartment complexes, office buildings, and multi-dwelling units (MDUs) where multiple users require simultaneous high-speed internet, TV, and voice services.
Key benefits include ease of maintenance, compatibility with single-mode and multi-mode fibers, and compliance with industry standards such as Telcordia GR-771. Their user-friendly design helps reduce deployment time and costs for installers and ISPs, making them a cost-effective, future-proof choice for modern fiber infrastructure.
