Fiber Optic Rosette Box

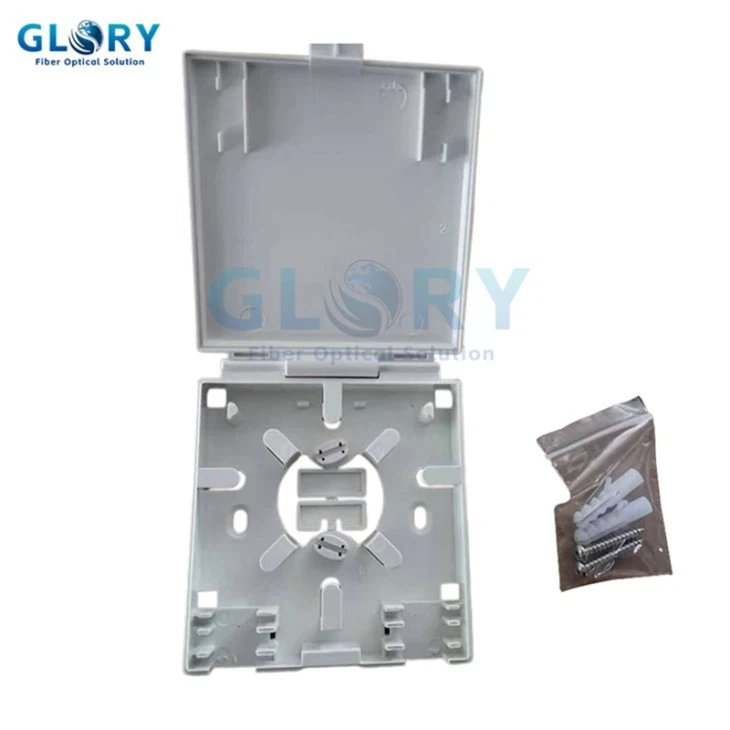

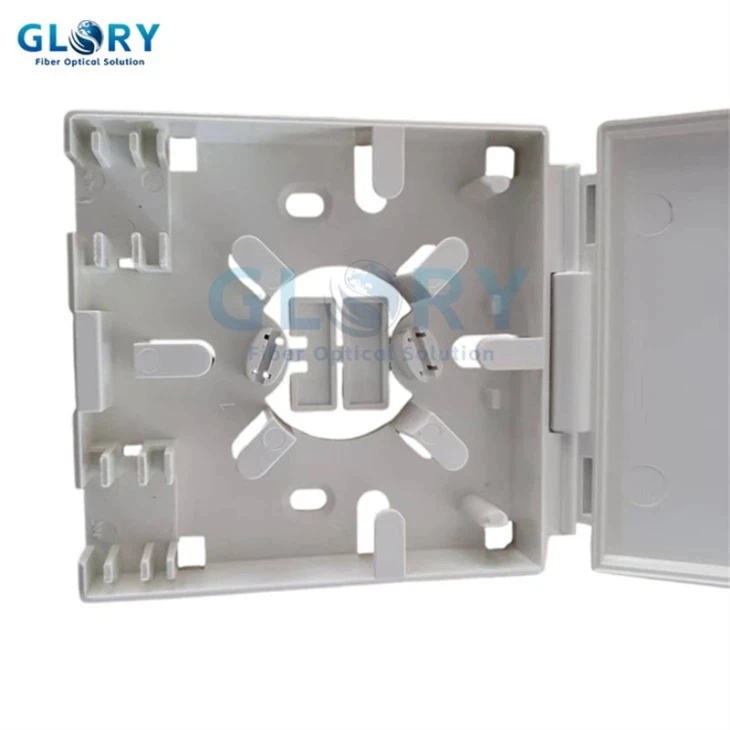

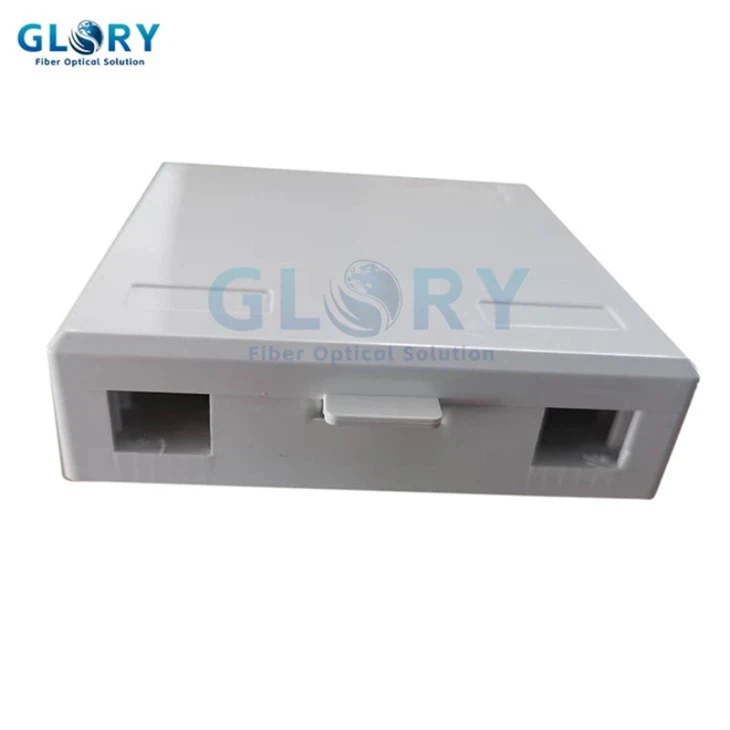

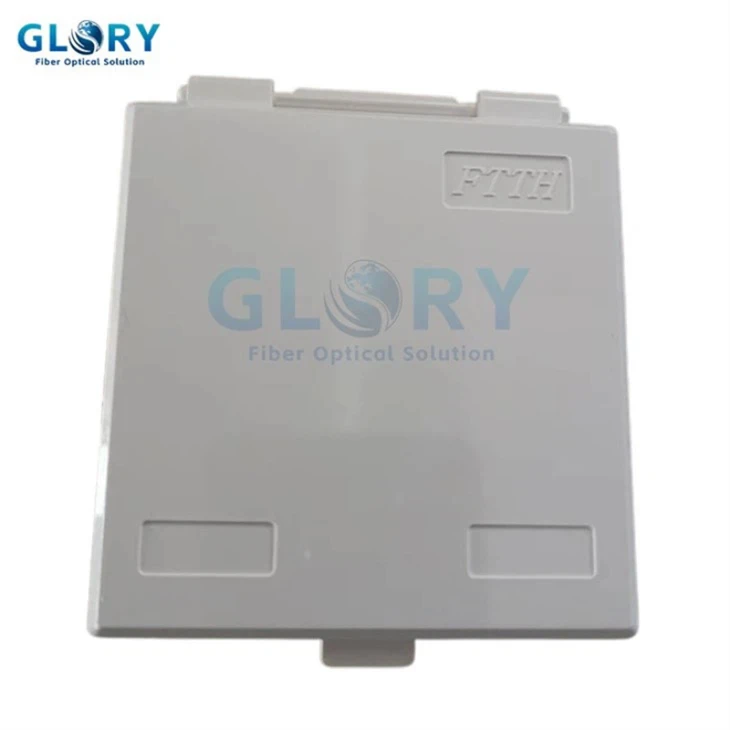

Model: Wall mounted Fiber optic Rosette Box The wall fiber rosette box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber termination, storage and cable connection in one solid protection box.
- Product Introduction
This wall-mounted Fiber optic Rosette Box adopts a compact plug-in design, combining multi-functional integration with modern aesthetic concepts. Through innovative plastic injection molding technology, the fiber optic panel not only achieves an elegant appearance but also perfectly ADAPTS to diversified deployment scenarios such as FTTH (Fiber to the Home), FTTO (Fiber to the Office), and FTTD (Fiber to the Desktop).
Its streamlined structure design features outstanding environmental adaptability, supporting convenient installation and flexible deployment. It not only ensures a user-friendly operation experience but also seamlessly integrates into existing network systems.
Technical Specification
| Parameter | Specification | Standards |
|---|---|---|
| Material | Flame-retardant ABS/PC alloy | UL94 V-0 |
| Dimensions | 86mm × 86mm × 35mm (Standard) | IEC 60670-1 |
| Installation | Wall mount, compatible with standard junction boxes | Building codes |
| Capacity | 1-2 SC/LC adapters with fiber storage | FTTH deployment |
| Operating Temperature | -25°C to +60°C | IEC 60068-2 |
| Ingress Protection | IP30 (Indoor use) | IEC 60529 |
Product Features & Design Advantages
Space-Optimized Design
Compact dimensions with efficient internal layout maximize space utilization while accommodating standard fiber optic adapters and providing adequate bending radius protection for internal fiber routing.
Enhanced Cable Management
Integrated fiber storage compartments and cable fixation points ensure proper bend radius control and strain relief, preventing signal degradation and mechanical damage to delicate optical fibers.
Easy Installation Access
Tool-less opening mechanism and clearly labeled ports simplify installation and maintenance procedures, reducing deployment time and minimizing the need for specialized tools during service operations.
Industry application scenarios and solutions
The Wall Mount Fiber optic Rosette Box is specifically designed for FTTH termination points in residential apartments, office buildings, hotels, and educational institutions. Its compact form factor makes it ideal for space-constrained environments where discrete fiber optic termination is required. This enclosure serves as the final interface between the building's internal wiring and the service provider's network, providing a professional termination point for fiber optic connections. It supports various FTTH architectures including point-to-point and passive optical networks (PON), ensuring compatibility with different service provider requirements.
Technical Support and Quality Assurance
All our fiber distribution boxes undergo rigorous testing protocols to ensure long-term reliability and performance consistency. Our quality management system is certified to ISO 9001:2015 standards, reflecting our commitment to excellence in manufacturing processes and product quality.
Our products comply with RoHS directives, ensuring environmental responsibility throughout the product lifecycle. Customization options are available to meet specific project requirements, with our engineering team providing technical support during the specification and implementation phases.
Service and Support
We sincerely appreciate your trust and support. It is our unwavering commitment to provide you with consistent, dependable service and technical assistance. Should you have any inquiries, please feel free to reach out to us at any time. We look forward to fostering a long-term and mutually beneficial partnership with you.
