Indoor Drop Fiber Cable
Model: GJXFH / GJXH Flat Drop Cable
Indoor drop fiber cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables. and it's ideal for indoor cabling, end users directly cabing, and access network.
- Product Introduction

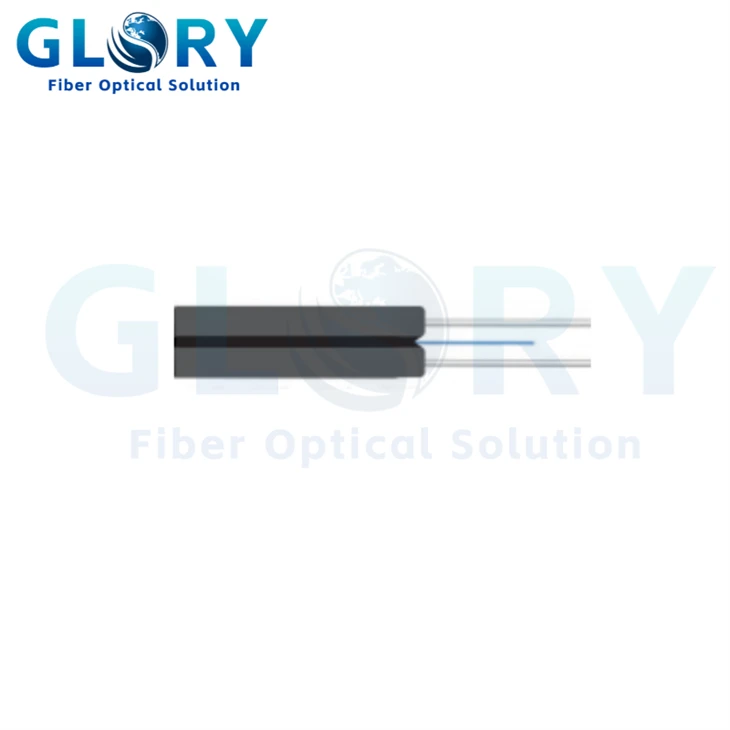

GJXFH / GJXH Flat Drop Cable
GJXFH/GJXH Flat Drop Cable is a Indoor drop fiber cable designed for last-mile connectivity solutions.
This cable offers significantly greater bandwidth for data transmission and demonstrates superior resistance to interference compared to standard indoor fiber cables.Its design is optimized for indoor cabling, direct end-user connection, and access network deployment, providing an ideal solution for modern high-speed communication needs.

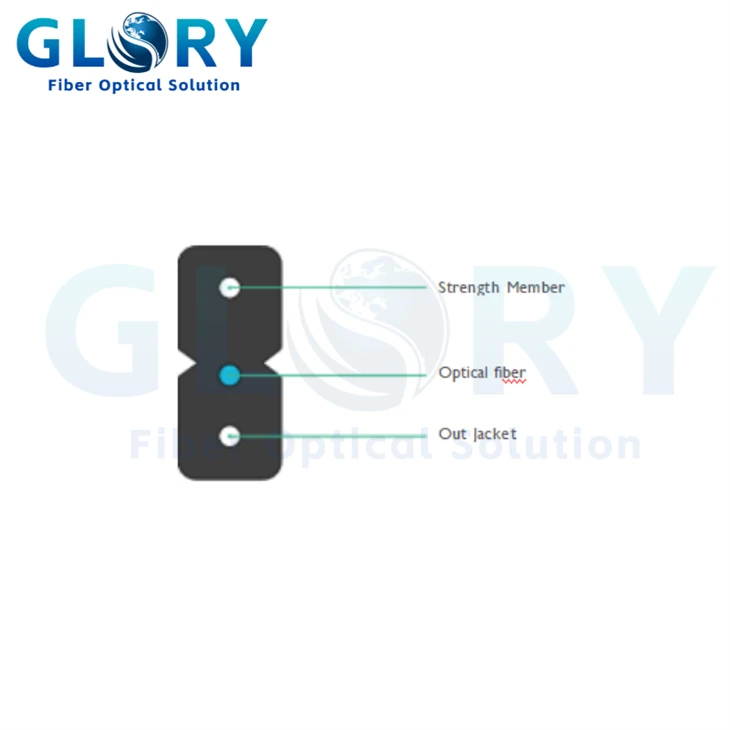

The cable features a unique groove design that facilitates easy stripping and efficient splicing, significantly simplifying installation and maintenance procedures. This construction approach combines mechanical protection with flexibility, ensuring both performance reliability and installation convenience.
Features
Simple to Install
The GJXFH/GJXH Flat Drop Cable preserves the complete functionality of conventional indoor fiber optic cables while delivering superior performance attributes.
Its compact cross-section and reduced weight facilitate significantly smoother handling and installation.
Enduring Performance
Thanks to its remarkable pliability and ability to withstand tight bending radii. The design integrates robust materials that shield against compressive forces and tensile loads, safeguarding the embedded optical fibers both during setup and in prolonged service. These characteristics collectively yield a solution requiring minimal upkeep while consistently providing peak performance over its entire service life.
Safety Designed
Manufactured from eco-conscious, low-smoke, zero-halogen (LSZH) compounds, the cable jacket enhances safety during fire incidents by substantially limiting the release of hazardous fumes and obscuring smoke. This property renders the cable particularly appropriate for use in mandating strict fire safety protocols.
Comprehensive Application Scenarios
The product serves as an optimal solution for direct end-user cabling, enabling seamless connectivity from distribution points to individual apartments, offices, or rooms. This direct connection approach minimizes signal loss and ensures consistent performance for end-users regardless of their location within the network.
Enterprise Network Backbones
This high-performance cabling system is engineered for establishing high-bandwidth data links between network distribution frames (NDFs), server rooms, and telecommunications closets within commercial infrastructure.
01
Data Center Interconnects
This high-performance interconnect solution is engineered for seamless cabinet-to-cabinet data transmission in contemporary data center architectures. Featuring optimized bending radius capabilities and enhanced mechanical robustness, the cable maintains reliable connectivity within high-density server racks.
02
Fiber-to-the-Desk (FTTD)
Perfect for extending fiber connectivity directly to workstations and office endpoints. The cable's small diameter and flexibility enable discreet installation along walls, under carpets, and through furniture raceways, providing future-proof connectivity solutions that surpass traditional copper limitations.
03
Telecommunications Equipment
Widely used for interconnecting various communication equipment including optical distribution frames, patch panels, media converters, and network switches. The cable's standardized dimensions ensure compatibility with common fiber management systems and termination hardware.
04
Technical Specifications
The cable demonstrates exceptional performance across various environmental conditions, maintaining stable operation within a temperature range of -20°C to +60°C during storage and operation. This wide temperature tolerance ensures reliability in diverse climatic conditions and installation environments.
Optical performance parameters include insertion loss of ≤0.3dB and return loss of PC≥40dB, UPC≥50dB, APC≥60dB, ensuring efficient signal transmission with minimal degradation. The cable construction maintains these performance characteristics throughout its operational life, providing consistent and reliable connectivity for critical applications.
Available in standard lengths of 1km or 2km per roll, the cable offers flexibility for various deployment scenarios. Custom lengths can be manufactured to meet specific project requirements, providing adaptability for both small-scale and large-scale installations.
|
Cable type |
OD(mm) |
Nominal Weight(kg/km) |
Max.tensile Strenght(N) |
Crush Resistance (N/100MM) |
Min.Bending Radius(mm) |
|||
|
Short-term |
Long-term |
Short-term |
Long-term |
Dynamic |
Static |
|||
|
GJXFH-1XX GJXH-1XX |
(2.0±0.1)×(3.0±0.1) |
7.5 |
80 / 200 |
40 / 100 |
1000 |
500 |
20D |
15D |
|
GJXFH-2XX GJXH-2XX |
(2.0±0.1)×(3.0±0.1) |
7.5 |
80 / 200 |
40 / 100 |
1000 |
500 |
20D |
15D |
|
GJXFH-4XX GJXH-4XX |
(2.0±0.1)×(3.0±0.1) |
7.5 |
80 / 200 |
40 / 100 |
1000 |
500 |
20D |
15D |
|
Storage/Working temperature(℃) |
-20~+60 |
|||||||
Note: XX is fiber optic model and D is the diameter of optical cable.
