Indoor Fiber Cable
Model: Indoor Flat Twin Armored Fiber Optic Cable GJFJV-0.9mm Tight-Buffered LSZH PVC
- Product Introduction

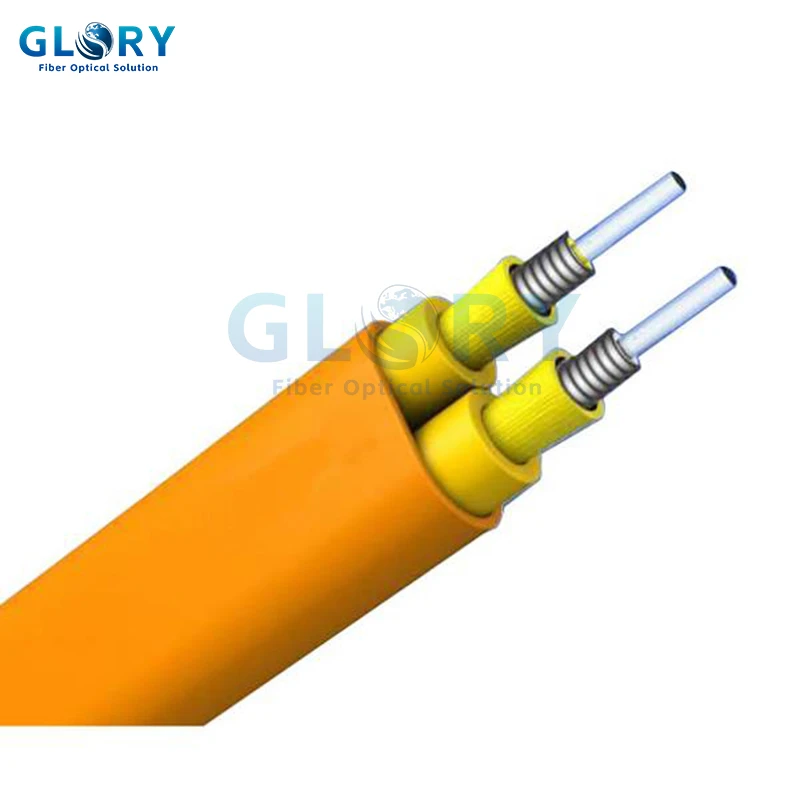

Indoor Flat Twin Armored Fiber Optic Cable
The "Indoor Figure Zero Flat Twin Armored Fiber Optic Cable GJFJV" features 0.9mm tight-buffered LSZH PVC optical fibers. These fibers are sheathed with a layer of Kevlar yarn for tensile strength reinforcement. A steel tape is then applied over the Kevlar for armored protection. An inner jacket of either PVC or LSZH material is extruded over this assembly. Finally, the cable is completed with a flat outer jacket made of either PVC or LSZH (Low Smoke, Zero Halogen, Flame-retardant) material.
Technical Parameters:
|
Diameter |
Tight buffer |
Weight |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load(N/100mm) |
Minimum Bending Radius (MM) |
Storage |
|||
|
(MM) |
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(℃) |
|
2.0 |
0.6 |
15.00 |
1000 |
300 |
1000 |
500 |
20D |
10D |
-20+60 |
|
2.4 |
0.6 |
16.00 |
1000 |
300 |
1000 |
500 |
20D |
10D |
-20+60 |
|
2.8 |
0.6 |
18.00 |
1000 |
300 |
1000 |
500 |
20D |
10D |
-20+60 |
|
3.0 |
0.6 |
18.00 |
1000 |
300 |
1000 |
500 |
20D |
10D |
-20+60 |
|
Optical Characteristics: |
||||
|
Fiber Sort |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
|
A1b:62.5/125 |
||||
|
Single mode |
G.652(A,B,C) |
B1.1: Conventional fiber |
||
|
G.652D |
B2: Zero dispersion shifted |
|||
|
G.655 |
B1.2 : Cut-off wavelength shifted |
|||
|
G.657(A1,A2 ,B3) |
B4: Main technical data for positive dispersion shifted single-mode fiber |
|||
Features of Indoor Fiber Cable:
• Two single-fiber
• Flat twin configuration
• High strength Kevlar yarn member
• Steel armored flexible tube
• Single-fiber with independent strength member
• Excellent mechanical and environmental performance
Applications:
The Indoor Fiber Cable's primary applications are within data centers, telecom exchanges, industrial automation networks, enterprise LANs, and large buildings where reliable, high-performance fiber links are essential. The armored protection makes it ideal for areas vulnerable to physical stress, like underfloor pathways, across factory floors, or near heavy equipment. It's also commonly used as durable backbone links between wiring closets, security feeds requiring uninterrupted data, and connecting core network devices within server cabinets, ensuring robust performance where standard fiber might be compromised.
