1000 Ft Fiber Cable
Item: 1000 Ft Fiber Cable
Model: FTTH Fiber Optic Patch Cables Figure 8 Aerial Self Supporting
1000Ft Self-supporting FTTH fiber drop cable is constructed with one or two single-mode fiber (G.657A). The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.
- Product Introduction

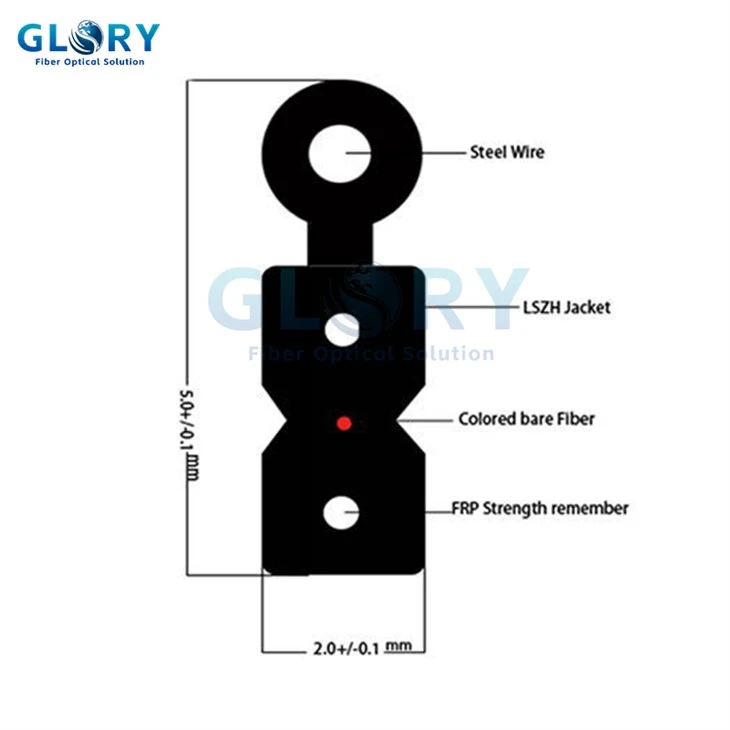

Most of the fiber optical drop cables are single-core and double-core structures, and can also be made into a four-core structure. The length of fiber cable is 1000Ft. The cross-section is an 8-shaped cross-section. The reinforcement is located at the center of the two circles. The metal or non-metallic structure can be used. The optical fiber is located at the geometric center of the 8-shaped geometry. Small bending radius optical fiber G.657 is used for the optical fiber in the sheathed cable, which can be laid with a bending radius of 20mm, which is suitable for entering the house in the building by means of pipes or bum lines.
Features for FTTH Fiber Cable:
• Special bending-resistant optical fiber, providing greater bandwidth and enhancing network transmission performance;
• Two parallel FRP or metal reinforcements make the optical drop cable have good pressure resistance and protect the optical fiber;
• The optical cable has simple structure, light weight and strong practicability;
• Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
• Low-smoke halogen-free flame-retardant polyethylene sheath or flame-retardant PVC sheath, environmental protection.
• It can be matched with a variety of on-site connectors and can be completed on-site.
• Soft and bendable, easy to deploy and maintenance;
• Smaller diameter, Light weight, and high practicability.
Fiber Parameters:
|
No. |
Items |
Unit |
Specification |
|
|
G.657A1 |
||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
9.0±0.4 |
|
1550nm |
μm |
10.1±0.5 |
||
|
2 |
Cladding Diameter |
μm |
124.8±0.7 |
|
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
|
5 |
Coating Diameter |
μm |
245±5 |
|
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
|
9 |
Attenuation (max.) |
1310nm |
dB/km |
≤0.35 |
|
1550nm |
dB/km |
≤0.21 |
||
|
10 |
Macro-Bending Loss |
1turn×10mm radius @1550nm |
dB |
≤0.75 |
|
1turn×10mm radius@1625nm |
dB |
≤1.5 |
1000 Ft Fiber Cable Parameters:
|
Items |
Specifications |
|
|
Fiber Count |
1~4 |
|
|
Colored Coating Fiber |
Dimension |
250±15μm |
|
Color |
Blue, Orange, Green, Brown |
|
|
Strength Member |
Dimension |
0.5mm |
|
Material |
FRP |
|
|
Self-Supporting Member |
Dimension |
1.0mm |
|
Material |
Steel Wire |
|
|
Jacket |
Dimension |
5.2±0.2mm×2.0±0.1mm |
|
Material |
LSZH |
|
|
Color |
Black |

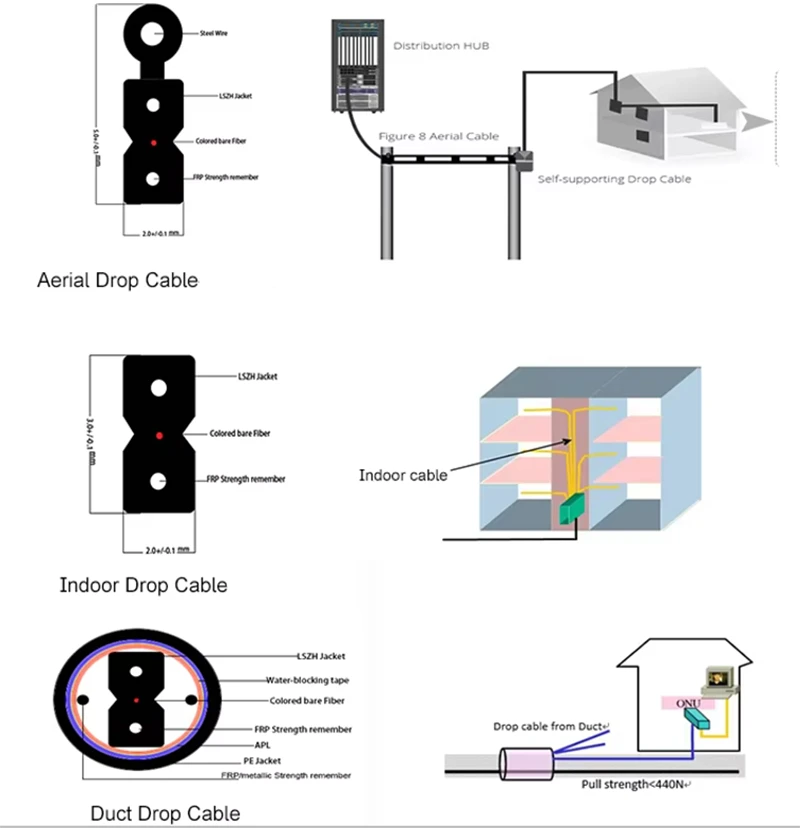

Ideal Solution by Using Self-supporting 1000 Ft FTTH Fiber Cable
A high-capacity FTTH network gives you opportunities to build a competitive advantage and maintain an eco-sustainable network that consumes less power. With simple structure and light weight, self-supporting FTTH drop cable is highly recommended for the connection of outdoor and indoor cabling.
Application
• Outdoor aerial application
• Used in the FTTH projects
• High speed optical routes in building
• High performance optical network operation
