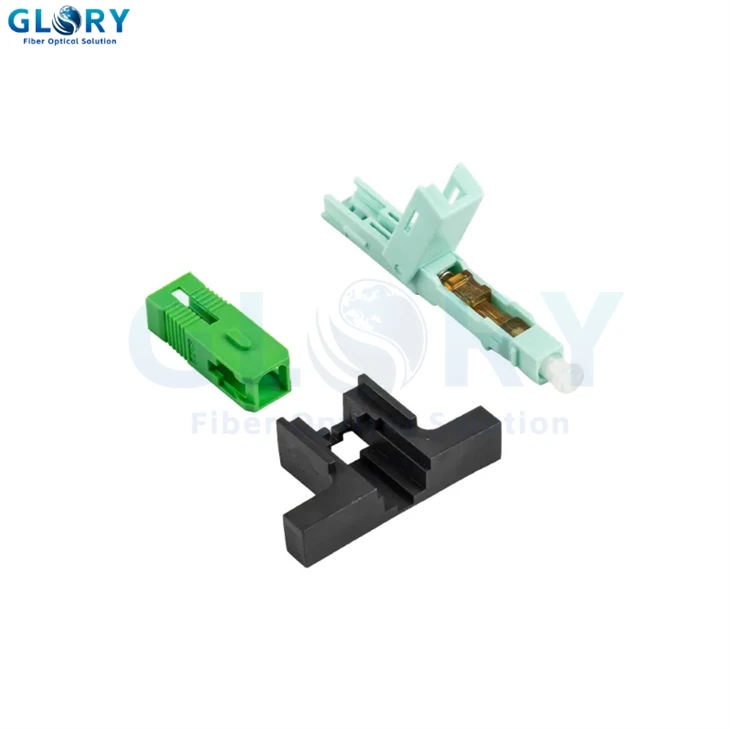

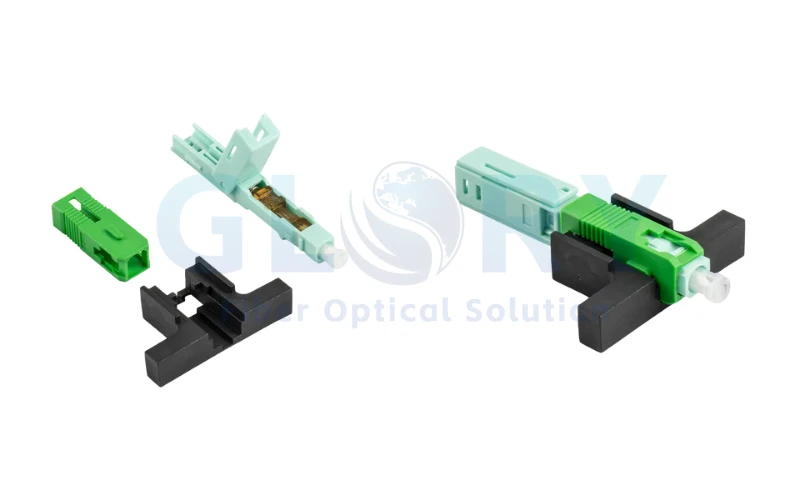

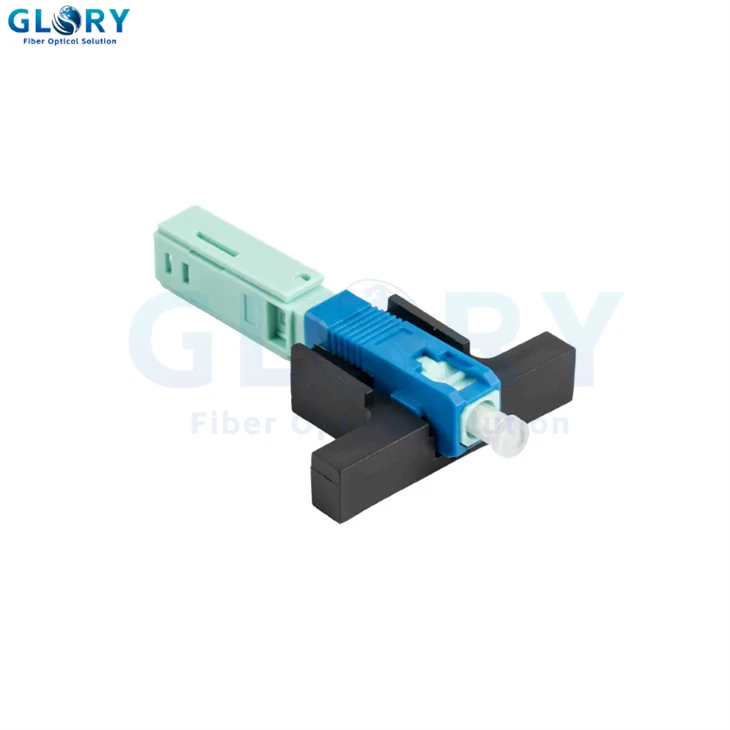

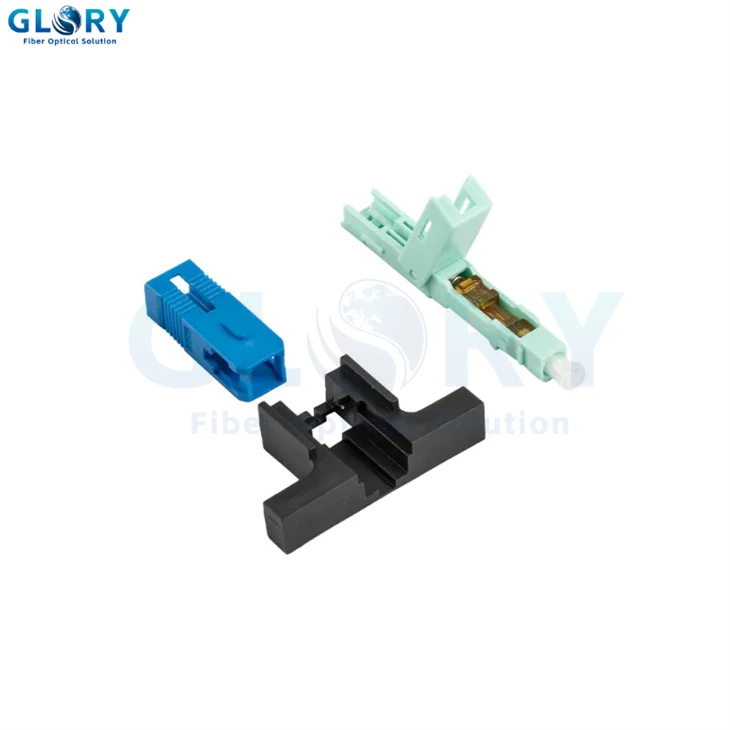

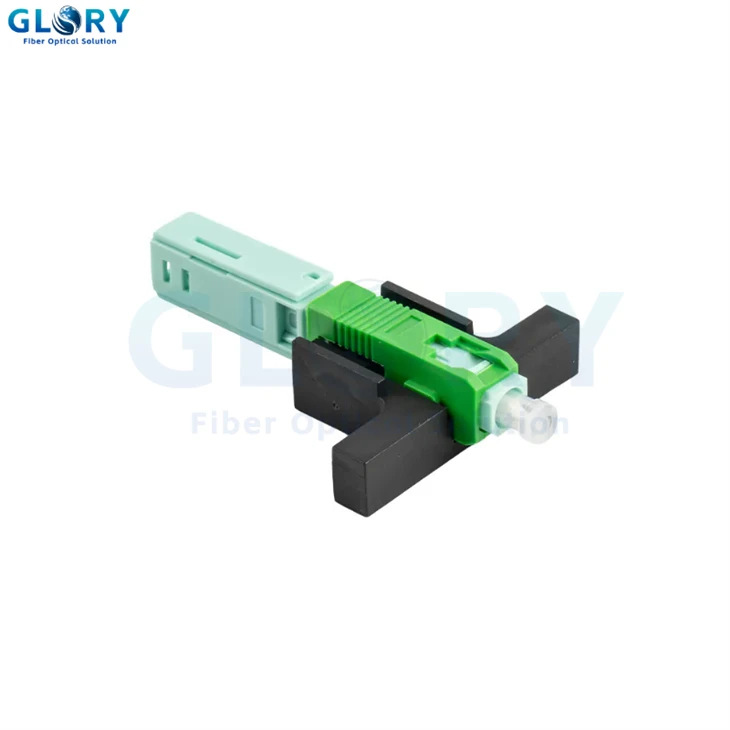

SC Fast Fiber Connector

ltem:SC Fast Fiber Connector
Length:53mm
Ferrules:SM/UPC / SM/APC
Inner Diameter of ferrules:125um
Insertion Loss AVG≤0.3dB MAX≤0.5dB Return Loss UPC≥50dB / APC≥55dB Working Temperature:-20~+75℃
Storage Temperature:-40~+85℃
Mating Times:500Times
Drop cable:2.0*3.0mm/2.0*5.0mm

Send Inquiry

Product Introduction

SC Fast Fiber Connector is an efficient, field-installable solution designed to streamline optical fiber connections. Its innovative mechanical connection mechanism delivers exceptional stability and reliability, while supporting up to 500 mating cycles to ensure long-term durability in demanding environments.

Technical Specification

Item	SC Fast Fiber Connector
Length	53mm
Ferrules	SM/UPC / SM/APC
Inner Diameter of Ferrules	125um
Insertion Loss	AVGs0.3dB MAX<0.5dB
Return Loss	UPC250dB / APCz55dB
Working Temperature	-20~+75C
Storage Temperature	-40~+85 °C
Mating Times	500Times
Cable Diameter	Drop cable2.0.0mm/2.05.0mm

Industry application scenarios and solutions

5G fronthaul network

FTTH Passive Optical Network

Data Center Interconnection

Industrial Internet of Things

Grounding capability for armored cables and strength members

Service and Support

We guarantee the performance of every product we deliver with complete confidence. Our expert technical support team partners proactively with you to deliver timely, effective solutions to any challenges you may encounter.
