The Color Code of Fiber Optic Pigtails: More Than Meets the Eye
Dec 19, 2025| Decoding the Spectrum – What Each Color Tells You

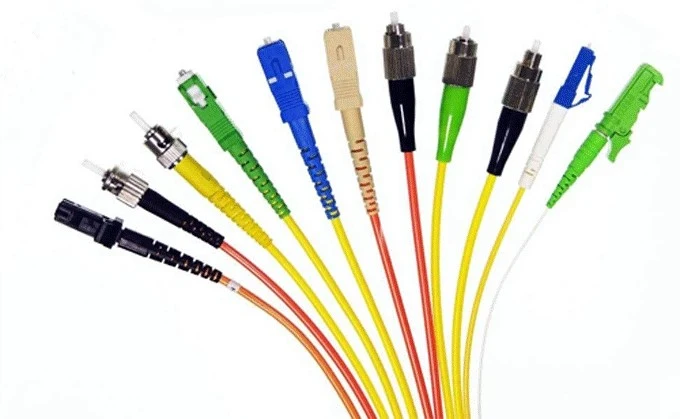

Each color in a fiber pigtail is a silent, instant data point. Here's the standard lexicon you need to know:
• Yellow: The Highway for Long Hauls
The universal color for Single-Mode (SM) fiber. Yellow pigtails are designed for long-distance, high-bandwidth transmission, operating at the 1310nm and 1550nm wavelengths. They are the backbone of telecom networks, FTTH infrastructure, and any application where distance and signal integrity are paramount. When you see yellow, think "distance and precision."
• Orange & Aqua: The Data Center Powerhouses
These colors belong to the Multi-Mode (MM) fiber family, used for short-range, high-speed links.
Orange traditionally denotes OM1 or OM2 fibers.
Aqua (or sometimes Lime Green) is the distinctive marker for laser-optimized OM3 and OM4 fibers. This color-coding is crucial because OM3/OM4 supports 10G, 40G, and even 100G Ethernet over short distances, making it the lifeblood of modern data centers and enterprise backbones.
• Green: The Key to Crystal-Clear Signal
Green typically signifies an APC (Angled Physical Contact) polish on the connector ferrule. The green boot indicates an 8-degree angled endface, which reduces back reflection to less than -65dB. This is non-negotiable for systems sensitive to reflections, such as FTTH PON networks and CATV/video transmission, where signal clarity is everything.
• Blue, Beige, and More: Organizing Complexity

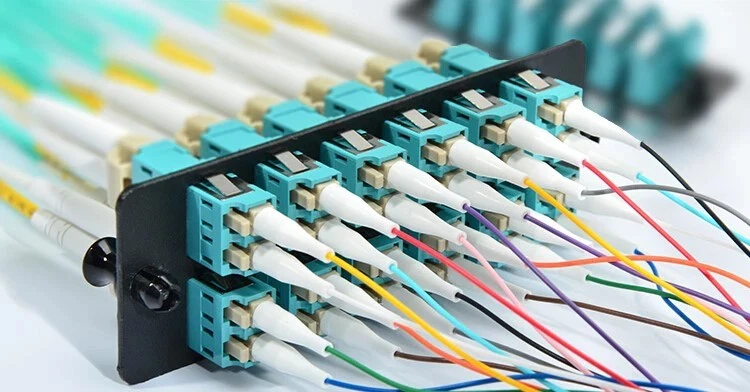

Blue connectors usually indicate a standard UPC (Ultra Physical Contact) polish, common for general applications. Other colors (beige, magenta, etc.) are often used to identify specific fiber strands within a multi-fiber cable or for custom coding in high-density management, allowing technicians to trace connections instantly in complex panels.
Glory's Color Palette: Our product line at Glory is a full expression of this universal language. We manufacture a complete spectrum of pigtails-from the standard yellow SM and aqua OM4 to the specialized green APC-ensuring that every color we deliver corresponds to precise, guaranteed performance specifications.
Beyond Color: The Foundation of Reliability
While color identifies the fiber, the true measure of a pigtail's worth lies in the invisible qualities that ensure signal integrity over years of service.
• The Precision of the Polish: A connector's endface is where the light passes. Imperfections here cause loss and back reflection. Glory employs advanced polishing techniques and 100% end-face inspection to ensure every pigtail meets or exceeds industry standards for Insertion Loss (<0.2dB typical) and Return Loss, guaranteeing optimal light throughput from day one.
• The Durability of the Build: A pigtail must survive hundreds of mating cycles. We use high-grade zirconia ceramic ferrules and robust connector housings (available in LC, SC, FC, ST, and MTP/MPO styles) to ensure superior alignment, mechanical strength, and long-term reliability, even in demanding environments.
• The Assurance of Standards: Every Glory pigtail is born from an ISO 9001 quality-managed process. This systemic commitment means consistency, traceability, and performance you can depend on, turning a simple component into a pillar of network stability.
Choosing the Right Pigtail: A Quick Guide
Matching the right pigtail to your application is straightforward when you follow the logic of color and specification:
Step 1: Single-Mode or Multi-Mode?
For distances beyond 500 meters or telecom/CATV use: Choose Yellow (Single-Mode).
For intra-building or data center links under 500 meters: Choose Aqua (OM3/OM4 Multi-Mode).
Step 2: Which Connector Type?
LC: Small form factor, ideal for high-density switches and panels.
SC: A robust, push-pull standard widely used in ODFs and FTTx.
FC: A threaded design offering excellent stability, common in test equipment and older installations.
MTP/MPO: For parallel optics, connecting 12, 24, or more fibers at once in high-speed data centers.
Step 3: UPC or APC Polish?
Blue (UPC): For general data and telecom links (e.g., connecting network switches).
Green (APC): Mandatory for any PON network (GPON, XG-PON) and analog video/CATV systems to prevent interference.
Step 4: Custom Length & Configuration
Glory provides flexible options, from standard 1-meter lengths to custom-tailored solutions, including fan-out and breakout styles for MPO systems, ensuring a perfect fit for your specific architecture.
Building Confidence, One Connection at a Time
In fiber optics, clarity prevents failure. The color code of fiber pigtails is a fundamental tool for achieving this clarity, enabling faster, error-free installations and smoother maintenance. It transforms a complex infrastructure into a manageable, visual system.
At Glory, we provide more than just colored components. We deliver intelligent, reliable connectivity solutions built on deep industry knowledge and rigorous manufacturing standards. From the clarity of our color coding to the precision of our polish, every detail is engineered to be the most reliable link in your network chain.
Ready to build with clarity and confidence?
Explore Glory's full range of standards-compliant fiber optic pigtails and connect with our technical team to specify the perfect solution for your next project.
