Fiber Wall Outlet

1-Port Fiber Wall Outlet

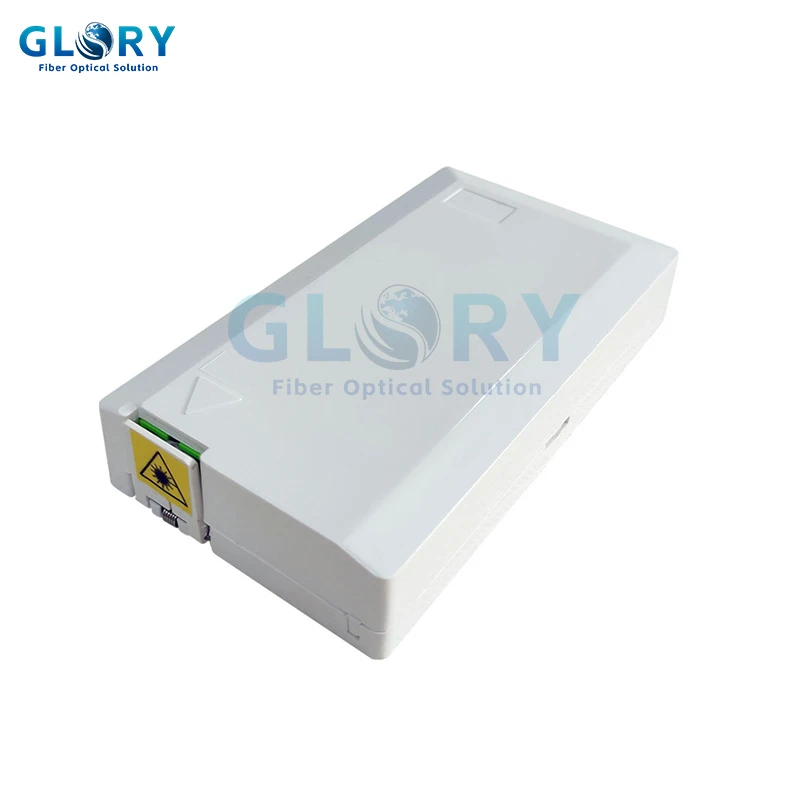

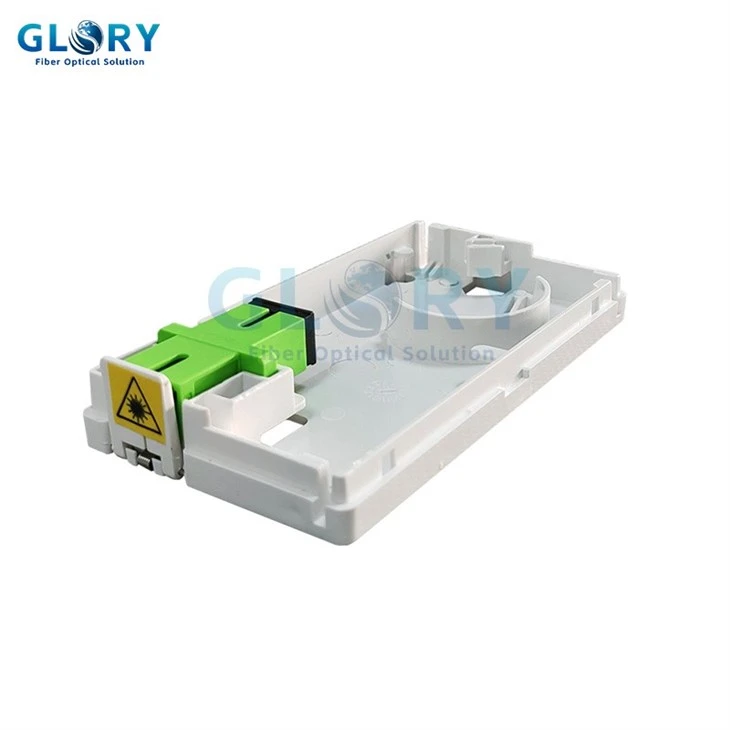

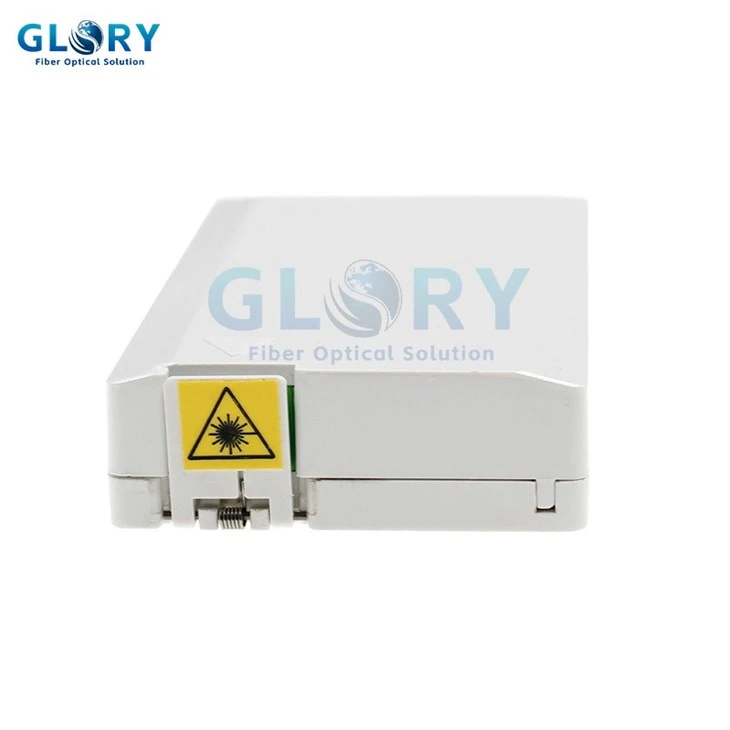

1-Port Fiber Wall Outlet is a compact fiber termination housing designed for efficient cable management in local FTTH deployments and indoor applications. Crafted from UV-resistant PC/ABS plastic, this fiber wall outlet ensures long-lasting protection for fiber optic connections. Its tool-free self-clamping mechanism simplifies installation, while the optimized internal fiber routing structure minimizes signal loss. The fiber wall outlet faceplate features a built-in SC adapter mounting interface, enabling quick and hassle-free installation during operation.



Specification:



Working Temperature	-25～+60°C
Size (H×W×D) mm	90x45x16
Applicable mode	Single mode & Multimode
Storage temperature.	-40～+70°C
Weight (g)	60
Tight buffer diameter	250μm & 900μm
Port	2



Features of Fiber Wall Outlet:



• Dust-proof design with IP-45 Protection level.
• The internal structure is reasonable to meet the requirements of optical fiber bending radius
• Easy and fast operation
• Surface mount design with screws and mounting tabs included

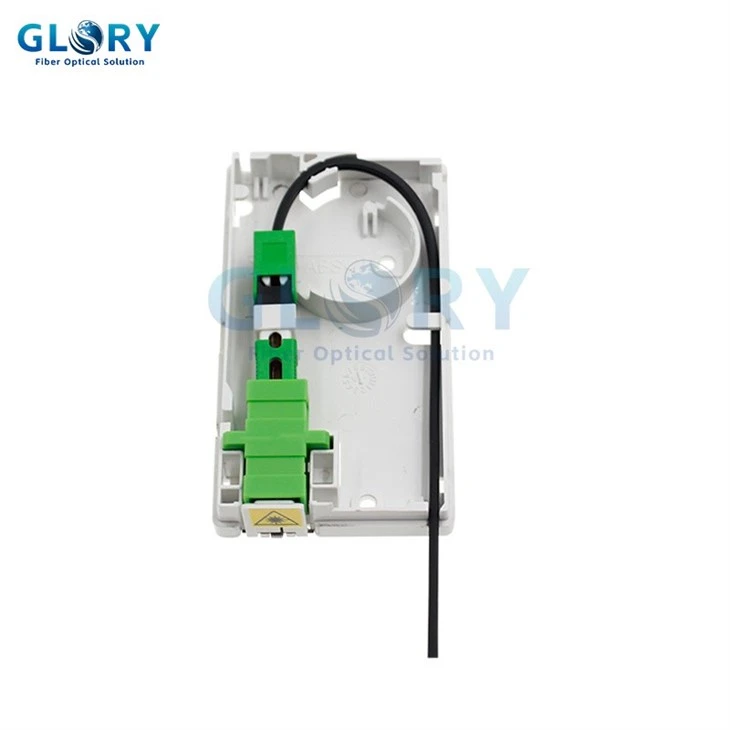

• The fiber pigtail is directly connected to the SC adapter



Application in FTTH/FTTO Deployments:



The fiber wall outlet seamlessly integrates last-mile fiber connectivity in FTTH (fiber to the home) and FTTO (fiber to the office) installations. Its compact design optimizes space utilization in high-density residential areas, office buildings, and multi-dwelling units, while maintaining tight bend radius control to maintain signal integrity. This space-saving solution enables efficient cable management across central switchboards, customer site closets, and in-wall cabling scenarios, minimizing installation time and maintaining ≤0.2dB of insertion loss for superior broadband performance.



FAQs:



Q: What fiber connectors are compatible for the fiber wall outlet?

 A: The fiber wall outlet socket is designed for SC simplex adapters.



Q: How to install the fiber wall outlet?

A: Using provided screws and tabs to fix the box on the wall.



Q: What is the meaning of the yellow triangle on the adapter of fiber wall outlet?

A: It means "Danger/Laser Radiation" or "Invisible Laser Radiation". Inform the user that there is a risk of laser radiation in the area and that protective measures should be taken (e.g., wearing goggles).
