What Is Fiber Distribution Pedestal (FDP) ?

Apr 22, 2025|

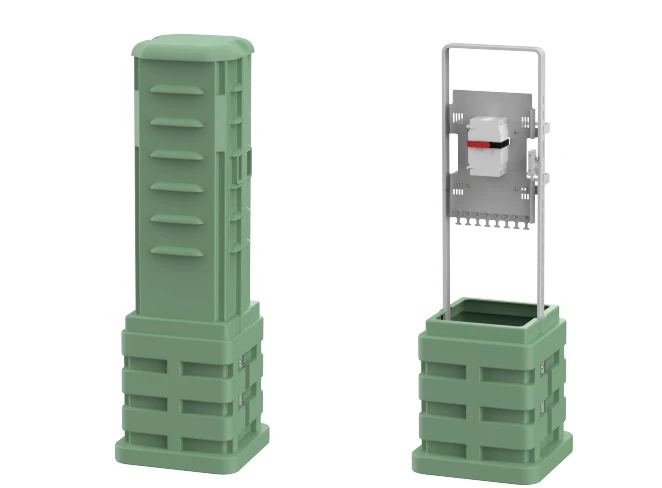

This Fiber Distribution Pedestal (FDP) provides up to a 72-port PON in a direct-bury pedestal. This pedestal provides a cost-effective solution for smaller PON service areas serving up to 72 subscribers, such as low-density rural applications, multiple dwelling units, and other fiber-deep architectures.

The Fiber Distribution Pedestal offers a cost-effective and scalable option for FTTH networks. Direct splicing within the fiber cassettes helps reduce overall installation costs and can eliminate the need for additional splice cases and vaults.

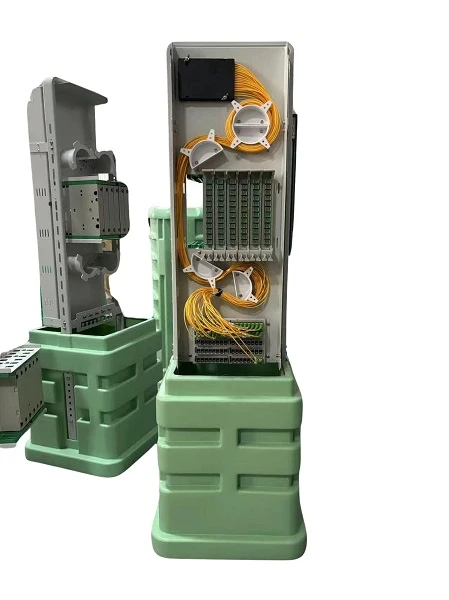

Positioned to accommodate three 1xN splitters, the pedestal interconnects the OLT ports to the splitter inputs. The splitter outputs are then connected to the distribution cassettes.

Model	GL-JZ-09
Type	Green concealed cover
Material Quality	HDPE
Resist UV	1000h
Installation Hole Distance	220mm (adjustable)
Sealing method	Contact Seal
Buried	380mm / 15''
Levels of Protection	IP54
Environmental requirements	ROHS
LOGO	Mold printing/laser marking
Box Body Color	Green

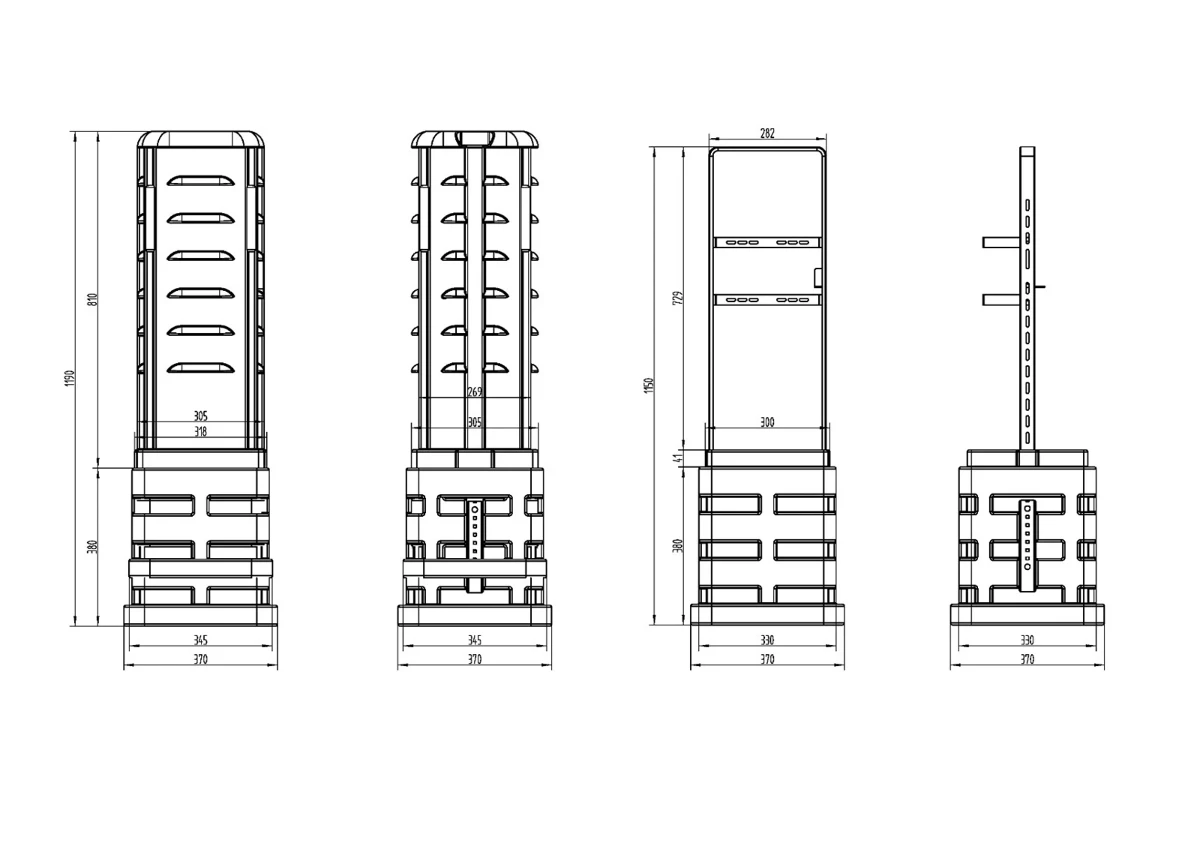

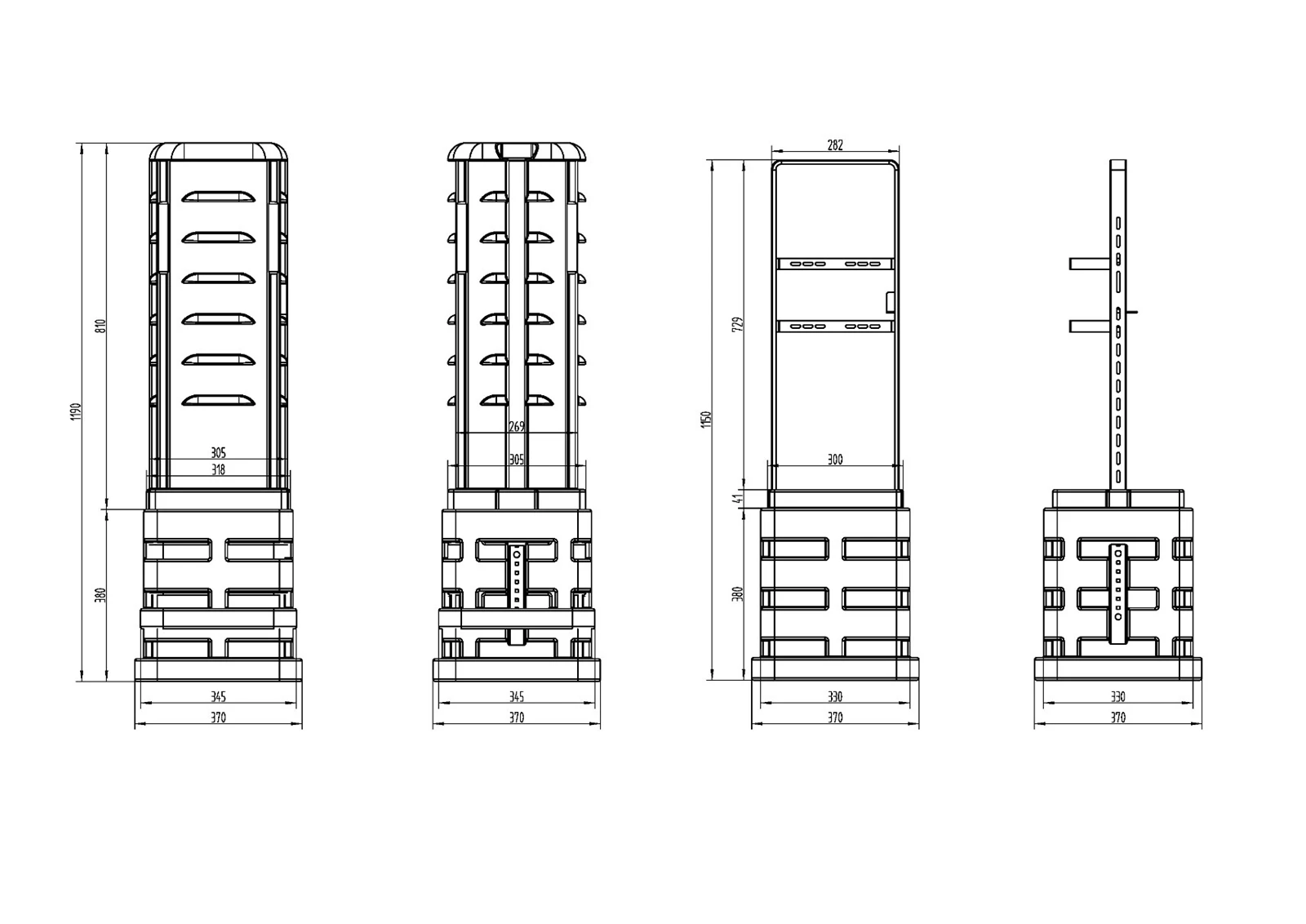

Outline Dimension	370×370×1190mm (±3.0) / 14.56'' X 14.56'' X 46.85''
Operating Temperature	-40℃ ~ + 65℃;
Storage Temperature	-40℃ ~ + 70℃;
Relative Humidity	93% (+ 40℃);
Atmospheric Pressure	70 ~ 106 Kpa
