FTTH Splitter Distribution Box
Model: GL-KSW-48A FTTH Splitter Distribution Box
size:504*374*134mm
Inner Carton size:550*405*160(1pcs)
Outer carton size:565*420*540 (3pcs)
- Product Introduction
GL-KSW-48A Fiber Optical Distribution Box
The main function of GL-KSW-48A FTTH Splitter Distribution Box is adopted by module type splitter structure, and its main function is for splicing, distribution and protection of the fiber optical.
Product Overview
The GL-KSW-48A FTTH Splitter Distribution Box serves as a critical termination and branching point in Fiber-to-the-Home (FTTH) systems, primarily designed for the splicing, distribution, and protection of fiber optic cables. This unit supports the introduction, fixation, and stripping of optical cables, along with facilitating fiber splicing and storing pigtails and patch cords. It is equipped with 12 cable ports, permitting simultaneous top and bottom entry for cable access. With a maximum capacity of 48 cores, the box can accommodate either SC or FC adapters in a modular patching unit design, enhancing flexibility in fiber management.
Key Features
This distribution box is applicable for handling 10-15 distribution cables and 8 figure 3 soft cables. It boasts a maximum capacity where each splice tray supports 24 fibers, allowing for a total maximum capacity of up to 96 fibers. The box can be equipped with 48 SC or FC adapters. Its installation versatility includes both pole-mounting and wall-mounting methods. A buckle-type structure ensures a secure seal and protects the lock. Additionally, custom-made LOGO services are supported for branding purposes.
Industry application scenarios and solutions

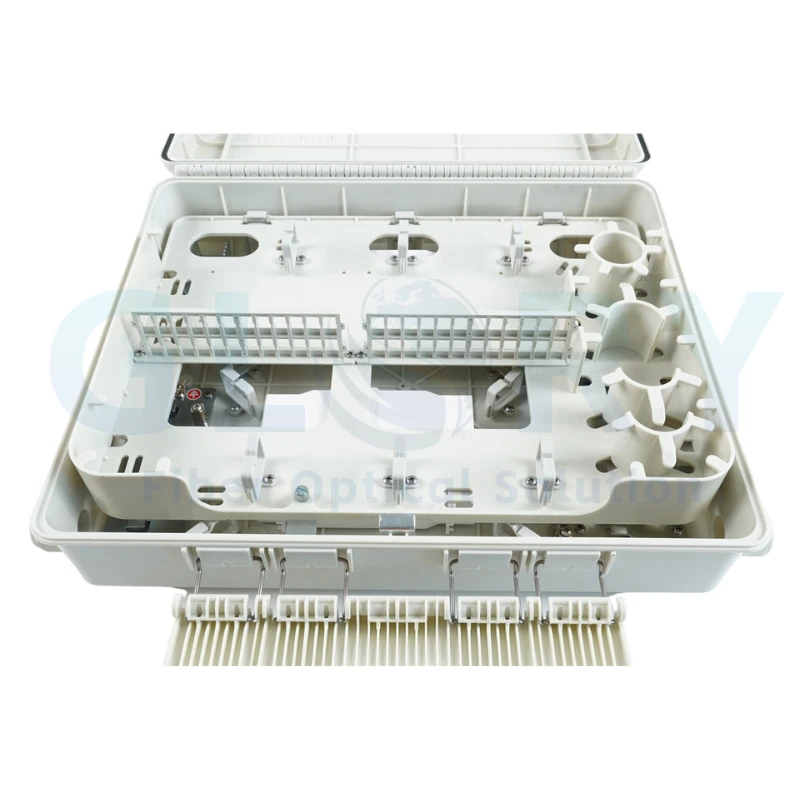

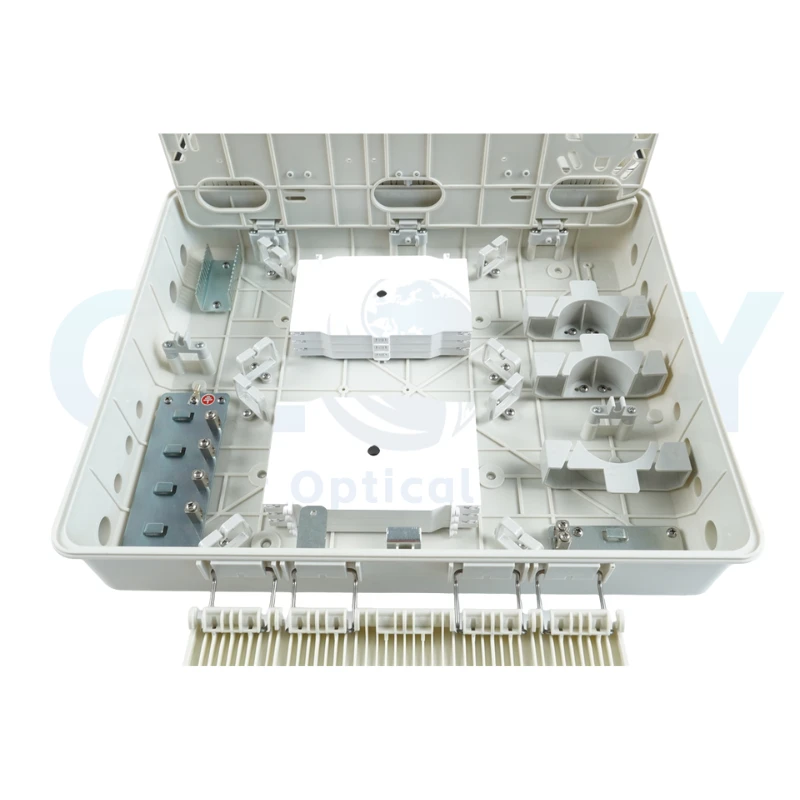

Internal Structure

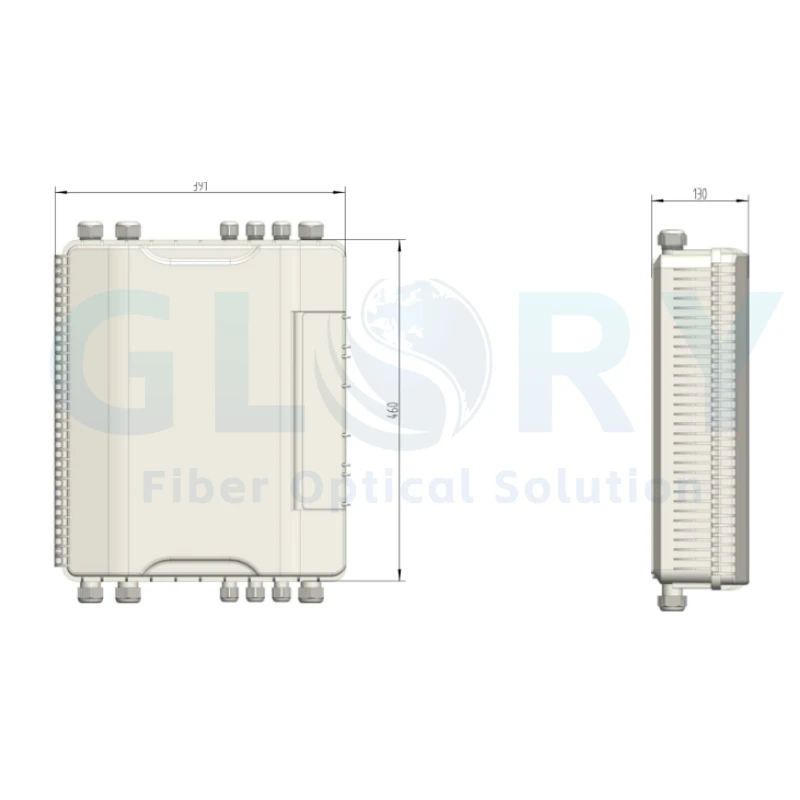

The GF-KSW-48A FTTH Splitter Distribution Box Dimensions are 504 mm in length, 374 mm in width, and 134 mm in height. Weight ranges from 4.8 to 5.2 kg. It has 12 cable entrance ports. Splice tray capacity is 24 fibers, with a maximum splice capacity of 96 fibers. It supports 48 pieces of SC or FC adapters. Drop cable capacity is 48 pieces. IP level is IP55, indicating dust and water resistance. Operation temperature ranges from -40 to +60 degrees Celsius. Atmospheric pressure range is 70 to 106 Kpa.
|
Model No |
GL-KSW-48A |
|
Dimensions |
504(L)×374(W)×134(H) mm |
|
Weight (kg) |
4.8-5.2kg |
|
Cable entrance ports |
12 |
|
Splice tray capacity |
24f |
|
Max splice capacity |
96f |
|
Adaptor |
48pcs SC/FC |
|
Drop cable |
48pcs |
|
IP level |
IP55 |
|
Operation temperature |
-40~+60℃ |
|
Atmospheric pressure |
70~106Kpa |
Package Contents & Accessories
The product comes with a comprehensive set of standard accessories. These include one roll of insulation tape, 3 meters of EVA tube, four bags of splicing protective tubes, 40 nylon cable ties, two unvulcanized sealing tapes, one roll of 4mm winding pipe, four 16-25 hose clamps, one zinc alloy type key, and one magic sticker in black. For wall-mounting, a wall-mounting kit is provided, containing four self-tapping screws, four ST4 * 35 plastic expansions, four M6 big gaskets, four M6 sealing washers, and four M8 * 20 * 5 gaskets.
Packaging Information
The product type is GF-KSW-48A with dimensions of 504 * 374 * 134mm. The inner carton size is 550 * 405 * 160mm and holds one piece. The outer carton size is 565 * 420 * 540mm and holds three pieces.
Service and Support
We extend our gratitude for your support of our company's products. Should you have any questions or suggestions, please do not hesitate to contact us. We are committed to providing you with timely and excellent service.
